NSN 5330-01-419-8598 M28840/24GA, M2884024GA, MIL-C-28840/24

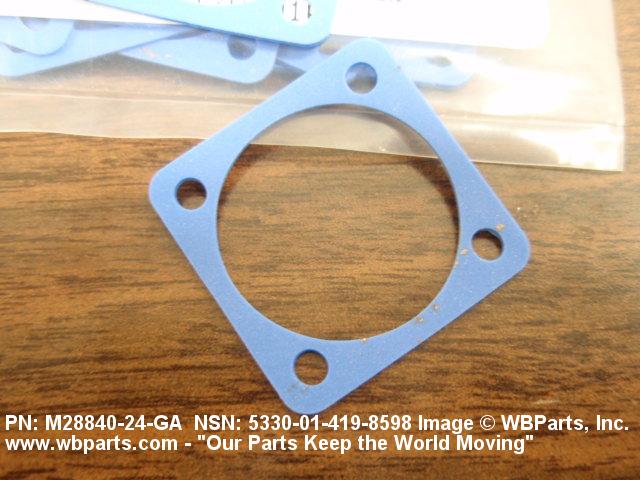

Product Details | GASKET
5330-01-419-8598 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: M28840/24GA, M2884024GA, MIL-C-28840/24, MILC2884024, 10369257 , 5330-01-419-8598, 01-419-8598, 5330014198598, 014198598
Hardware and Abrasives | Packing and Gasket Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 02 OCT 1995 | 01-419-8598 | 04522 ( GASKET ) |
Demand History | NSN 5330-01-419-8598
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5330-01-419-8598 | 2024-05-128 | 100 | DIBBS |
5330-01-419-8598 | 2024-03-67 | 54 | DIBBS |
5330-01-419-8598 | 2024-02-37 | 54 | DIBBS |
5330-01-419-8598 | 2016-01-05 | 56 | DIBBS |
5330-01-419-8598 | 2011-01-21 | 48 | DIBBS |
5330-01-419-8598 | 2010-08-242 | 10 | DIBBS |
M2884024GA | 2010-08-226 | 25 | United States |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5330-01-419-8598
Technical Data | NSN 5330-01-419-8598
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER FLUOROSILICONE CLASS FQ OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25988 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
CROSS-SECTIONAL THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
STYLE DESIGNATOR | B18B NON-CIRCULAR |
HOLE DIAMETER | 0.137 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
OVERALL LENGTH | 1.818 INCHES MINIMUM AND 1.834 INCHES MAXIMUM |
OVERALL WIDTH | 1.818 INCHES MINIMUM AND 1.834 INCHES MAXIMUM |
APERTURE DIAMETER | 1.625 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |
OUTSIDE CORNER RADIUS | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.382 INCHES MINIMUM AND 1.402 INCHES MAXIMUM |
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.382 INCHES MINIMUM AND 1.402 INCHES MAXIMUM |
BOLT HOLE QUANTITY | 4 |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28840/24 |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28840/24GA |
Restrictions/Controls & Freight Information | NSN 5330-01-419-8598
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
Less than car load rating | ||
Less than truck load rating | Q | 70.0 |
Water commodity Code | 596 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
