NSN 5330-01-371-8083 G4747922, G474792-2 , GTS00038W1P3
Product Details | GASKET
5330-01-371-8083 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: G4747922, G474792-2 , GTS00038W1P3, GTS-00038-W1P3, 6549902, 654990-2, 70056802, 7005680-2, 5330-01-371-8083, 01-371-8083, 5330013718083, 013718083
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1993 | 01-371-8083 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-371-8083
Demand History | NSN 5330-01-371-8083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-371-8083 | 2024-10-281 | 15 | ES |
| 5330-01-371-8083 | 2024-08-225 | 15 | US |
| 5330-01-371-8083 | 2024-08-218 | 79 | DIBBS |
| 5330-01-371-8083 | 2024-07-205 | 79 | DIBBS |
| 5330-01-371-8083 | 2024-07-200 | 15 | US |
| 5330-01-371-8083 | 2023-01-12 | 50 | DIBBS |
| 5330-01-371-8083 | 2022-08-221 | 125 | DIBBS |
| 5330-01-371-8083 | 2021-06-158 | 341 | DIBBS |
| 5330-01-371-8083 | 2021-05-147 | 341 | DIBBS |
| 5330-01-371-8083 | 2020-10-302 | 208 | DIBBS |
| 5330-01-371-8083 | 2020-10-282 | 208 | DIBBS |
| 5330-01-371-8083 | 2020-08-233 | 19 | DIBBS |
| 5330-01-371-8083 | 2020-08-231 | 19 | DIBBS |
| 5330-01-371-8083 | 2020-07-211 | 19 | DIBBS |
| 5330-01-371-8083 | 2019-04-93 | 254 | DIBBS |
| 5330-01-371-8083 | 2018-11-306 | 180 | DIBBS |
| 5330-01-371-8083 | 2018-10-298 | 180 | DIBBS |
| 5330-01-371-8083 | 2017-06-172 | 113 | DIBBS |
| 5330-01-371-8083 | 2017-06-164 | 113 | DIBBS |
| 5330-01-371-8083 | 2016-10-278 | 104 | DIBBS |
| 5330-01-371-8083 | 2016-03-70 | 108 | DIBBS |
| 5330-01-371-8083 | 2012-02-40 | 143 | DIBBS |
| 5330-01-371-8083 | 2012-02-34 | 130 | DIBBS |
| 5330-01-371-8083 | 2011-12-342 | 47 | DIBBS |
| 5330-01-371-8083 | 2011-07-202 | 50 | DIBBS |
Cross Reference | NSN 5330-01-371-8083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 654990-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 654990-2 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 7005680-2 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| G474792-2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G474792-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| GTS-00038-W1P3 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-371-8083
Related Products | NSN 5330-01-371-8083
Technical Data | NSN 5330-01-371-8083
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.035 INCHES NOMINAL |

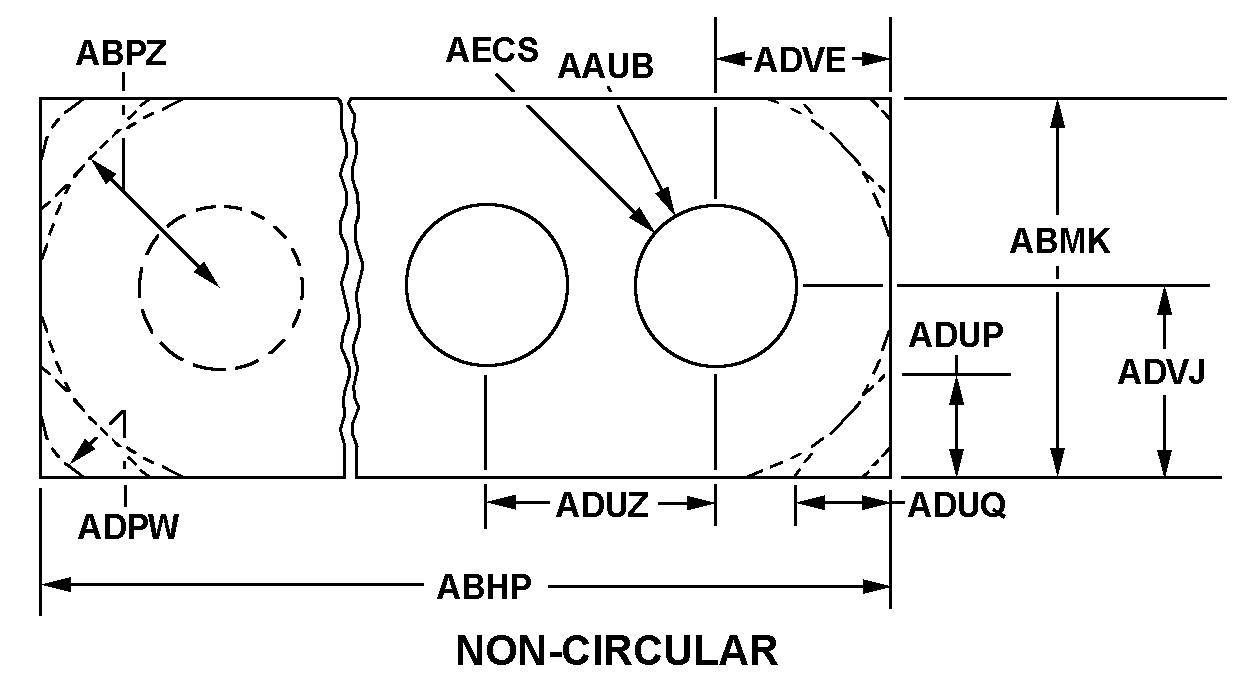

| STYLE DESIGNATOR | B19B NON-CIRCULAR |
| HOLE DIAMETER | 0.031 INCHES NOMINAL |
| OVERALL LENGTH | 0.984 INCHES NOMINAL |
| OVERALL WIDTH | 0.328 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.100 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.108 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.119 INCHES NOMINAL |
| BOLT HOLE CENTERLINE TO NEAREST EDGE DISTANCE | 0.108 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 15 |
| SPECIAL FEATURES | THERE ARE TWO LINES OF THRU HOLES,8 ON THE FIRST LINE,7 ON THE SECONDLINE. DIMS ARE DESCRIBED IN THE STYL PAC. 0.112 IN. BTWN 1ST AND 2ND LINE OF THRU HOLES |
| III END ITEM IDENTIFICATION | P/N 3819500 AND 3819505;AMRAAM MISSLE |
Restrictions/Controls & Freight Information | NSN 5330-01-371-8083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-371-8083
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AL | TG:ADVANCE MEDIUM RANGE AIR-TO-AIR MISSILE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
