NSN 5330-01-354-2531 MS3576911, MS35769-11, AS3576911
Product Details | GASKET
5330-01-354-2531 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: MS3576911, MS35769-11, AS3576911, AS35769-11, BPK2894, BPK-2894, CFR40486 NON-ASBESTOS, CFR40486NONASBESTOS, SC200940, SCM3576911, SCM35769-11, Z00.N7422065711, Z00N7422065711, LS5956-10 NON-ASBESTOS, LS595610NONASBESTOS, PK159, PK-159, 15314027, 15-3140-27, 8065, 5330-01-354-2531, 01-354-2531, 5330013542531, 013542531
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 FEB 1992 | 01-354-2531 | 04522 ( GASKET ) |

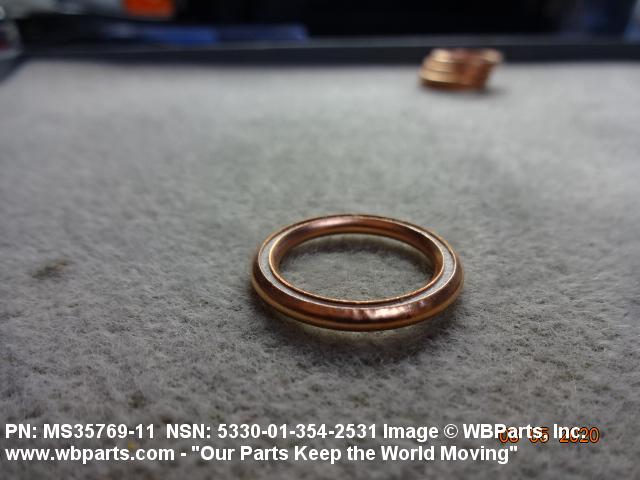

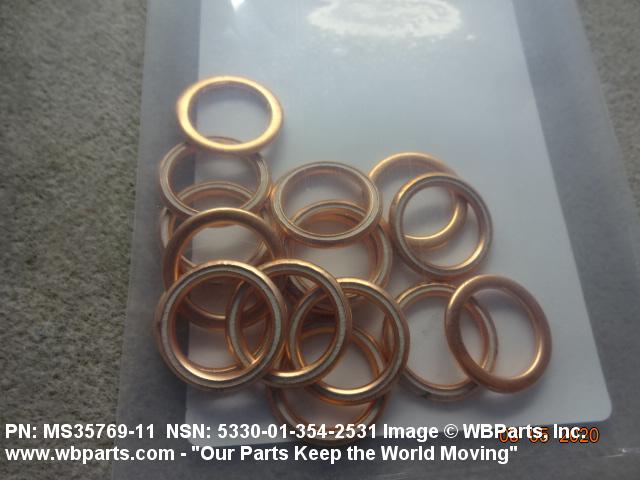

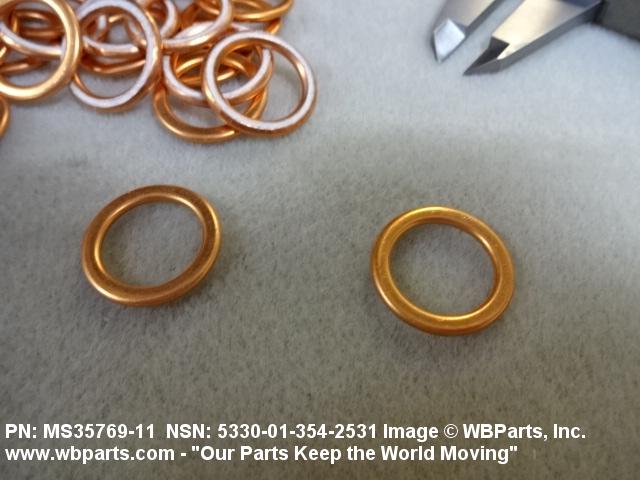

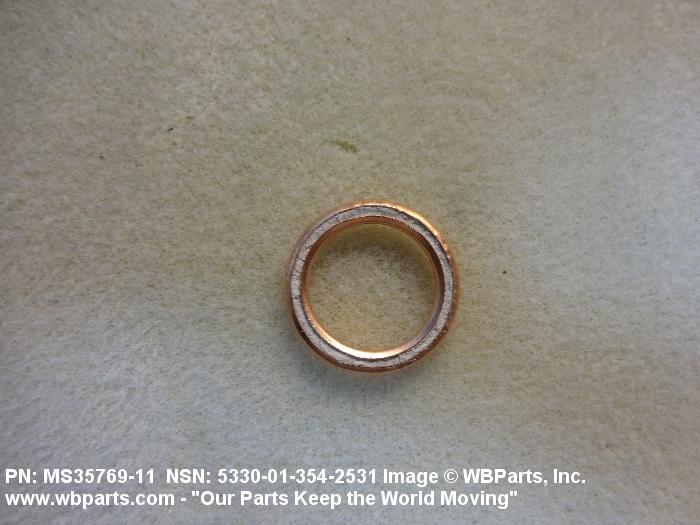

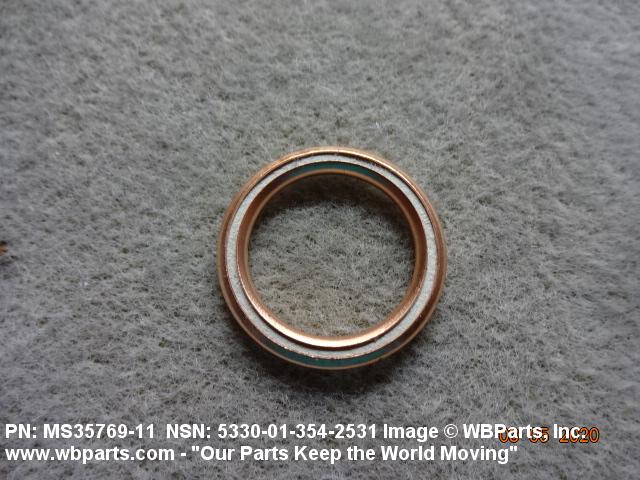

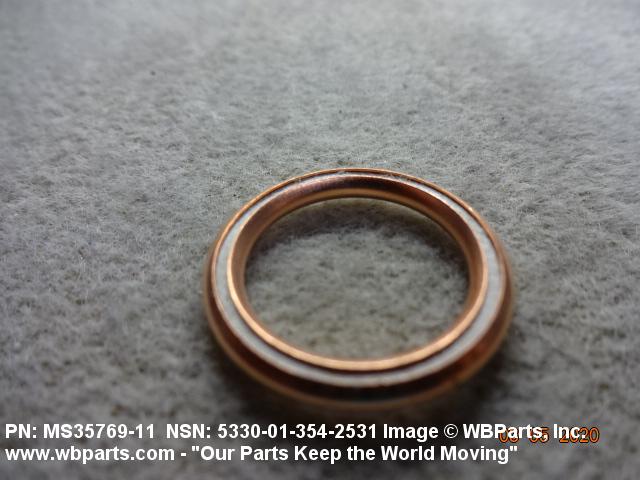

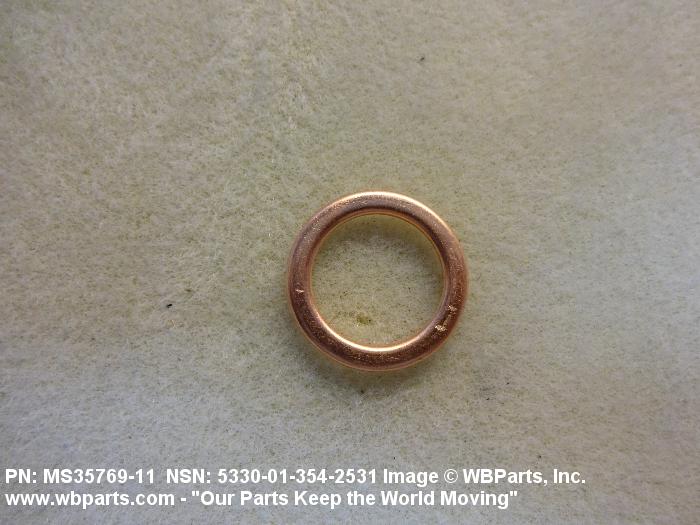

Drawings & Photos | NSN 5330-01-354-2531
Demand History | NSN 5330-01-354-2531
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3576911 | 2024-03-80 | 20 | US |
| MS3576911 | 2024-03-80 | 20 | US |
| 5330-01-354-2531 | 2024-02-52 | 4 | US |
| 5330-01-354-2531 | 2022-09-244 | 113 | DIBBS |
| 5330-01-354-2531 | 2018-02-37 | 10 | CA |
| 5330-01-354-2531 | 2017-11-317 | 12 | Australia |
| AS3576911 | 2017-09-261 | 250 | US |
| 5330-01-354-2531 | 2017-09-257 | 10 | TR |
| 5330-01-354-2531 | 2016-08-235 | 20 | United States |
| 5330-01-354-2531 | 2016-08-235 | 20 | United States |
| 5330-01-354-2531 | 2016-08-235 | 10 | United States |
| AS3576911 | 2014-12-365 | 10 | United States |
| MS3576911 | 2014-09-262 | 1 | US |
| MS3576911 | 2014-01-13 | 10 | South Korea |
| 5330-01-354-2531 | 2013-06-162 | 536 | DIBBS |
| 5330-01-354-2531 | 2013-05-141 | 20 | DIBBS |
| 5330-01-354-2531 | 2013-04-113 | 640 | DIBBS |
| 5330-01-354-2531 | 2012-10-277 | 640 | DIBBS |
| MS35769-11 | 2012-07-187 | 20 | KR |
| MS35769-11 | 2012-03-88 | 1023 | United States |
| MS3576911 | 2012-02-38 | 100 | AR |
| 5330-01-354-2531 | 2012-02-38 | 100 | MANUAL |
| MS35769-11 | 2012-02-38 | 100 | US |
| 5330-01-354-2531 | 2012-02-34 | 100 | AR |
| 5330-01-354-2531 | 2011-10-304 | 11 | MANUAL |
| MS35769-11 | 2011-10-304 | 11 | KR |
| 5330-01-354-2531 | 2011-01-25 | 8 | US |
| MS3576911 | 2010-12-341 | 5 | us |
| 5330-01-354-2531 | 2010-09-264 | 50 | Portugal |
| 5330-01-354-2531 | 2009-04-105 | 10 | BA |
Cross Reference | NSN 5330-01-354-2531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15-3140-27 | 42280 | NASH ENGINEERING COMPANY INC THE |
| 5330008159489 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8065 | 22593 | FITZGERALD GASKET A CO OF TANNETICS INC |
| AS35769-11 | 0ZBE8 | TRIMAN INDUSTRIES INC |
| AS35769-11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS35769-11 | 8A623 | OGS INDUSTRIES, INC DBA OHIO GASKET & SHIM CO |
| BPK-2894 | 42280 | NASH ENGINEERING COMPANY INC THE |
| BPK-2894 | 8A623 | OGS INDUSTRIES, INC DBA OHIO GASKET & SHIM CO |
| CFR40486 NON-ASBESTOS | 82254 | CURTIS DYNA-FOG, LTD. |
| LS5956-10 NON-ASBESTOS | 59789 | KIRKHILL AIRCRAFT PARTS CO. DBA KAPCO |
| LS5956-10 NON-ASBESTOS | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS35769-11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS35769-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PK-159 | 42280 | NASH ENGINEERING COMPANY INC THE |
| SC200940 | 63728 | SEALCRAFT CORPORATION |
| SCM35769-11 | 63729 | CANTY J M ASSOCIATES INC HYPERBARIC ENGINEERS |
| Z00.N7422065711 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-354-2531
Related Products | NSN 5330-01-354-2531
Technical Data | NSN 5330-01-354-2531
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER CASE FIBER NONASBESTOS AND ASPHALT AND RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | HH-G-101 FED SPEC SINGLE MATERIAL RESPONSE CASE HH-G-101,TYPE 3 FED SPEC ALL MATERIAL RESPONSES CORE |

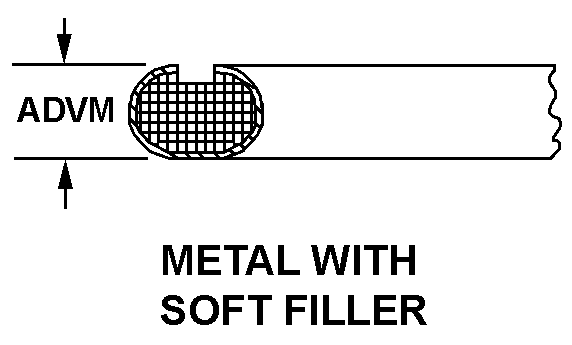

| CROSS-SECTIONAL SHAPE STYLE | F35 METAL WITH SOFT FILLER |

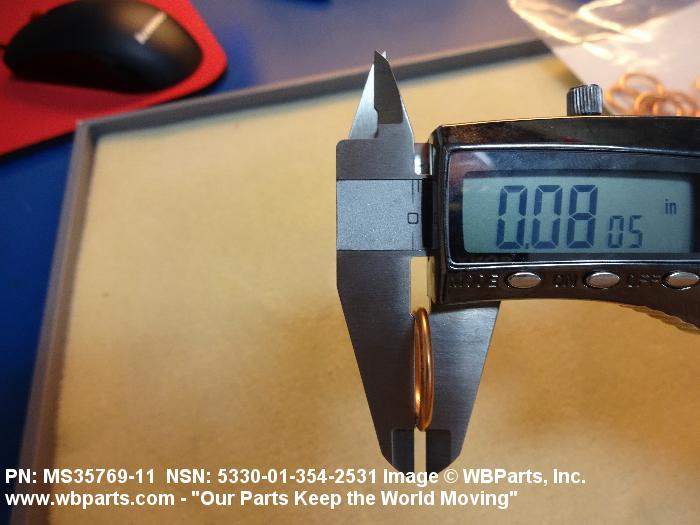

| CROSS-SECTIONAL THICKNESS | 0.078 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

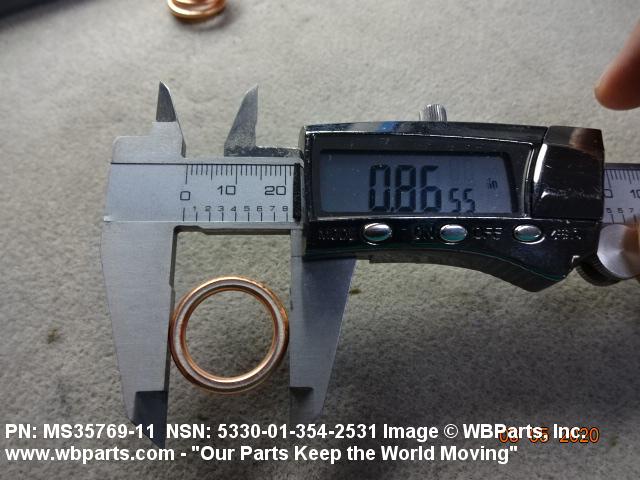

| OUTSIDE DIAMETER | 0.859 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |

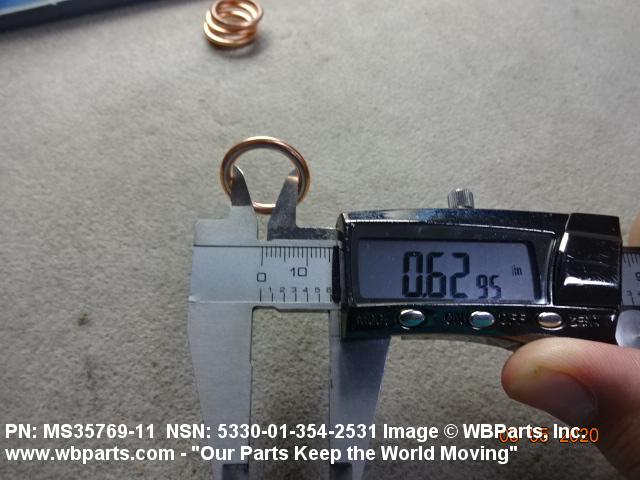

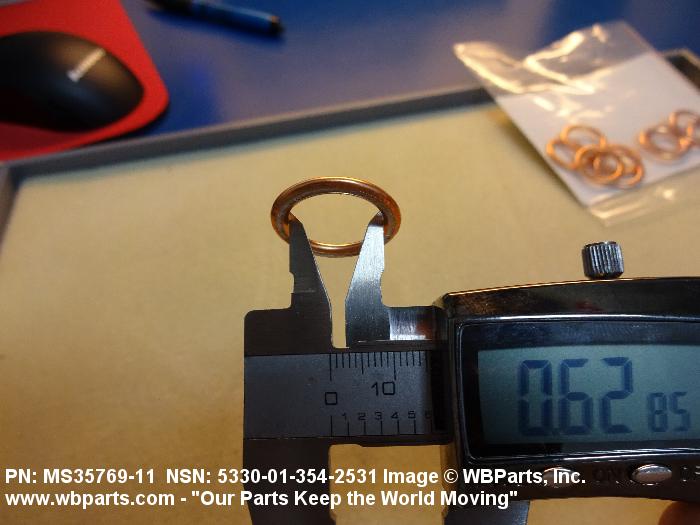

| APERTURE DIAMETER | 0.625 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| SPECIAL FEATURES | AS DIFFERENTIATED BY FILLER OF NON-ASBESTOS MATERIAL |
| CRITICALITY CODE JUSTIFICATION | MATT |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
| III MAXIMUM PRESSURE RATING | 200.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5330-01-354-2531
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-354-2531
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
