NSN 5330-01-317-1834 4847473, 01-317-1834, 013171834
Product Details | GASKET
5330-01-317-1834 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 4847473, 5330-01-317-1834, 01-317-1834, 5330013171834, 013171834
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAR 1990 | 01-317-1834 | 04522 ( GASKET ) |

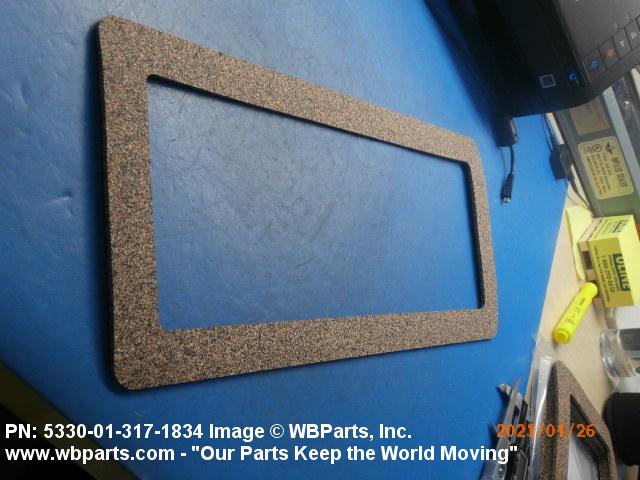

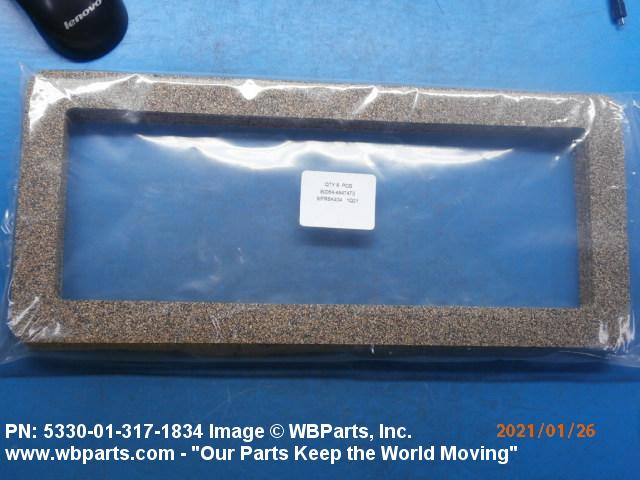

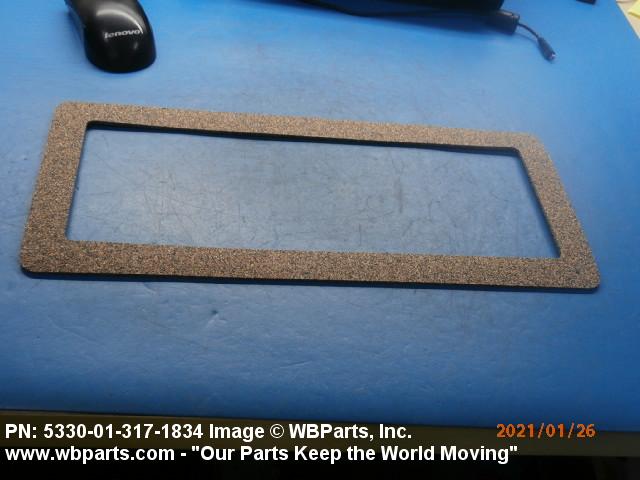

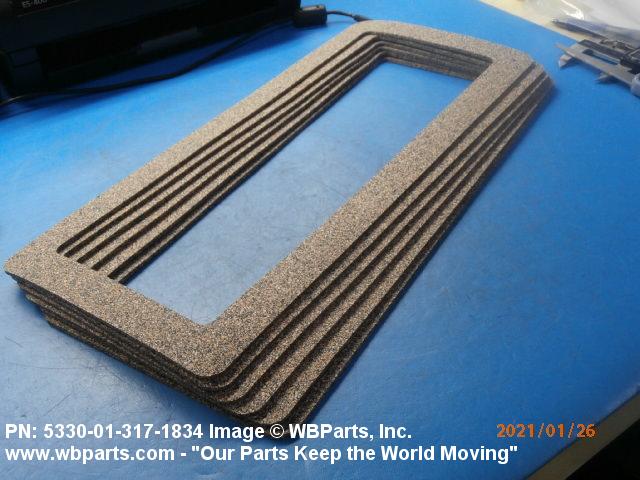

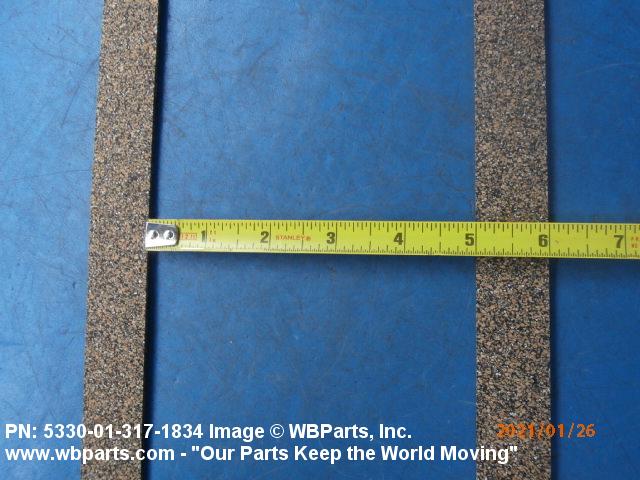

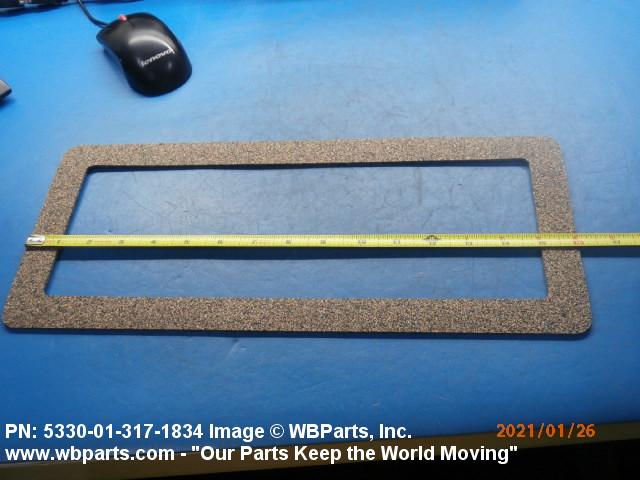

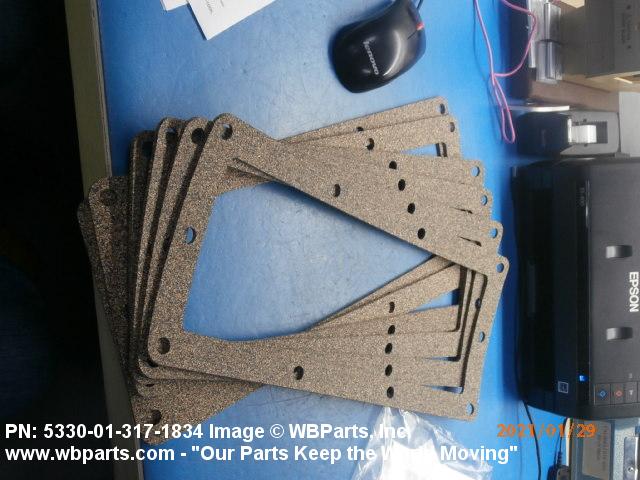

Drawings & Photos | NSN 5330-01-317-1834
Demand History | NSN 5330-01-317-1834
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-317-1834 | 2024-05-151 | 113 | DIBBS |
| 5330-01-317-1834 | 2023-03-67 | 193 | DIBBS |
| 5330-01-317-1834 | 2021-10-287 | 137 | DIBBS |
| 5330-01-317-1834 | 2020-12-357 | 78 | DIBBS |
| 5330-01-317-1834 | 2020-10-281 | 6 | United States |
| 5330-01-317-1834 | 2020-01-30 | 33 | DIBBS |
| 5330-01-317-1834 | 2020-01-07 | 33 | DIBBS |
| 5330-01-317-1834 | 2019-11-318 | 33 | DIBBS |
| 5330-01-317-1834 | 2015-03-63 | 123 | DIBBS |
| 5330-01-317-1834 | 2013-01-04 | 146 | DIBBS |
| 5330-01-317-1834 | 2012-10-303 | 77 | DIBBS |
| 5330-01-317-1834 | 2011-04-100 | 80 | DIBBS |
| 5330-01-317-1834 | 2011-03-75 | 3 | United States |
| 5330-01-317-1834 | 2010-09-253 | 29 | DIBBS |
| 5330-01-317-1834 | 2010-07-183 | 35 | DIBBS |
| 5330-01-317-1834 | 2010-04-103 | 6 | DIBBS |
| 5330-01-317-1834 | 2009-11-322 | 9 | DIBBS |
| 5330-01-317-1834 | 2009-10-282 | 40 | DIBBS |
Cross Reference | NSN 5330-01-317-1834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4847473 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-317-1834
Technical Data | NSN 5330-01-317-1834
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC AND CORK OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ACCOPAC CS-301,CAGEC 03938 MFR REF SINGLE MATERIAL RESPONSE OR MIL-C-6183 TY 11 CL 2 GR C MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

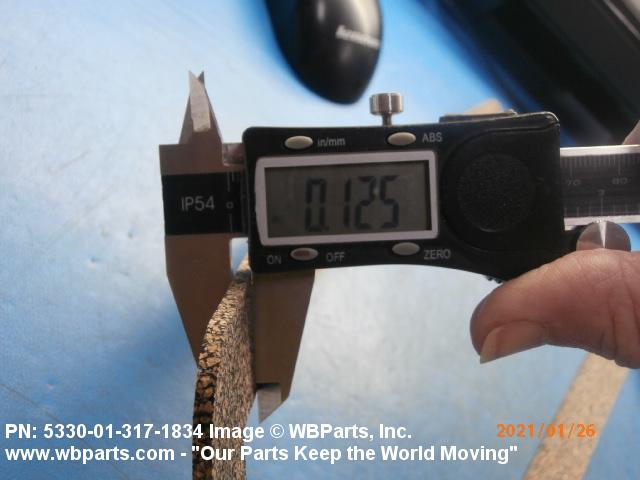

| CROSS-SECTIONAL THICKNESS | 0.120 INCHES NOMINAL |
| STYLE DESIGNATOR | B12A NON-CIRCULAR |

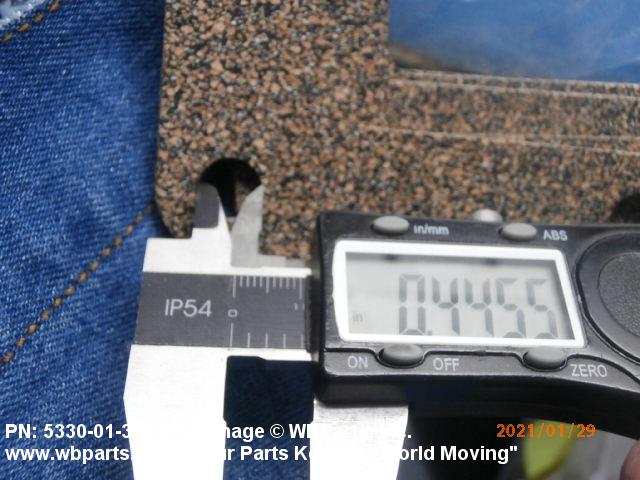

| HOLE DIAMETER | 0.438 INCHES NOMINAL |

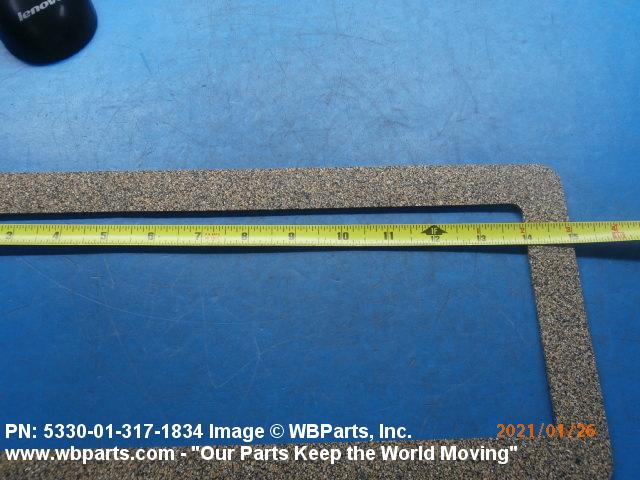

| OVERALL LENGTH | 16.000 INCHES NOMINAL |

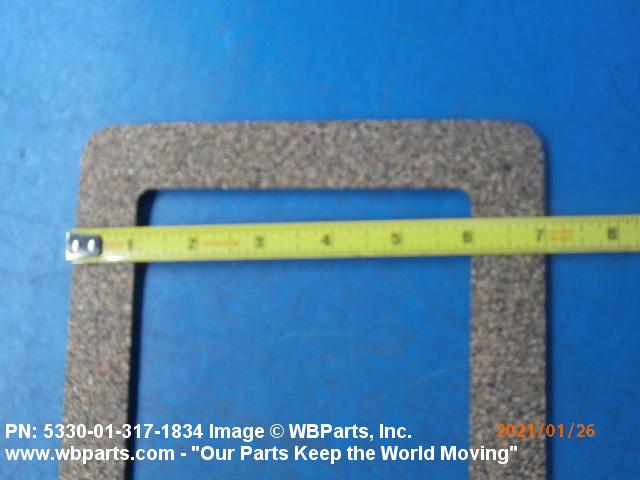

| OVERALL WIDTH | 7.000 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.250 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.500 INCHES NOMINAL |
| APERTURE WIDTH | 5.000 INCHES NOMINAL |
| APERTURE LENGTH | 14.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 5.000 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.500 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.500 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 10 |
Restrictions/Controls & Freight Information | NSN 5330-01-317-1834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-317-1834
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
