NSN 5330-01-199-5904 M1D6S6525, M1-D6-S6-525, RW4/790214
Product Details | PLAIN SEAL
5330-01-199-5904 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: M1D6S6525, M1-D6-S6-525, RW4/790214, RW4/790214-1, RW4790214, RW47902141, 23X3073, 5330-01-199-5904, 01-199-5904, 5330011995904, 011995904
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JAN 1985 | 01-199-5904 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-01-199-5904
Cross Reference | NSN 5330-01-199-5904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23X3073 | 73680 | GARLOCK SEALING TECHNOLOGIES LLC DBA GARLOCK SEALING TECHNOLOGIES |
| M1-D6-S6-525 | U2164 | JAMES WALKER & CO LTD |
| RW4/790214 | K0524 | DAVID BROWN SPECIAL PRODUCTS LTD |
| RW4/790214 | K2182 | DAVID BROWN GEAR SYSTEMS LTD |
| RW4/790214-1 | K0524 | DAVID BROWN SPECIAL PRODUCTS LTD |
| RW4/790214-1 | K2182 | DAVID BROWN GEAR SYSTEMS LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-199-5904
Technical Data | NSN 5330-01-199-5904
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| CONSTRUCTION | SPLIT |

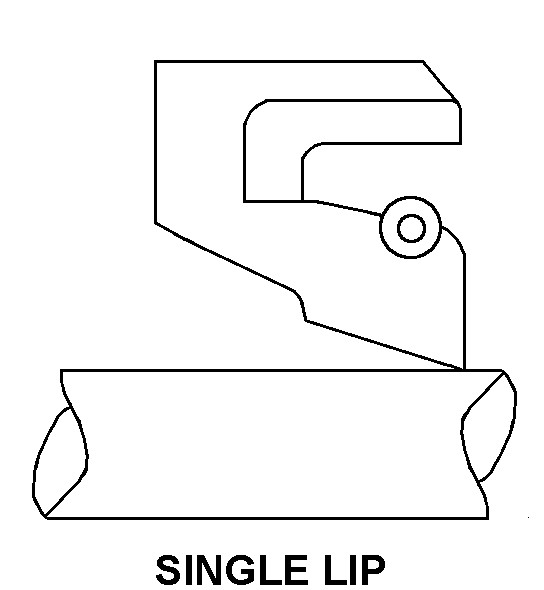

| CROSS-SECTIONAL SHAPE STYLE | L14 SINGLE LIP |
| SEAL WIDTH | 1.500 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 5.250 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 6.750 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON WMEC 270 FT CLASS A U. S. COAST GUARD VESSELS |
| III END ITEM IDENTIFICATION | MAIN REDUCTION GEAR ON BOARD 270 FT. WMEC COAST GUARD VESSELS |
| MANUFACTURERS CODE | K0524 |
| DESIGN CONTROL REFERENCE | RW4/790214 |
Restrictions/Controls & Freight Information | NSN 5330-01-199-5904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-199-5904
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
