NSN 5330-01-181-9663 2005243X7353, 2005-243-X7353, 217203
Product Details | PLAIN SEAL
5330-01-181-9663 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: 2005243X7353, 2005-243-X7353, 217203, 5330-01-181-9663, 01-181-9663, 5330011819663, 011819663
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JUN 1984 | 01-181-9663 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-01-181-9663
Demand History | NSN 5330-01-181-9663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| X7353 | 2024-07-190 | 70 | DIBBS |
| X7353 | 2024-06-179 | 70 | DIBBS |
| X7353 | 2024-01-11 | 14 | DIBBS |
| 2005-243-X7353 | 2023-09-262 | 66 | DIBBS |
| 2005-243-X7353 | 2023-09-247 | 66 | DIBBS |
| 2005-243-X7353 | 2023-06-170 | 12 | DIBBS |
| 2005-243-X7353 | 2023-03-75 | 13 | DIBBS |
| 2005-243-X7353 | 2023-01-12 | 7 | DIBBS |
| 2005-243-X7353 | 2022-11-307 | 27 | DIBBS |
| 2005-243-X7353 | 2022-08-220 | 39 | DIBBS |
| 2005-243-X7353 | 2022-07-205 | 39 | DIBBS |
| 2005-243-X7353 | 2021-06-166 | 51 | DIBBS |
| 2005-243-X7353 | 2021-05-151 | 51 | DIBBS |
| 2005-243-X7353 | 2020-09-261 | 43 | DIBBS |
| 2005-243-X7353 | 2020-09-246 | 43 | DIBBS |
| 5330-01-181-9663 | 2018-03-63 | 112 | DIBBS |
| 5330-01-181-9663 | 2017-07-201 | 7 | DIBBS |
| 5330-01-181-9663 | 2017-05-128 | 25 | DIBBS |
| 5330-01-181-9663 | 2016-05-151 | 37 | DIBBS |
| 5330-01-181-9663 | 2016-03-67 | 32 | DIBBS |
| 5330-01-181-9663 | 2015-03-61 | 98 | DIBBS |
| 5330-01-181-9663 | 2014-12-351 | 42 | DIBBS |
| 5330-01-181-9663 | 2012-08-241 | 0 | DIBBS |
| 5330-01-181-9663 | 2012-05-135 | 71 | DIBBS |
| 5330-01-181-9663 | 2009-06-180 | 204 | DIBBS |
| 5330-01-181-9663 | 2008-09-269 | 53 | DIBBS |
| 5330-01-181-9663 | 2008-04-119 | 108 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-181-9663
Related Products | NSN 5330-01-181-9663
Technical Data | NSN 5330-01-181-9663
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE RETAINER STEEL COMP 302 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3651 ASSN STD SINGLE MATERIAL RESPONSE RETAINER QQ-W-423 TYPE 302 FED SPEC SINGLE MATERIAL RESPONSE SPRING |
| CONSTRUCTION | SOLID |

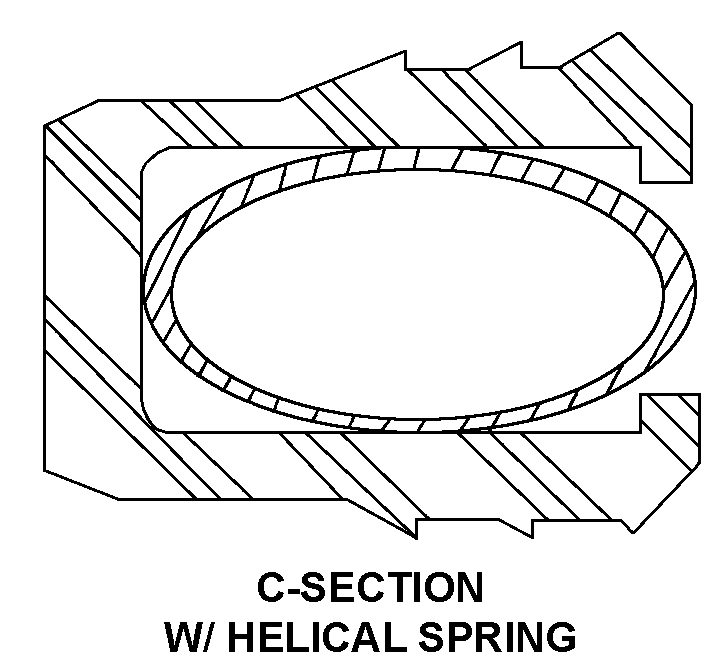

| CROSS-SECTIONAL SHAPE STYLE | L29 C-SECTION W/HELICAL SPRING |
| SEAL WIDTH | 0.161 INCHES MINIMUM AND 0.177 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 4.119 INCHES MINIMUM AND 4.131 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 4.369 INCHES MINIMUM AND 4.381 INCHES MAXIMUM |
| SPECIAL FEATURES | USED ON PRATT & WHITNEY JET ENGINES & COMPONENTS,F-100-P-100 |
| MANUFACTURERS CODE | 59875 |
| MFR SOURCE CONTROLLING REFERENCE | 217203 |
Restrictions/Controls & Freight Information | NSN 5330-01-181-9663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-181-9663
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
