NSN 5330-01-181-9023 12304676-2, 01-181-9023, 123046762
Product Details | PREFORMED MECHANICAL FELT
5330-01-181-9023 An item manufactured to predetermined dimensions. It is either a precut strip or an item of various peripheral shapes and may contain bolt hole(s). It is used as a seal, wiper, mounting pad or for similar purposes. Excludes GASKET and PACKING PREFORMED.
Part Alternates: 12304676-2, 5330-01-181-9023, 01-181-9023, 5330011819023, 123046762, 011819023
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUN 1984 | 01-181-9023 | 18443 ( FELT, MECHANICAL, PREFORMED ) |

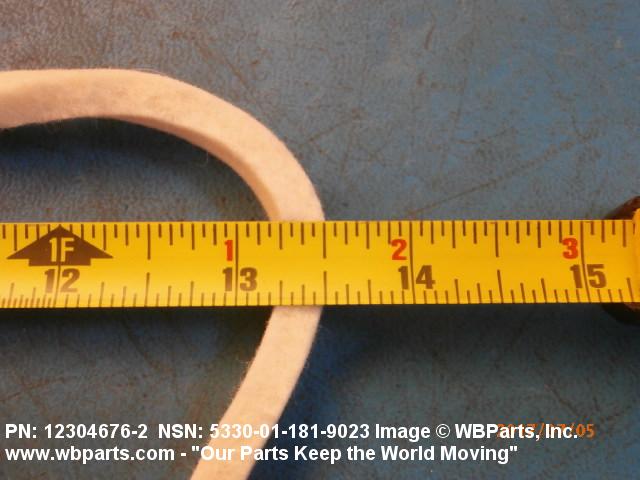

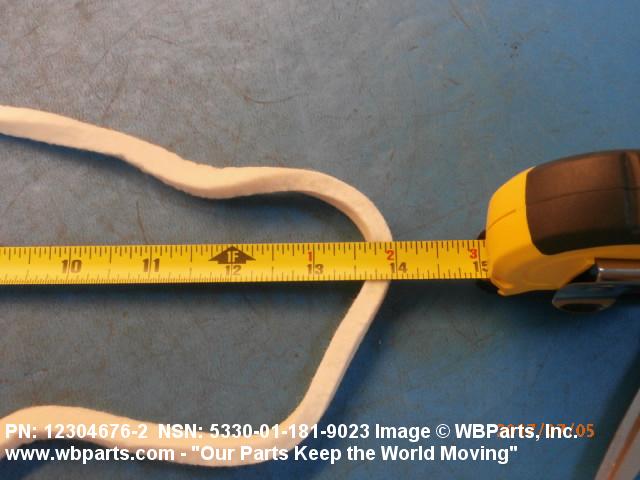

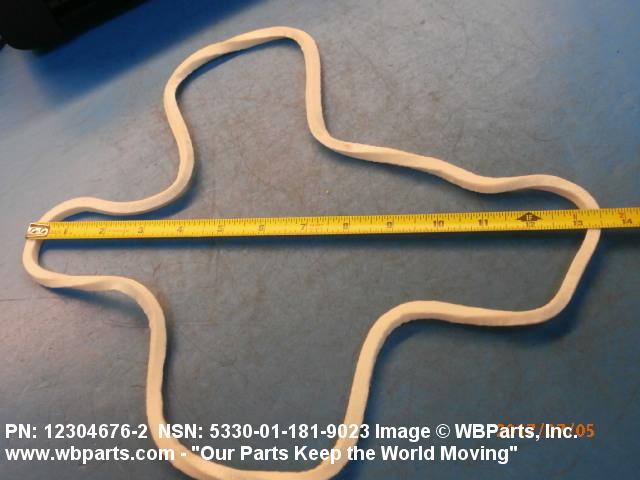

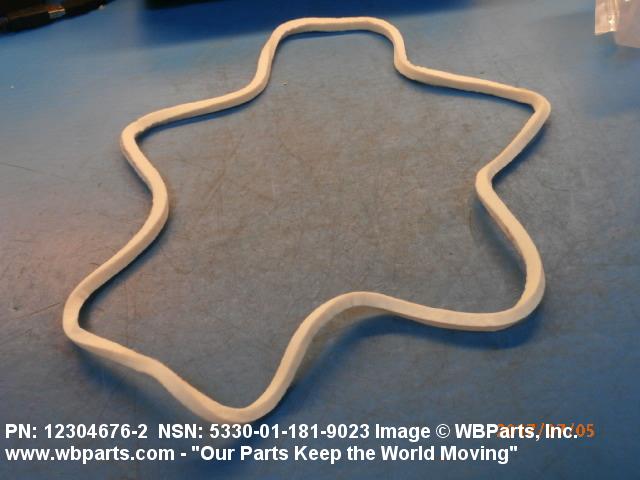

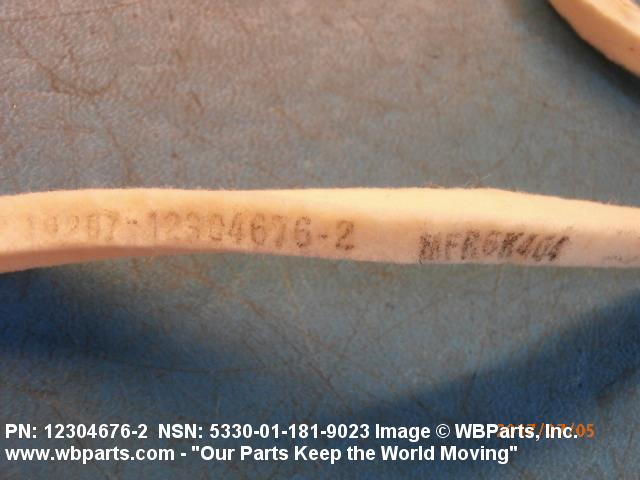

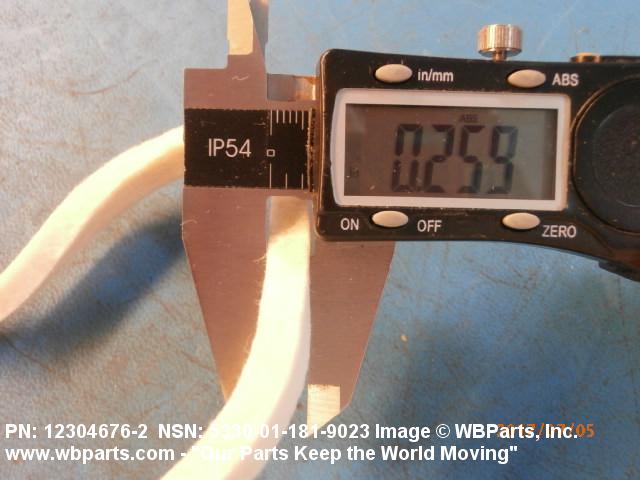

Drawings & Photos | NSN 5330-01-181-9023
Demand History | NSN 5330-01-181-9023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12304676-2 | 2017-09-262 | 1 | |
| 5330-01-181-9023 | 2017-09-262 | 1 | DIBBS-KIT |
| 5330-01-181-9023 | 2017-09-247 | 100 | DIBBS |
| 011819023 | 2017-06-181 | 10 | United States |
| 5330-01-181-9023 | 2015-10-302 | 169 | DIBBS |
| 5330-01-181-9023 | 2015-09-250 | 169 | DIBBS |
| 5330-01-181-9023 | 2008-10-288 | 117 | DIBBS |
Cross Reference | NSN 5330-01-181-9023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12304676-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-181-9023
Related Products | NSN 5330-01-181-9023
Technical Data | NSN 5330-01-181-9023
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOL COMP 9R1 OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | G3 RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 13.500 INCHES NOMINAL |
| APERTURE DIAMETER | 14.000 INCHES NOMINAL |
| GASKET CENTER TO SECOND FLAT DISTANCE | 0.210 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12304676-2 |
Restrictions/Controls & Freight Information | NSN 5330-01-181-9023
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106460 | RINGS ROLLED STEEL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-181-9023
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
