NSN 5330-00-531-4678 108S35, 00-531-4678, 005314678
Product Details | PREFORMED MECHANICAL FELT
5330-00-531-4678 An item manufactured to predetermined dimensions. It is either a precut strip or an item of various peripheral shapes and may contain bolt hole(s). It is used as a seal, wiper, mounting pad or for similar purposes. Excludes GASKET and PACKING PREFORMED.
Part Alternates: 108S35, 5330-00-531-4678, 00-531-4678, 5330005314678, 005314678
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-531-4678 | 18443 ( FELT, MECHANICAL, PREFORMED ) |

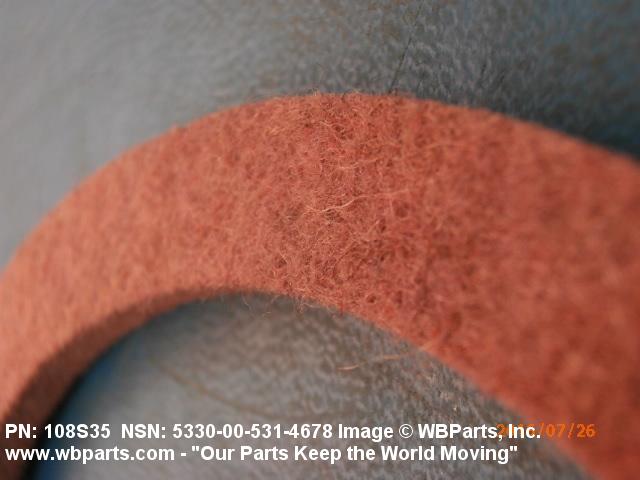

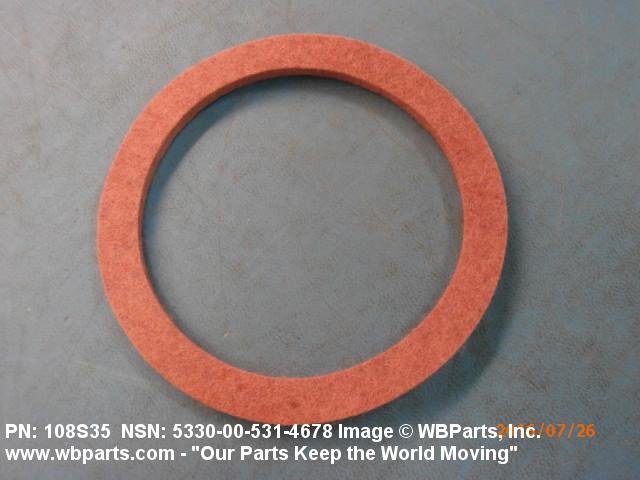

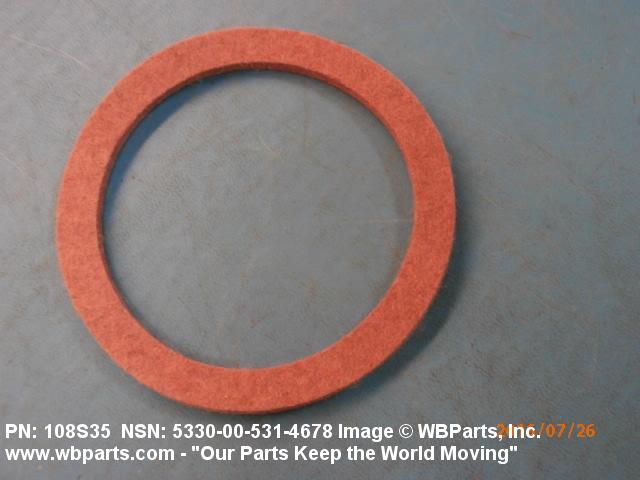

Drawings & Photos | NSN 5330-00-531-4678
Demand History | NSN 5330-00-531-4678
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-531-4678 | 2024-11-312 | 100 | Israel |
| 5330-00-531-4678 | 2016-06-173 | 4 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-531-4678
Related Products | NSN 5330-00-531-4678
Technical Data | NSN 5330-00-531-4678
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOL COMP 16R2 OVERALL |
| LUBRICATION METHOD | IMPREGNATED |
| LUBRICATION MATERIAL | OIL LUBRICATING OVERALL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-7870 NO 10 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | G3 RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.359 INCHES MINIMUM |

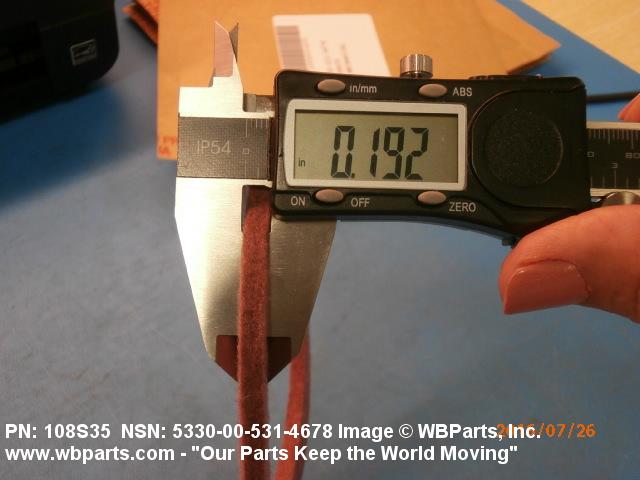

| CROSS-SECTIONAL WIDTH | 0.175 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |

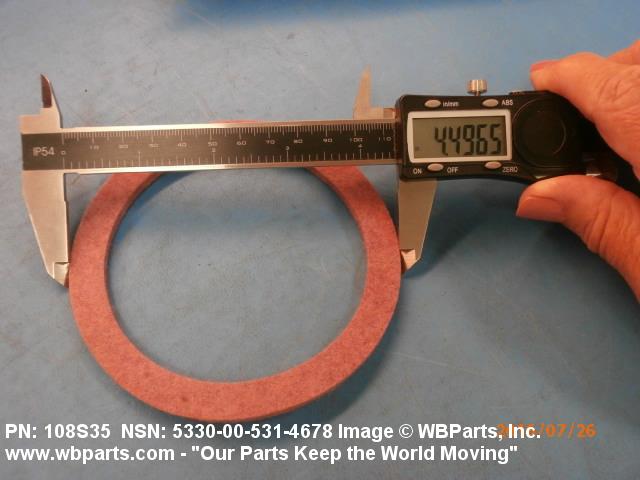

| OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |

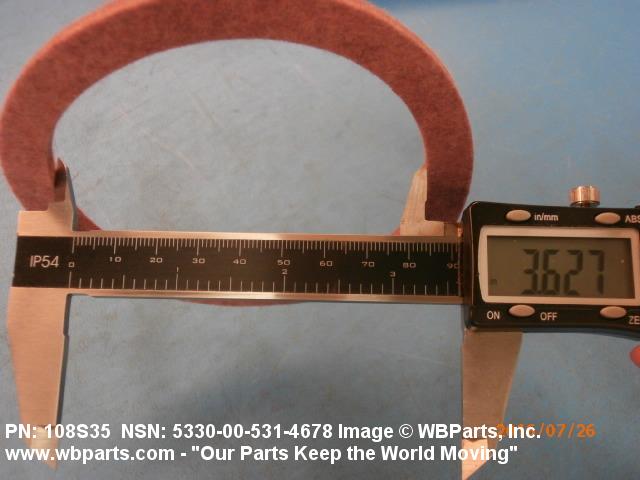

| APERTURE DIAMETER | 3.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-531-4678
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194020 | WASHERS/GASKETS/PCKG DVC ETC FELT |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-531-4678
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
