NSN 5330-01-121-0614 6L5828, 01-121-0614, 011210614
Product Details | GASKET
5330-01-121-0614 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 6L5828, 5330-01-121-0614, 01-121-0614, 5330011210614, 011210614
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 OCT 1981 | 01-121-0614 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-121-0614
Cross Reference | NSN 5330-01-121-0614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6L5828 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-121-0614
Technical Data | NSN 5330-01-121-0614
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOL OVERALL |

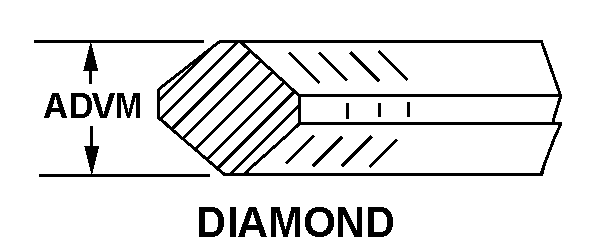

| CROSS-SECTIONAL SHAPE STYLE | F58 DIAMOND |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| STYLE DESIGNATOR | B22G NON-CIRCULAR |
| HOLE DIAMETER | 0.344 INCHES NOMINAL |
| OVERALL LENGTH | 3.755 INCHES NOMINAL |
| END RADIUS | 0.940 INCHES NOMINAL |
| APERTURE DIAMETER | 1.310 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.875 INCHES NOMINAL |
| SIDE RADIUS | 0.440 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | USED ON CATERPILLAR DIESEL ENGINE ONBOARD 270 FT WMEC COAST GUARD VESSELS |
| MANUFACTURERS CODE | 11083 |
| DESIGN CONTROL REFERENCE | 6L5828 |
Restrictions/Controls & Freight Information | NSN 5330-01-121-0614
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
