NSN 5330-01-120-9862 10086517 , 12299297-1, 01-120-9862
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-120-9862 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 10086517 , 12299297-1, 5330-01-120-9862, 01-120-9862, 5330011209862, 011209862, 122992971
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1981 | 01-120-9862 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-120-9862
Demand History | NSN 5330-01-120-9862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-120-9862 | 2024-10-282 | 60 | DIBBS |
| 5330-01-120-9862 | 2021-02-32 | 48 | DIBBS |
| 5330-01-120-9862 | 2020-12-349 | 20 | DIBBS |
| 5330-01-120-9862 | 2020-12-338 | 20 | DIBBS |
| 5330-01-120-9862 | 2016-06-178 | 88 | DIBBS |
| 5330-01-120-9862 | 2016-05-129 | 34 | DIBBS |
| 122992971 | 2009-02-43 | 10 | US |
Cross Reference | NSN 5330-01-120-9862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12299297-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-120-9862
Technical Data | NSN 5330-01-120-9862
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SOLID |

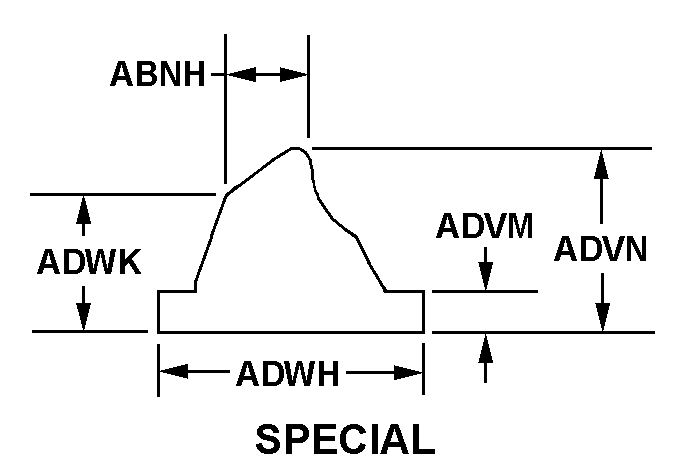

| CROSS-SECTIONAL SHAPE STYLE | H114 SPECIAL |
| CROSS-SECTIONAL THICKNESS | 0.125 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 1.031 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.625 INCHES NOMINAL |

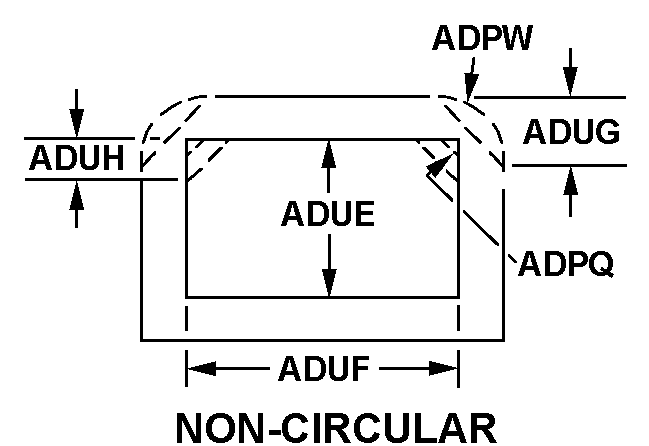

| STYLE DESIGNATOR | A5D NON-CIRCULAR |
| INSIDE CORNER RADIUS | 2.440 INCHES NOMINAL |
| APERTURE WIDTH | 28.625 INCHES MINIMUM AND 28.875 INCHES MAXIMUM |
| APERTURE LENGTH | 44.375 INCHES MINIMUM AND 44.625 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | CARRIER,MLRS; MODEL NO. XM993,NSN2350-01-091-5405 |
Restrictions/Controls & Freight Information | NSN 5330-01-120-9862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-120-9862
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
