NSN 5330-01-120-9863 10086518 , 12299297-2, 01-120-9863
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-120-9863 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 10086518 , 12299297-2, 5330-01-120-9863, 01-120-9863, 5330011209863, 011209863, 122992972
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1981 | 01-120-9863 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-120-9863
Demand History | NSN 5330-01-120-9863
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-120-9863 | 2022-03-90 | 51 | DIBBS |
| 5330-01-120-9863 | 2021-07-210 | 58 | DIBBS |
| 5330-01-120-9863 | 2020-11-317 | 64 | DIBBS |
| 5330-01-120-9863 | 2020-06-163 | 21 | DIBBS |
| 5330-01-120-9863 | 2016-06-159 | 58 | DIBBS |
Cross Reference | NSN 5330-01-120-9863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12299297-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-120-9863
Technical Data | NSN 5330-01-120-9863
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ZZ-R-765 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK |
| CONSTRUCTION | ONE-PIECE |

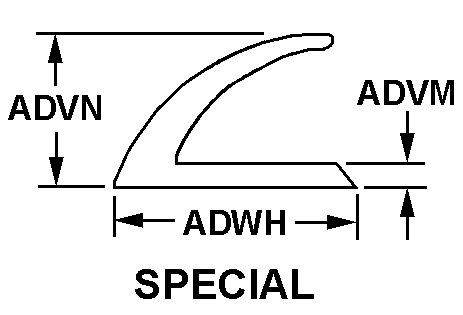

| CROSS-SECTIONAL SHAPE STYLE | H73 SPECIAL |
| CROSS-SECTIONAL THICKNESS | 0.094 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 1.031 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.609 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |

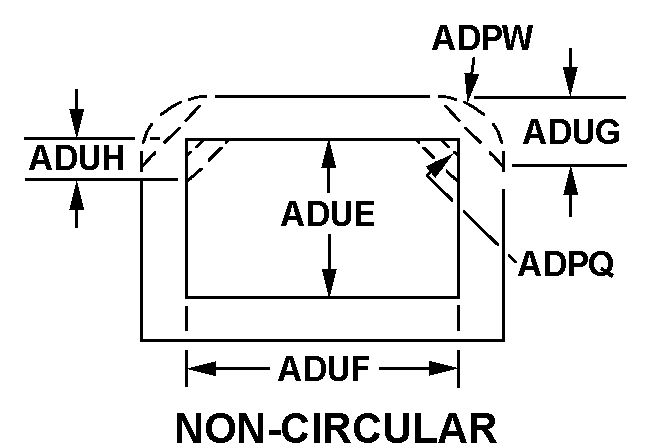

| STYLE DESIGNATOR | A5C NON-CIRCULAR |
