NSN 5330-01-114-3011 011143011
Product Details | WIPER RING
5330-01-114-3011 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 011143011
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01-114-3011 | 20256 ( RING, WIPER ) |

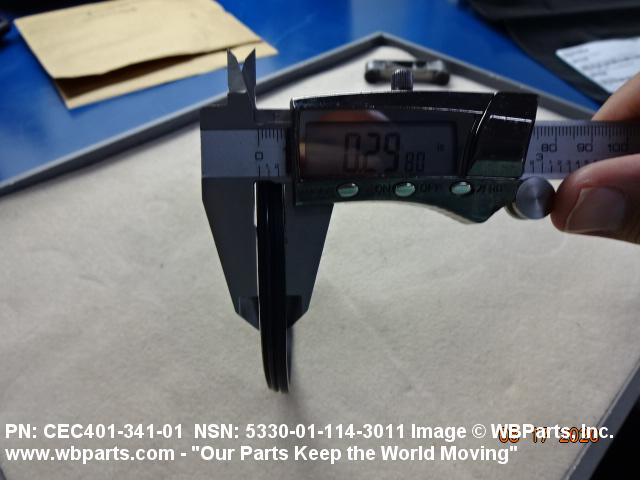

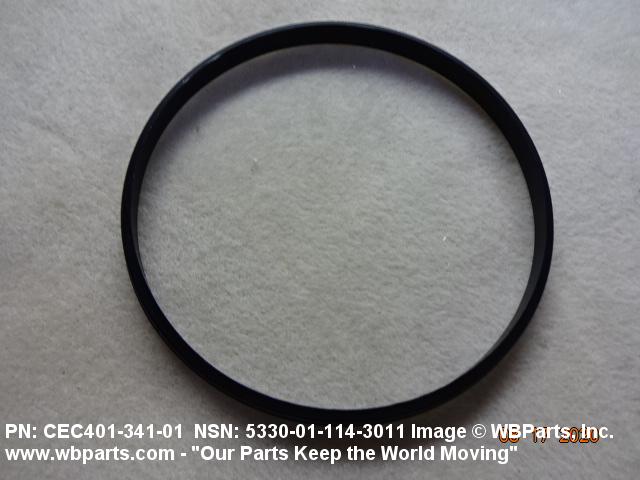

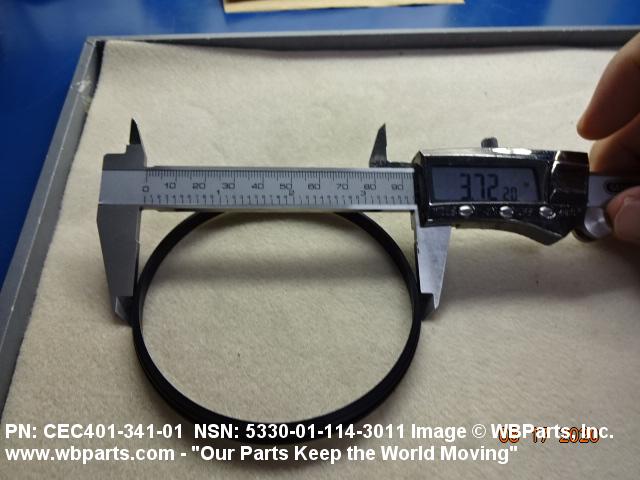

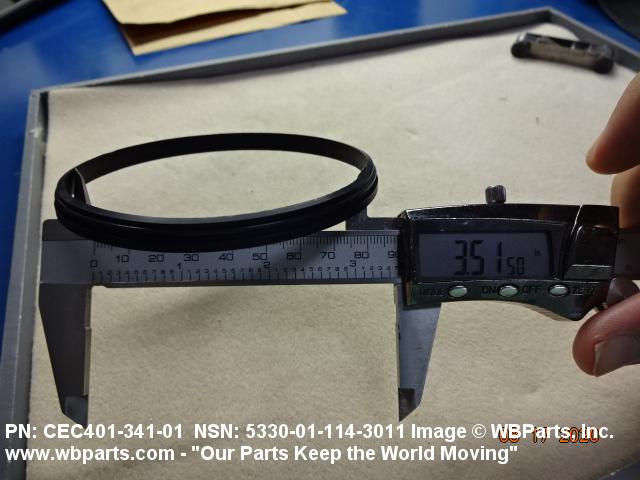

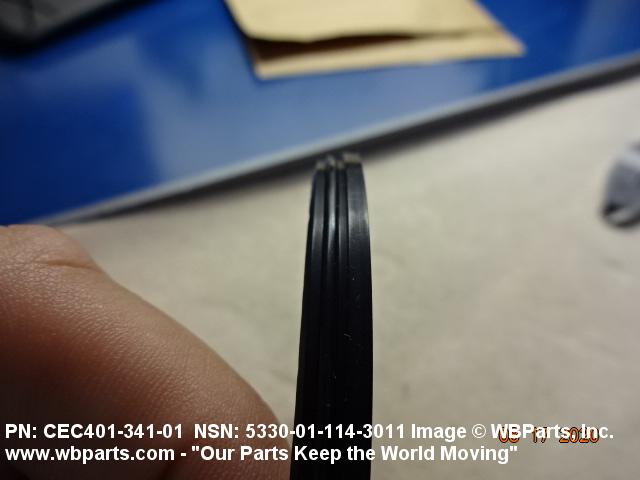

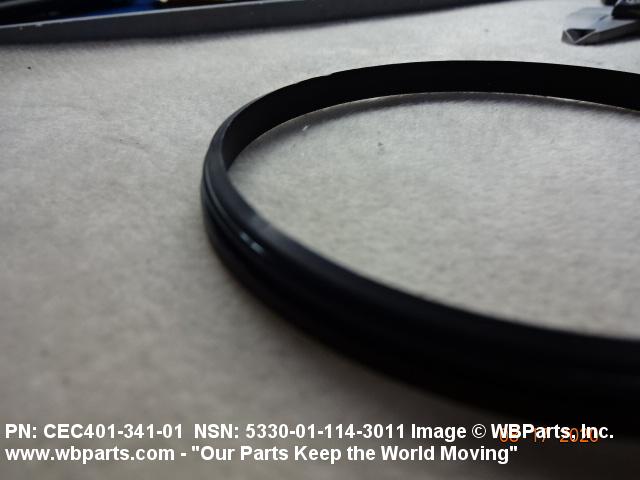

Drawings & Photos | NSN 3040-01-114-3011
Demand History | NSN 5330-01-114-3011
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CEC40134101 | 2020-07-209 | 2 | United States |
| 3040-01-114-3011 | 2016-07-197 | 40 | KR |
| 3040-01-114-3011 | 2016-01-11 | 4 | us |
| 3040-01-114-3011 | 2015-02-49 | 2 | US |
| 3040-01-114-3011 | 2010-11-333 | 404 | DIBBS |
| 3040-01-114-3011 | 2008-06-155 | 271 | DIBBS |
| 3040-01-114-3011 | 2008-03-84 | 90 | DIBBS |
| 3040-01-114-3011 | 2007-09-249 | 724 | DIBBS |
| 3040-01-114-3011 | 2007-08-241 | 378 | DIBBS |
| 3040-01-114-3011 | 2007-08-241 | 522 | DIBBS |
| 3040-01-114-3011 | 2007-06-169 | 378 | DIBBS |
| 3040-01-114-3011 | 2007-05-136 | 377 | DIBBS |
| 3040-01-114-3011 | 2007-05-129 | 522 | DIBBS |
| 3040-01-114-3011 | 2007-03-67 | 283 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-114-3011
Technical Data | NSN 5330-01-114-3011
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE INSIDE PERIPHERY |
| INSIDE DIAMETER | 3.497 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.772 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.300 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-01-114-3011
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
