NSN 5330-01-086-8601 GS18AN11440, GS18AN1-1440, 01-086-8601
Product Details | NONMETALLIC STRIP SEAL
5330-01-086-8601 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: GS18AN11440, GS18AN1-1440, 5330-01-086-8601, 01-086-8601, 5330010868601, 010868601
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1979 | 01-086-8601 | 36874 ( SEAL, NONMETALLIC STRIP ) |
Drawings & Photos | NSN 5330-01-086-8601
Cross Reference | NSN 5330-01-086-8601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GS18AN1-1440 | 76376 | MECHANICAL RUBBER PRODUCTS COMPANY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-086-8601
Technical Data | NSN 5330-01-086-8601
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |

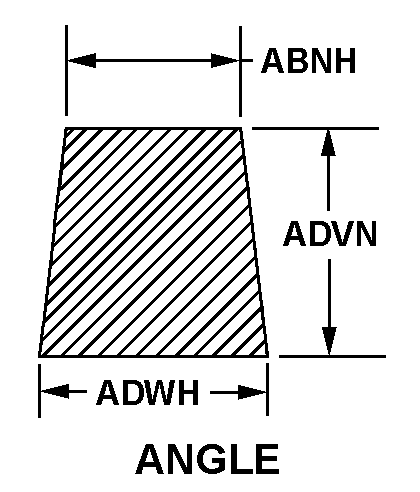

| CROSS-SECTIONAL SHAPE STYLE | G29 ANGLE |
| MINOR WIDTH | 0.063 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.313 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.125 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 144.000 INCHES NOMINAL |
| ATTACHMENT METHOD | CEMENTED |
| SPECIAL FEATURES | USED ON WING DE-ICER FILLER BOOT INSTALLATION ON GRUMMAN AEROSPACE CORPMODEL G-159 AIRCRAFT |
| III SMOOTH FINISH SURFACE LOCATION | EXTERNAL |
| MANUFACTURERS CODE | 76376 |
| DESIGN CONTROL REFERENCE | GS18AN1-1440 |
Restrictions/Controls & Freight Information | NSN 5330-01-086-8601
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
