NSN 5330-01-040-0445 12252250, 01-040-0445, 010400445
Product Details | NONMETALLIC STRIP SEAL
5330-01-040-0445 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 12252250, 5330-01-040-0445, 01-040-0445, 5330010400445, 010400445
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1977 | 01-040-0445 | 36874 ( SEAL, NONMETALLIC STRIP ) |

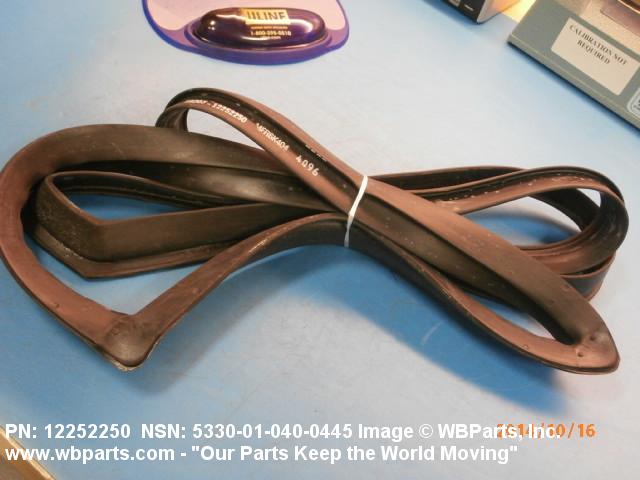

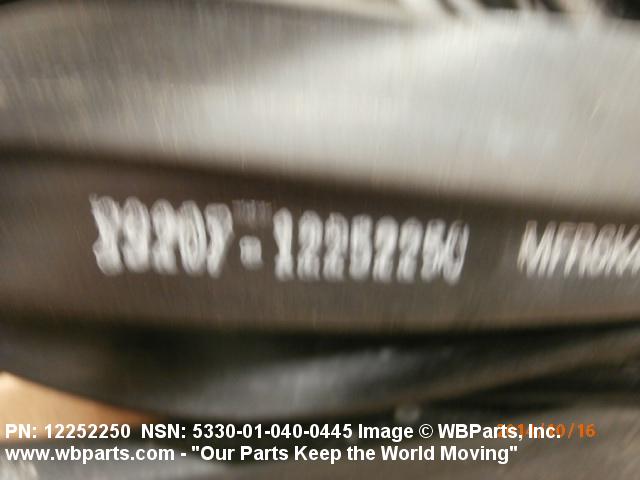

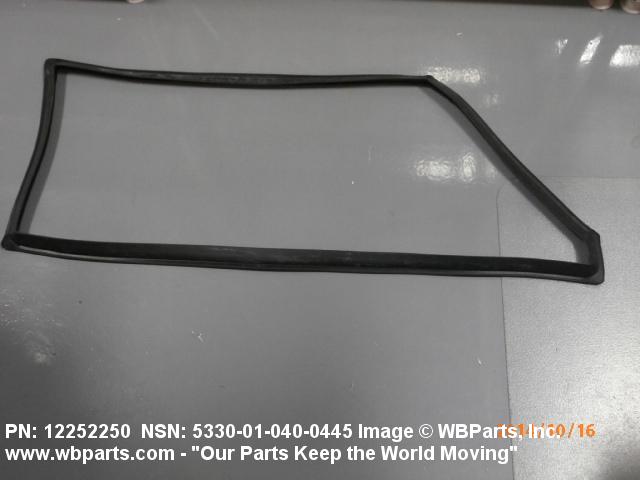

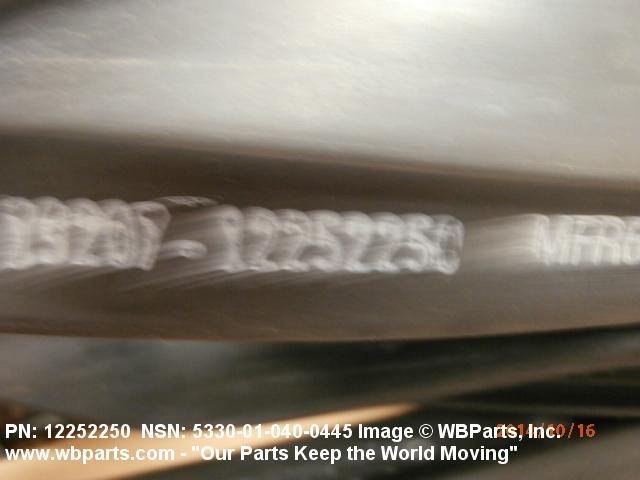

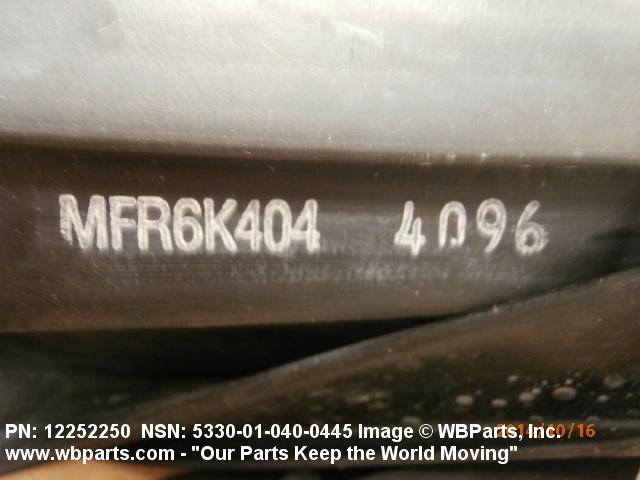

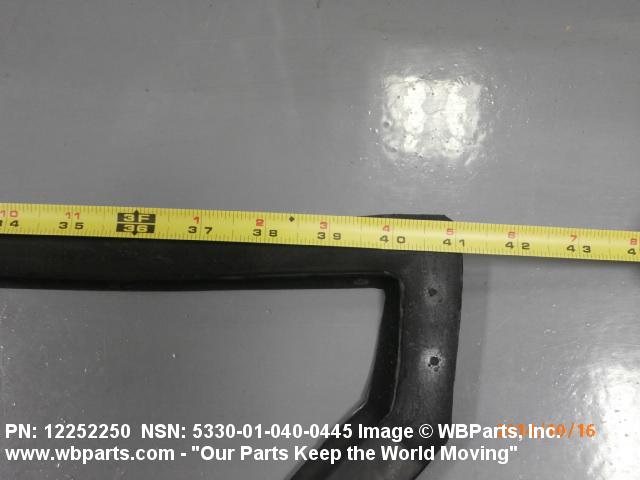

Drawings & Photos | NSN 5330-01-040-0445
Demand History | NSN 5330-01-040-0445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-040-0445 | 2024-10-304 | 2 | DIBBS |
| 5330-01-040-0445 | 2023-09-254 | 6 | DIBBS |
| 5330-01-040-0445 | 2021-09-270 | 6 | DIBBS |
| 5330-01-040-0445 | 2021-09-257 | 6 | DIBBS |
| 5330-01-040-0445 | 2020-11-334 | 16 | DIBBS |
| 5330-01-040-0445 | 2020-11-334 | 24 | DIBBS |
| 5330-01-040-0445 | 2018-10-294 | 13 | DIBBS |
| 5330-01-040-0445 | 2017-10-303 | 7 | DIBBS |
| 5330-01-040-0445 | 2016-10-286 | 9 | DIBBS |
| 5330-01-040-0445 | 2016-01-14 | 24 | DIBBS |
| 5330-01-040-0445 | 2014-12-362 | 13 | DIBBS |
| 5330-01-040-0445 | 2014-10-274 | 19 | United States |
| 5330-01-040-0445 | 2014-03-89 | 19 | DIBBS |
| 5330-01-040-0445 | 2008-05-123 | 6 | DIBBS |
| 5330-01-040-0445 | 2008-01-25 | 5 | DIBBS |
| 5330-01-040-0445 | 2008-01-25 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-040-0445
Technical Data | NSN 5330-01-040-0445
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR BACKING RUBBER POLYISOPRENE NATURAL CLASS NR OR RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 2BC515C1F1 ASSN STD SINGLE MATERIAL RESPONSE BACKING 670 RC07F1 MIL STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SPLIT |

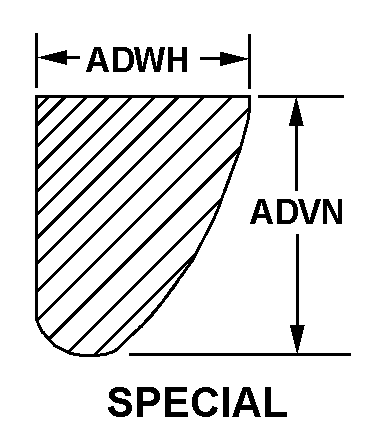

| CROSS-SECTIONAL SHAPE STYLE | G12 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 0.320 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.500 INCHES NOMINAL |
| FABRICATION METHOD | CELLULAR, EXPLODED |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 68.500 INCHES NOMINAL |
| ATTACHMENT METHOD | CEMENTED |
| III SMOOTH FINISH SURFACE LOCATION | TOP |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12252250 |
Restrictions/Controls & Freight Information | NSN 5330-01-040-0445
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | U | 96 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-040-0445
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | U | 96 months |
| Purchasing | QTY UOM |
1 EA : Each |
