Product Details | GASKET
5330-01-020-4688 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: S9009D6, 5330-01-020-4688, 01-020-4688, 5330010204688, 010204688
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1976 | 01-020-4688 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-020-4688
Demand History | NSN 5330-01-020-4688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-020-4688 | 2023-06-171 | 1875 | DIBBS |
| 5330-01-020-4688 | 2015-02-54 | 12607 | DIBBS |
| 5330-01-020-4688 | 2015-02-41 | 12607 | DIBBS |
| 5330-01-020-4688 | 2014-06-169 | 7000 | DIBBS |
| 5330-01-020-4688 | 2014-03-65 | 8586 | DIBBS |
| 5330-01-020-4688 | 2013-10-297 | 5058 | DIBBS |
| S9009D6 | 2013-07-185 | 100 | United States |
| S9009D6 | 2008-06-163 | 100 | United States |
| 5330-01-020-4688 | 2008-02-59 | 3656 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-020-4688
Related Products | NSN 5330-01-020-4688
Technical Data | NSN 5330-01-020-4688
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | KAPTON H,FSCM 82348 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

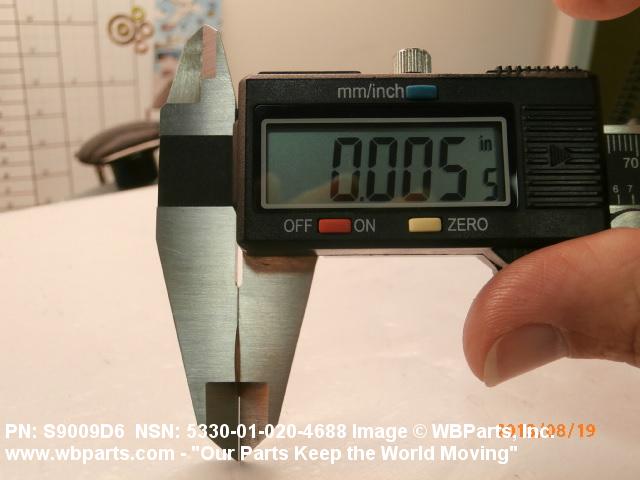

| CROSS-SECTIONAL THICKNESS | 0.005 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |

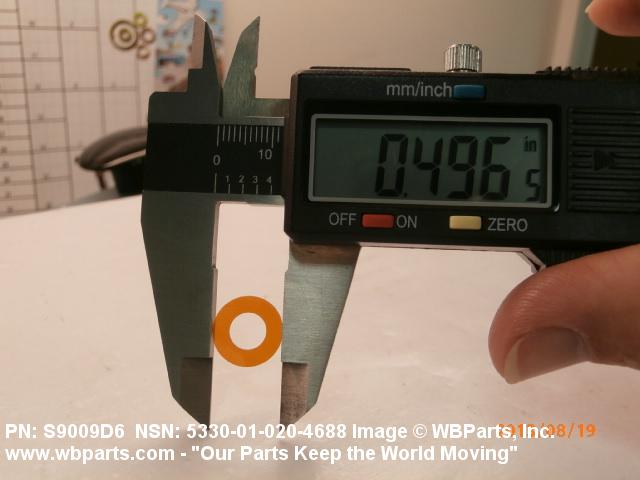

| OUTSIDE DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

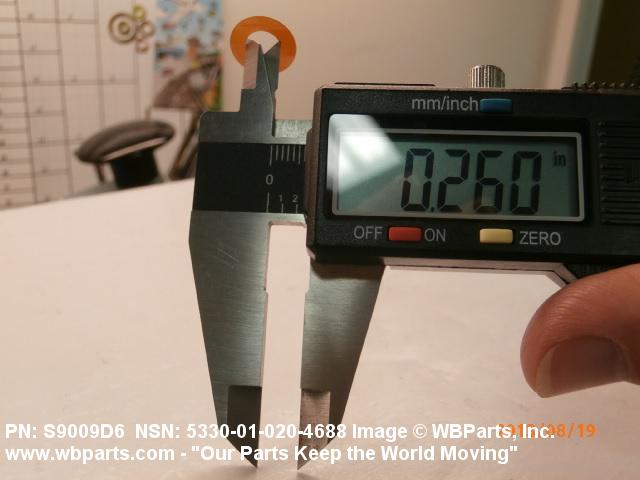

| APERTURE DIAMETER | 0.255 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | S9009D6 |
