NSN 5330-00-966-6790 C090963001, C090963-001, 00-966-6790
Product Details | PLAIN SEAL
5330-00-966-6790 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: C090963001, C090963-001, 5330-00-966-6790, 00-966-6790, 5330009666790, 009666790
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1966 | 00-966-6790 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-00-966-6790
Cross Reference | NSN 5330-00-966-6790
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C090963-001 | 10618 | GYRODYNE CO OF AMERICA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-966-6790
Technical Data | NSN 5330-00-966-6790
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND RUBBER SYNTHETIC SEALING ELEMENT STEEL CORROSION RESISTING SPRING |
| CONSTRUCTION | SOLID |

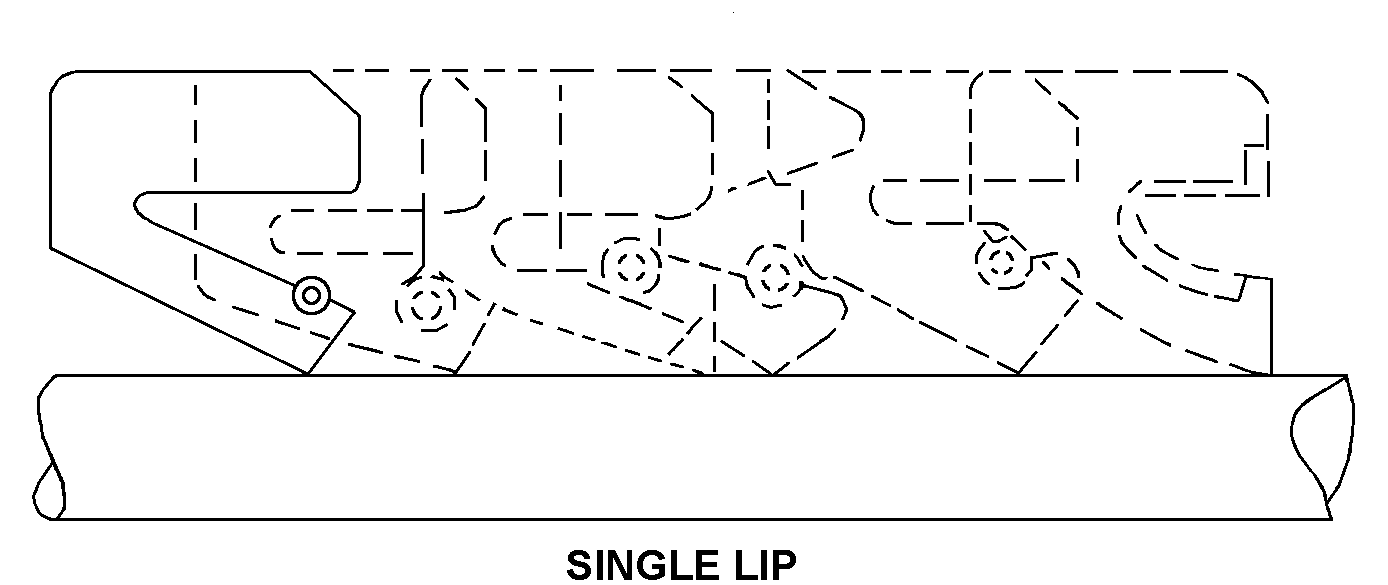

| CROSS-SECTIONAL SHAPE STYLE | L9 SINGLE LIP |
| SEAL WIDTH | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 1.373 INCHES MINIMUM AND 1.377 INCHES MAXIMUM |
| MANUFACTURERS CODE | 10618 |
| DESIGN CONTROL REFERENCE | C090963-001 |
Restrictions/Controls & Freight Information | NSN 5330-00-966-6790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-966-6790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
