NSN 5330-00-961-0982 116, 00-961-0982, 009610982
Product Details | GASKET
5330-00-961-0982 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 116, 5330-00-961-0982, 00-961-0982, 5330009610982, 009610982
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-961-0982 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-961-0982
Demand History | NSN 5330-00-961-0982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 116 | 2014-12-363 | 2 | MX |
| 116 | 2013-02-43 | 1 | United States |
Cross Reference | NSN 5330-00-961-0982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 116 | 75165 | JOHNS MANVILLE INTL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-961-0982
Technical Data | NSN 5330-00-961-0982
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND COPPER ALLOY AND RUBBER OVERALL |

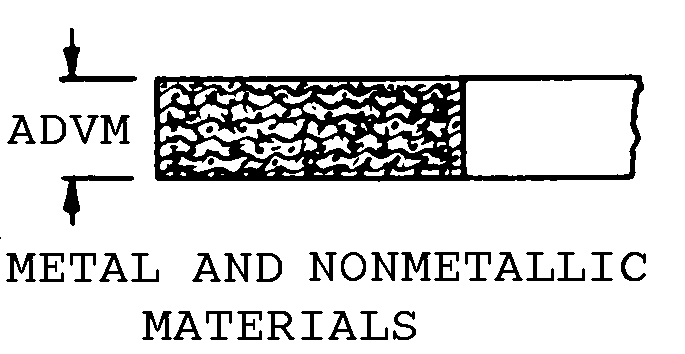

| CROSS-SECTIONAL SHAPE STYLE | F49 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL THICKNESS | 0.250 INCHES NOMINAL |

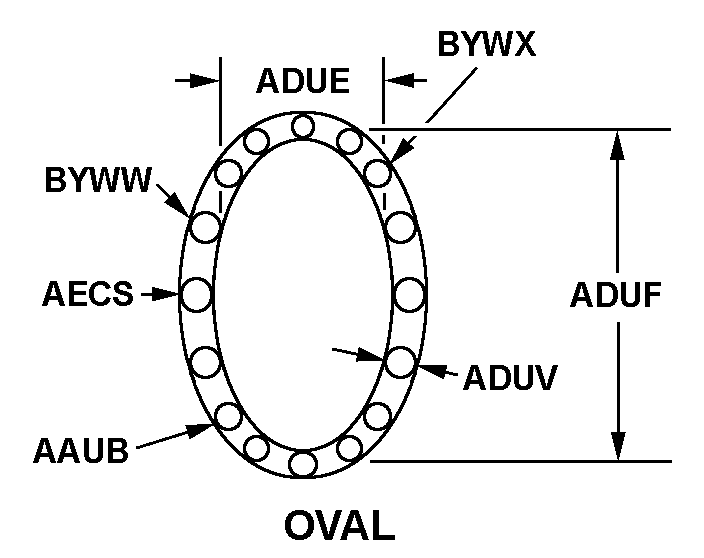

| STYLE DESIGNATOR | B6B OVAL |
| APERTURE WIDTH | 16.000 INCHES NOMINAL |
| APERTURE LENGTH | 12.000 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-961-0982
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
