NSN 5330-00-883-8221 MS3576924, MS35769-24, 00-883-8221
Product Details | GASKET
5330-00-883-8221 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: MS3576924, MS35769-24, 5330-00-883-8221, 00-883-8221, 5330008838221, 008838221
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-883-8221 | 04522 ( GASKET ) |

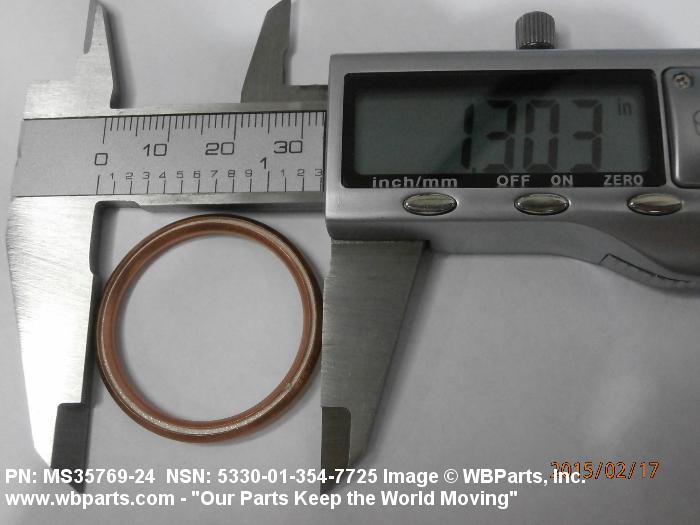

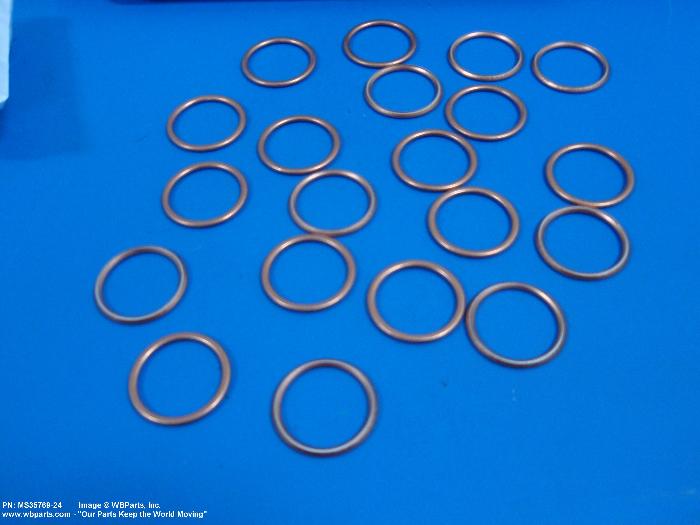

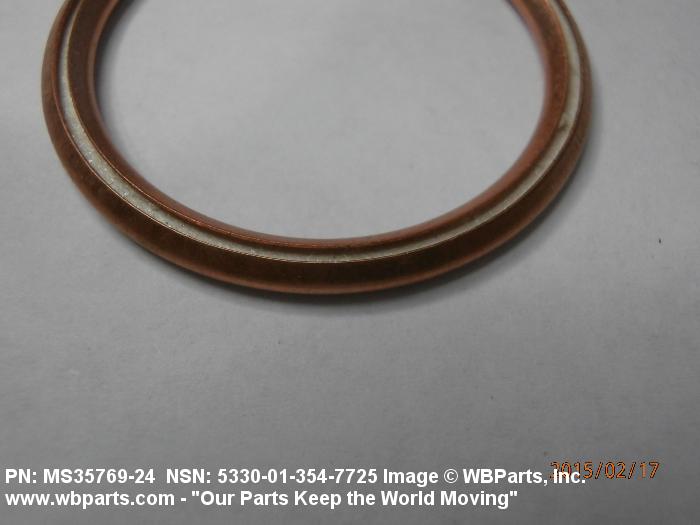

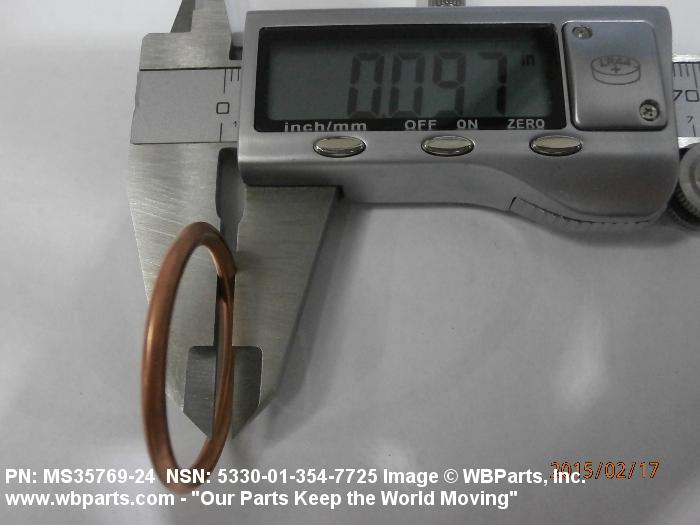

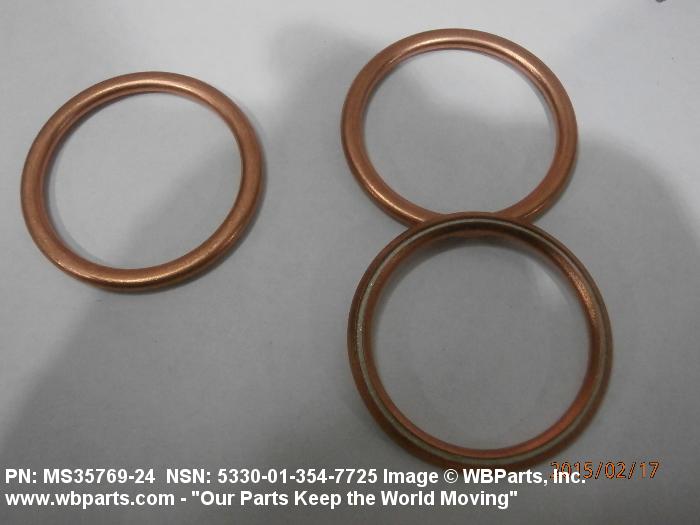

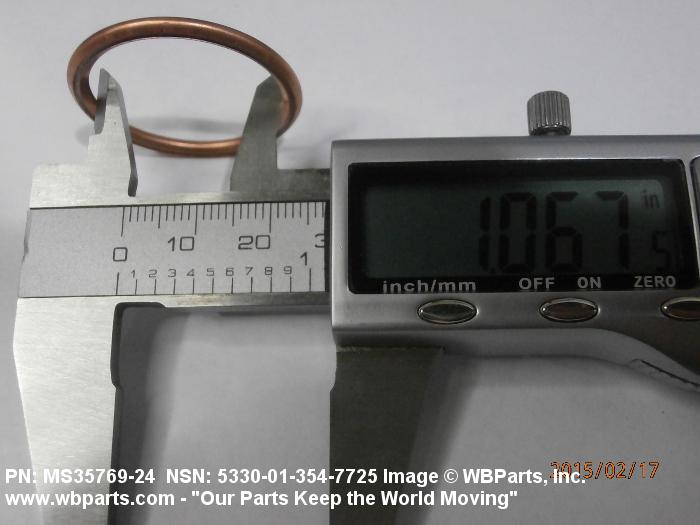

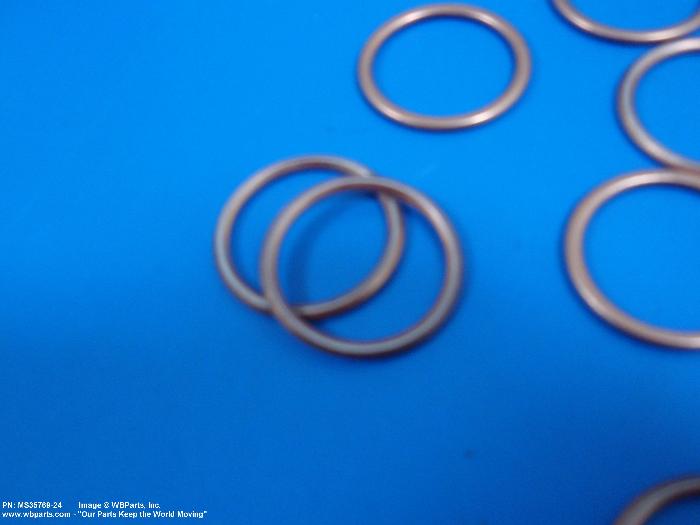

Drawings & Photos | NSN 5330-00-883-8221
Demand History | NSN 5330-00-883-8221
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3576924 | 2020-10-303 | 2 | UK |
| MS3576924 | 2012-05-125 | 1 | United States |
| MS3576924 | 2011-12-355 | 10 | US |
| MS3576924 | 2011-06-168 | 500 | US |
| 5330-00-883-8221 | 2009-05-142 | 3 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-883-8221
Technical Data | NSN 5330-00-883-8221
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND COPPER OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F35 METAL WITH SOFT FILLER |
| CROSS-SECTIONAL THICKNESS | 0.078 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 1.297 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
| APERTURE DIAMETER | 1.062 INCHES MINIMUM AND 1.078 INCHES MAXIMUM |
| III TEMP RATING | 500.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 5330-00-883-8221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-883-8221
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
