NSN 5330-00-841-0755 3009332, 3039937, 5010858
Product Details | GASKET
5330-00-841-0755 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 3009332, 3039937, 5010858, 968.20.11.112, 968.20.12.497 , 9682011112, 9682012497, 5330-00-841-0755, 00-841-0755, 5330008410755, 008410755
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-841-0755 | 04522 ( GASKET ) |

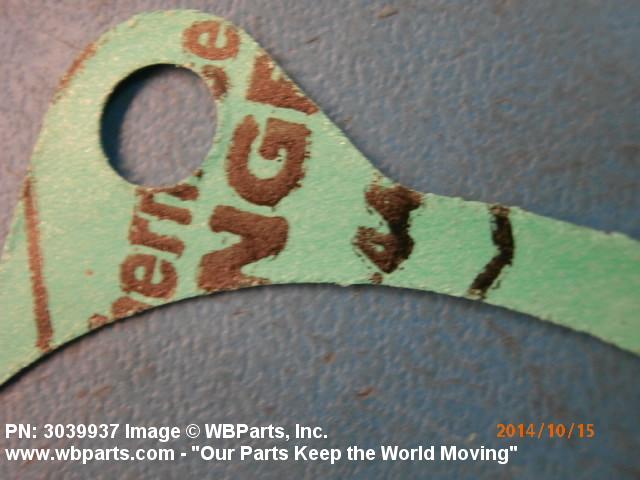

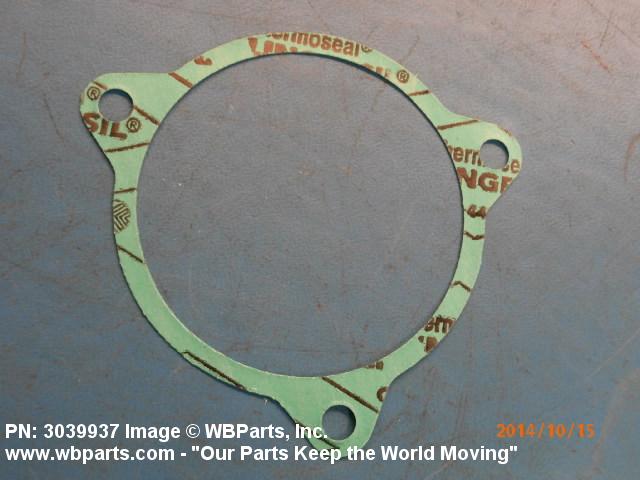

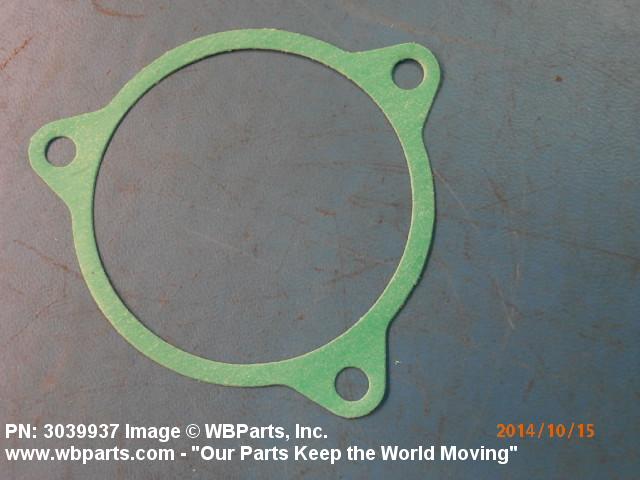

Drawings & Photos | NSN 5330-00-841-0755
Demand History | NSN 5330-00-841-0755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3009332 | 2023-03-79 | 3 | Egypt |
| 3039937 | 2021-09-263 | 20 | US |
| 5330-00-841-0755 | 2021-06-160 | 1 | US |
| 3009332 | 2014-09-268 | 20 | Ecuador |
| 3039937 | 2014-09-268 | 20 | Ecuador |
| 3009332 | 2014-07-197 | 10 | US |
| 5330-00-841-0755 | 2011-08-220 | 6 | CO |
| 3039937 | 2011-03-70 | 20 | |
| 3039937 | 2010-11-322 | 100 | |
| 5330-00-841-0755 | 2009-07-204 | 200 | United States |
| 3009332 | 2008-08-218 | 100 | US |
| 3039937 | 2008-03-87 | 5 | Singapore |
Cross Reference | NSN 5330-00-841-0755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3009332 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 3039937 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
| 5010858 | 001JK | EMBRAER S/A |
| 5010858 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 968.20.11.112 | S4080 | PILATUS AIRCRAFT LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-841-0755
Related Products | NSN 5330-00-841-0755
Technical Data | NSN 5330-00-841-0755
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

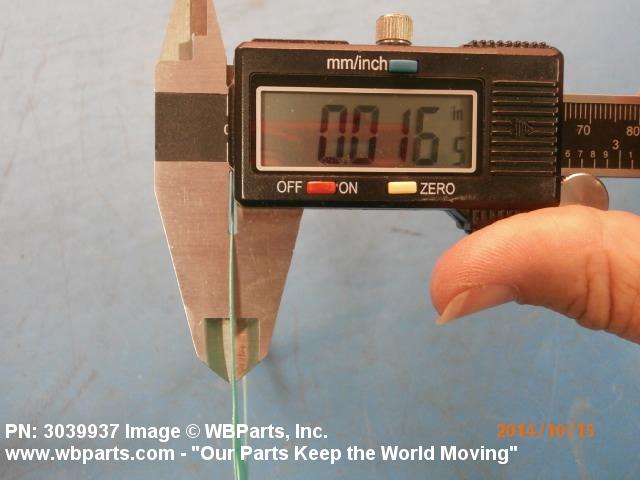

| CROSS-SECTIONAL THICKNESS | 0.010 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| STYLE DESIGNATOR | B21A NON-CIRCULAR |

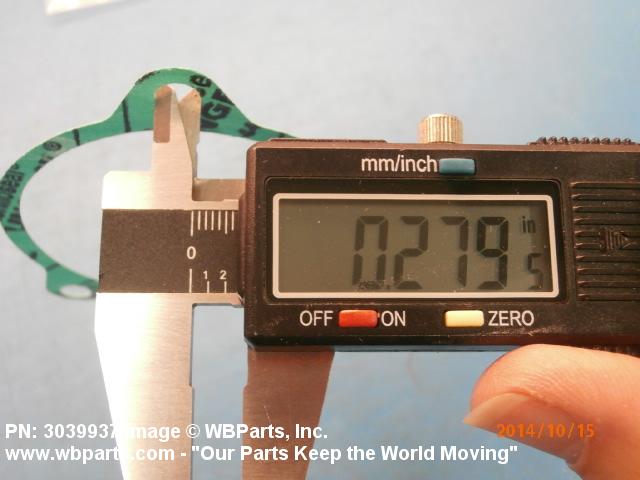

| HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |

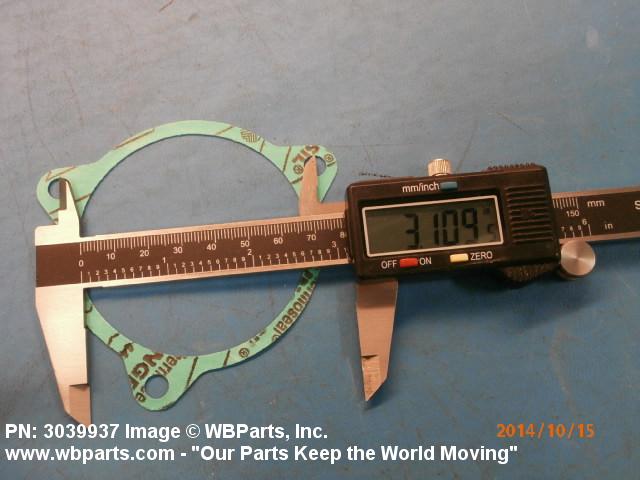

| BOLT CIRCLE DIAMETER | 3.090 INCHES MINIMUM AND 3.110 INCHES MAXIMUM |

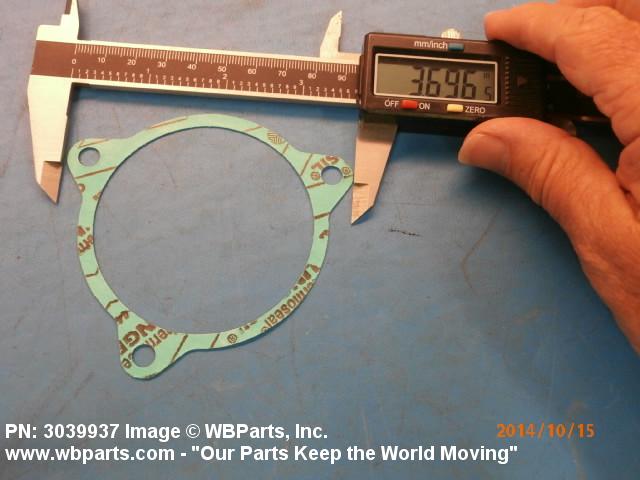

| OVERALL WIDTH | 3.697 INCHES NOMINAL |

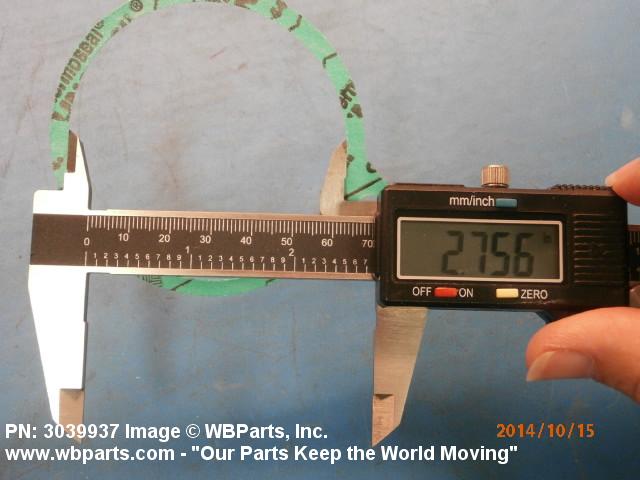

| APERTURE DIAMETER | 2.750 INCHES MINIMUM AND 2.770 INCHES MAXIMUM |
