5330-00-822-9752 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: 48096, 5330-00-822-9752, 00-822-9752, 5330008229752, 008229752

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-822-9752

Drawings & Photos | NSN 5330-00-822-9752


Cross Reference | NSN 5330-00-822-9752

Part Number Cage Code Manufacturer
48096 24930 EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-822-9752

Technical Data | NSN 5330-00-822-9752

Characteristic Specifications
MATERIAL PLASTIC PHENOLIC AND PAPER OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-P-3115,TY PBE-P MIL SPEC ALL MATERIAL RESPONSES OVERALL
CROSS-SECTIONAL SHAPE STYLE F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL
CROSS-SECTIONAL THICKNESS 0.010 INCHES NOMINAL

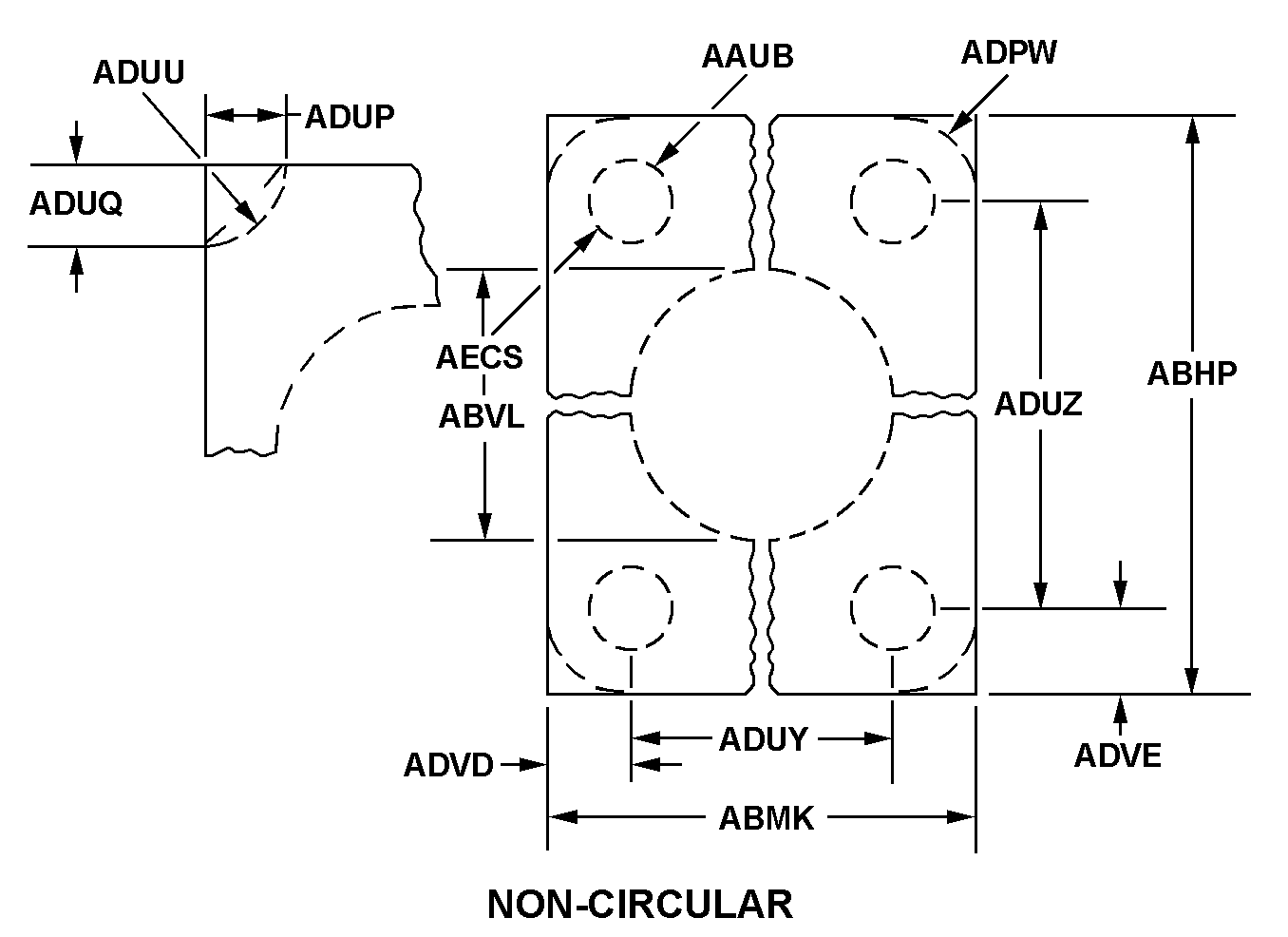

STYLE DESIGNATOR B18M NON-CIRCULAR
OVERALL LENGTH 1.718 INCHES NOMINAL
OVERALL WIDTH 1.718 INCHES NOMINAL
APERTURE DIAMETER 1.531 INCHES NOMINAL
OUTSIDE CORNER BEVEL LENGTH ALONG WIDTH 0.125 INCHES NOMINAL
OUTSIDE CORNER BEVEL LENGTH ALONG LENGTH 0.125 INCHES NOMINAL
MANUFACTURERS CODE 24930
DESIGN CONTROL REFERENCE 48096
