NSN 5330-00-807-3761 391193, 00-807-3761, 008073761
Product Details | GASKET
5330-00-807-3761 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 391193, 5330-00-807-3761, 00-807-3761, 5330008073761, 008073761
Hardware and Abrasives | Packing and Gasket Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 00-807-3761 | 04522 ( GASKET ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5330-00-807-3761
Technical Data | NSN 5330-00-807-3761
Characteristic | Specifications |
---|---|
MATERIAL | ASBESTOS AND RUBBER SYNTHETIC OVERALL |
CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
CROSS-SECTIONAL THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |

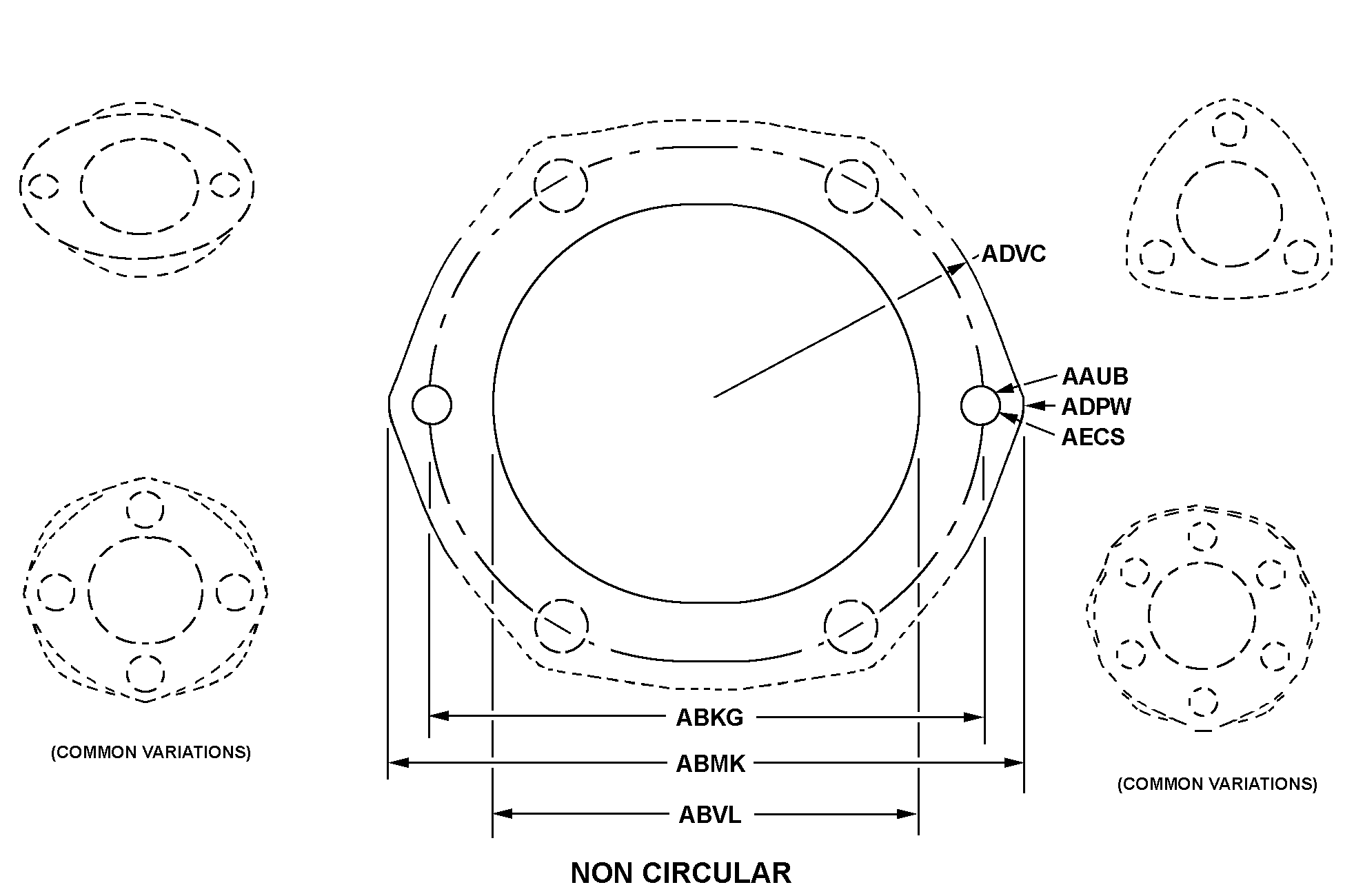

STYLE DESIGNATOR | B13B NON-CIRCULAR |
HOLE DIAMETER | 0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
BOLT CIRCLE DIAMETER | 1.500 INCHES NOMINAL |
OVERALL WIDTH | 1.968 INCHES MINIMUM AND 2.032 INCHES MAXIMUM |
OUTSIDE CORNER RADIUS | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
SIDE RADIUS FROM GASKET CENTER | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
BOLT HOLE QUANTITY | 2 |
III FSC APPLICATION DATA | ENGINE,TURBO-JET |
MANUFACTURERS CODE | 77445 |
DESIGN CONTROL REFERENCE | 391193 |
Restrictions/Controls & Freight Information | NSN 5330-00-807-3761
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Category | Code | Description |
---|---|---|
No Freight Information |
