NSN 5330-00-641-2422 00-641-2422, 006412422
Product Details | GASKET
5330-00-641-2422 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 5330-00-641-2422, 00-641-2422, 5330006412422, 006412422
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-641-2422 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-641-2422
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-641-2422
Technical Data | NSN 5330-00-641-2422
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND STEEL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F14 METAL WITH SOFT FILLER |
| CROSS-SECTIONAL THICKNESS | 0.078 INCHES NOMINAL |

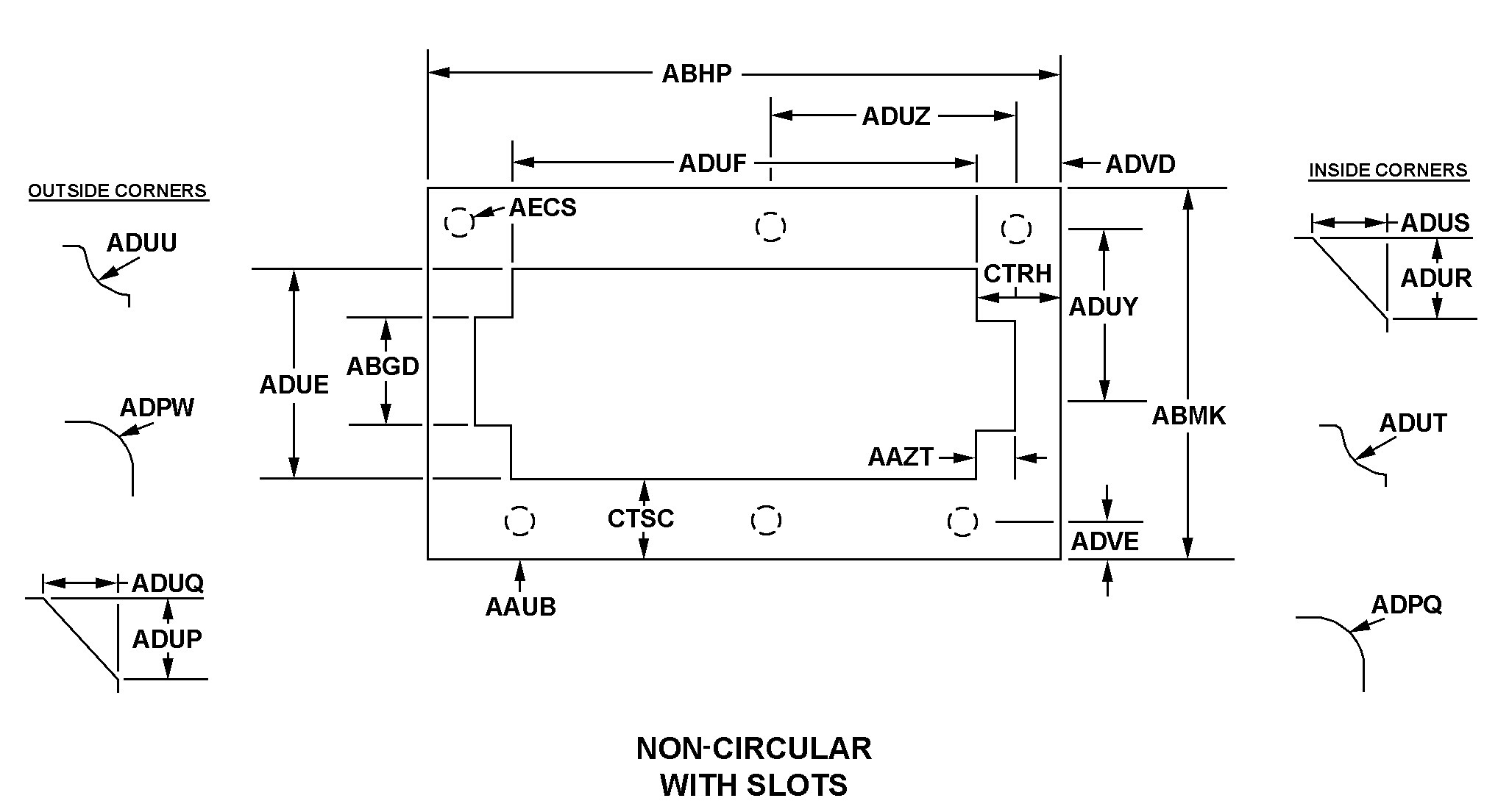

| STYLE DESIGNATOR | B45F NON-CIRCULAR WITH SLOTS |
| HOLE DIAMETER | 0.469 INCHES NOMINAL |
| OVERALL LENGTH | 10.188 INCHES NOMINAL |
| OVERALL WIDTH | 6.438 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 1.906 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 3.219 INCHES NOMINAL |
| APERTURE WIDTH | 3.812 INCHES NOMINAL |
| APERTURE LENGTH | 7.562 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 10 |
Restrictions/Controls & Freight Information | NSN 5330-00-641-2422
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
