NSN 5330-00-544-4367 005444367
Product Details | WIPER RING
5330-00-544-4367 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Part Alternates: 005444367
Materials Handling Equipment | Warehouse Trucks and Tractors, Self-Propelled
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 00-544-4367 | 20256 ( RING, WIPER ) |
Drawings & Photos | NSN 3930-00-544-4367
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-544-4367
Technical Data | NSN 5330-00-544-4367
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |

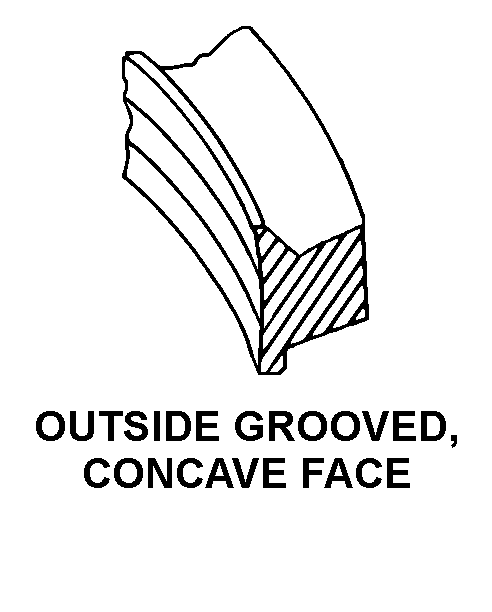

| CROSS-SECTIONAL SHAPE STYLE | B10 OUTSIDE GROOVED, CONCAVE FACE |
| RING STYLE | 7 CONCENTRIC |
| INSIDE DIAMETER | 3.149 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.793 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.443 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| OUTER EDGE THICKNESS | 0.255 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| III FSC APPLICATION DATA | TRUCK,LIFT,FORK |
| MANUFACTURERS CODE | 05415 |
| DESIGN CONTROL REFERENCE | 3Y12294-3 3-16 |
Restrictions/Controls & Freight Information | NSN 5330-00-544-4367
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
