NSN 5330-00-492-3181 53836533, 53-83653-3, 00-492-3181
Product Details | GASKET
5330-00-492-3181 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 53836533, 53-83653-3, 5330-00-492-3181, 00-492-3181, 5330004923181, 004923181
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 1970 | 00-492-3181 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-492-3181
Cross Reference | NSN 5330-00-492-3181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53-83653-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-492-3181
Technical Data | NSN 5330-00-492-3181
| Characteristic | Specifications |
|---|---|

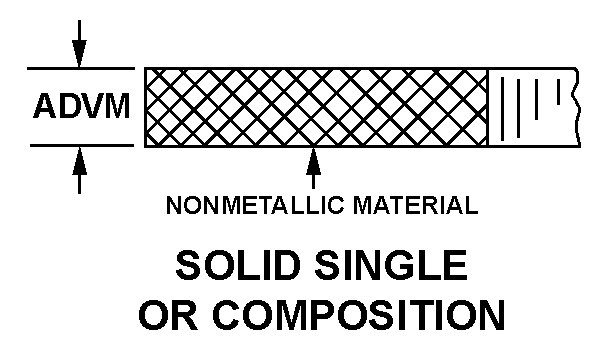

| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 3.800 INCHES NOMINAL |
| OVERALL WIDTH | 3.680 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.250 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SPECIAL FEATURES | RADIUS 0.250 IN. 3 CORNERS,0.750 IN. ON 4TH CORNER |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 53-83653-3 |
Restrictions/Controls & Freight Information | NSN 5330-00-492-3181
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
