NSN 5330-00-427-0566 10896984-1, 00-427-0566, 108969841
Product Details | GASKET
5330-00-427-0566 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 10896984-1, 5330-00-427-0566, 00-427-0566, 5330004270566, 108969841, 004270566
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-427-0566 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-427-0566
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-427-0566
Technical Data | NSN 5330-00-427-0566
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-14243 TY 3 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | LACQUER OR VARNISH OVERALL |

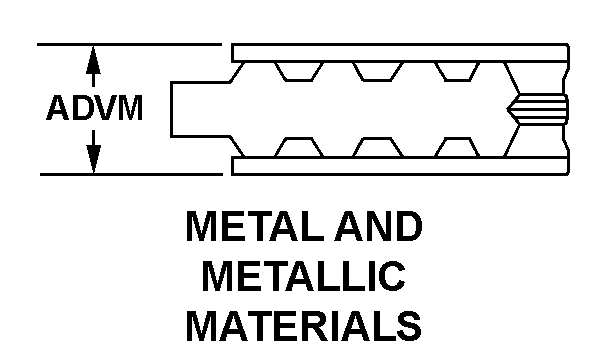

| CROSS-SECTIONAL SHAPE STYLE | F27 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL THICKNESS | 0.079 INCHES MINIMUM AND 0.084 INCHES MAXIMUM |
| STYLE DESIGNATOR | B18B NON-CIRCULAR |
| HOLE DIAMETER | 0.546 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 4.750 INCHES NOMINAL |
| APERTURE DIAMETER | 3.000 INCHES MINIMUM |
| OUTSIDE CORNER RADIUS | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 3.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 3.750 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.500 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.500 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10896984-1 |
