NSN 5330-00-285-3825 H92870, P32014F, PC2243465

Product Details | GASKET

5330-00-285-3825 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: H92870, P32014F, PC2243465, PC5192912, PX2224, T0477, D0Z10158, G08437, 0065579, 065579, 2243465, 25088220, 25088-2-20, 26205069, 2620-5069, 32014, 32104, 400126, 40145, 5-13-2007 ITEM 2-13, 5132007213, 5-13-2007-2-13, 5132007ITEM213, 5192912, 5330-00-285-3825, 00-285-3825, 5330002853825, 002853825

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-285-3825	04522 ( GASKET )

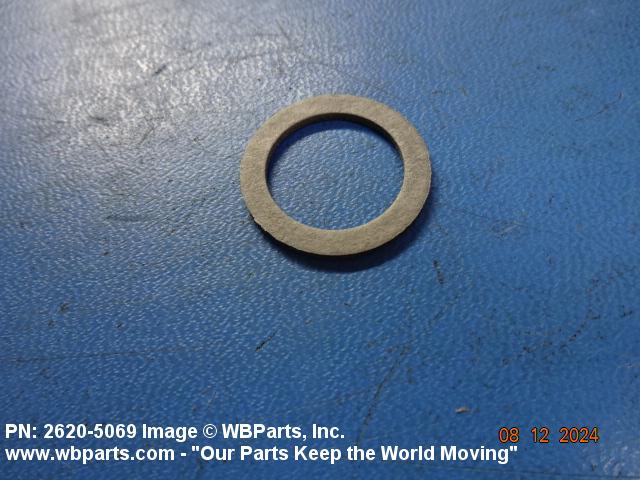

Drawings & Photos | NSN 5330-00-285-3825

Part Number	Request Date	QTY	Origin
26205069	2024-07-211	4	United States
5330-00-285-3825	2018-12-353	16	DIBBS
5330-00-285-3825	2018-12-345	16	DIBBS
40145	2015-08-217	3	United States
26205069	2013-11-305	12	US
5330-00-285-3825	2010-12-347	63	DIBBS
5330-00-285-3825	2010-11-305	68	DIBBS
5330-00-285-3825	2010-05-123	23	DIBBS
5330-00-285-3825	2010-01-13	24	DIBBS
26205069	2010-01-11	50	US
5330-00-285-3825	2009-12-362	12	US
5330-00-285-3825	2009-12-335	71	DIBBS

Cross Reference | NSN 5330-00-285-3825

Part Number	Cage Code	Manufacturer
0065579	89926	NEW HOLLAND CONSTRUCTION
065579	89926	NEW HOLLAND CONSTRUCTION
2243465	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
2243465	24617	GENERAL MOTORS CORP
2243465	72582	MTU AMERICA INC.
2243465	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
25088-2-20	92878	HDT EXPEDITIONARY SYSTEMS, INC.
2620-5069	13800	PARKER-HANNIFIN CORPORATION DBA PROCESS ADVANCED FILTRATION
32014	13800	PARKER-HANNIFIN CORPORATION DBA PROCESS ADVANCED FILTRATION
32104	13800	PARKER-HANNIFIN CORPORATION DBA PROCESS ADVANCED FILTRATION
400126	92878	HDT EXPEDITIONARY SYSTEMS, INC.
40145	95201	NAPCO INTERNATIONAL LLC
5-13-2007 ITEM 2-13	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-13-2007-2-13	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5192912	24617	GENERAL MOTORS CORP
5192912	72582	MTU AMERICA INC.
5192912	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
D0Z10158	13800	PARKER-HANNIFIN CORPORATION DBA PROCESS ADVANCED FILTRATION
G08437	93084	VBM CORP
H92870	64104	DRESSER, INC. DIV DRESSER WAUKESHA
P32014F	92870	SILENT GLOW CORP THE
PC2243465	C7432	POWER COMPONENTS (DEUTSCHLAND) GMBH
PC5192912	C7432	POWER COMPONENTS (DEUTSCHLAND) GMBH
PX2224	05396	BAKER PERKINS NORTH AMERICA INC SUB OF APV CONSOLIDATED INC
PX2224	89564	VULCAN-HART CORP
T0477	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
T0477	90598	ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-285-3825

Compare

Related Products | NSN 5330-00-285-3825

5330-00-285-3826, 5330-00-285-3839, 5330-00-285-3840, 5330-00-285-3846, 5330-00-285-3847

Technical Data | NSN 5330-00-285-3825

Characteristic	Specifications
MATERIAL	CELLULOSE OVERALL
CROSS-SECTIONAL SHAPE STYLE	F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL
CROSS-SECTIONAL THICKNESS	0.062 INCHES NOMINAL
STYLE DESIGNATOR	B1 CIRCULAR
OUTSIDE DIAMETER	1.000 INCHES NOMINAL
APERTURE DIAMETER	0.719 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5330-00-285-3825

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-285-3825

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package
