NSN 5330-00-202-2598 9000S620274385REVFPC4178115A, 9000S6202-74385REVFPC41-78-115A, 00-202-2598
Product Details | PACKING ASSEMBLY
5330-00-202-2598 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: 9000S620274385REVFPC4178115A, 9000S6202-74385REVFPC41-78-115A, 5330-00-202-2598, 00-202-2598, 5330002022598, 002022598
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-202-2598 | 07961 ( PACKING ASSEMBLY ) |

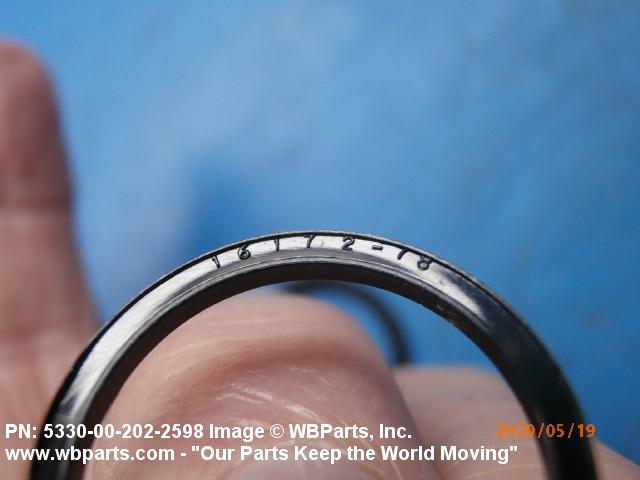

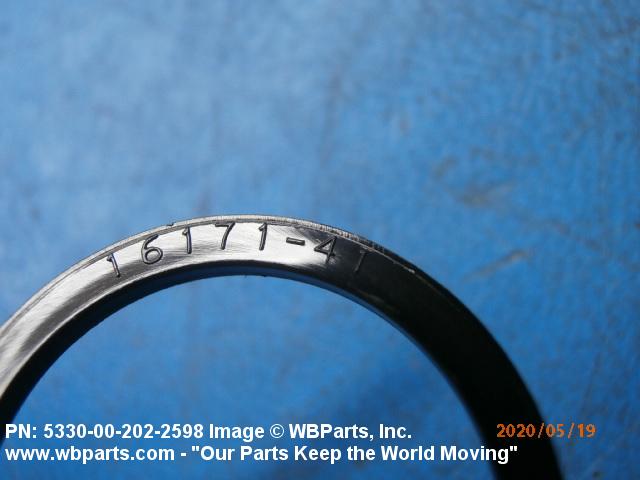

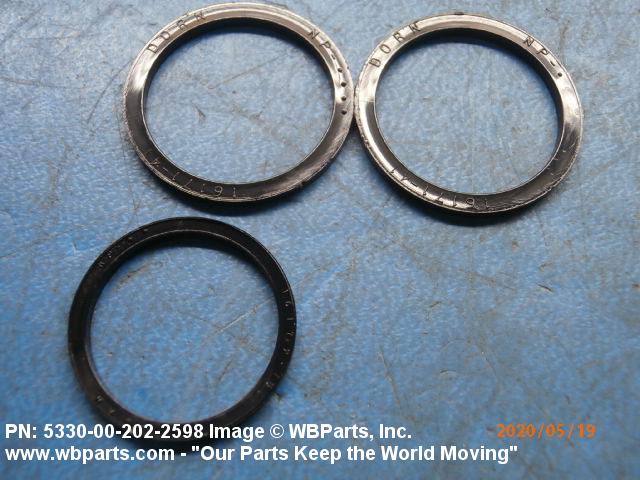

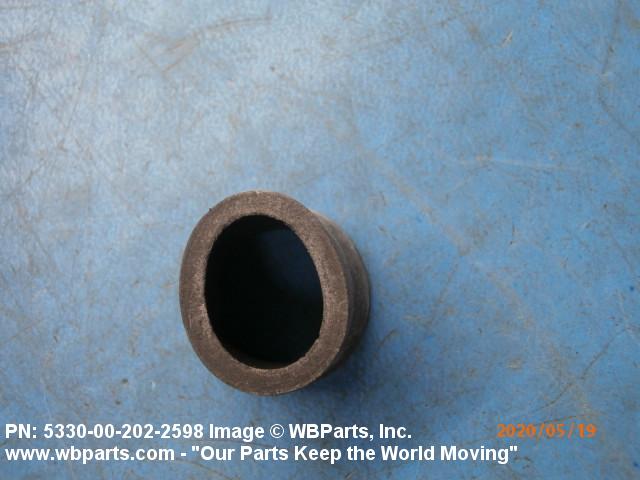

Drawings & Photos | NSN 5330-00-202-2598
Demand History | NSN 5330-00-202-2598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-202-2598 | 2020-05-127 | 10 | United States |
Cross Reference | NSN 5330-00-202-2598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202-74385REVFPC41-78-115A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-202-2598
Technical Data | NSN 5330-00-202-2598
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OR PLASTIC POLYAMIDE INTERMEDIATE RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3198 MEDIUM ASSN STD 1ST MATERIAL RESPONSE INTERMEDIATE RING |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR BOTTOM RING D2 SQUARE/RECTANGULAR TOP RING |
| INTERMEDIATE RING QUANTITY | 2 |

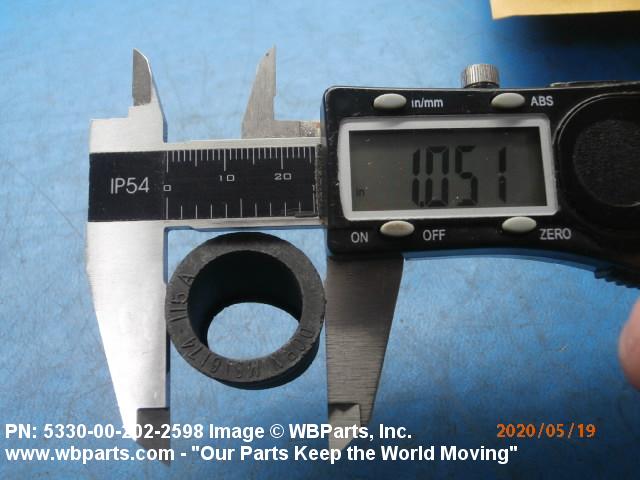

| OUTSIDE DIAMETER | 1.0515 INCHES NOMINAL |

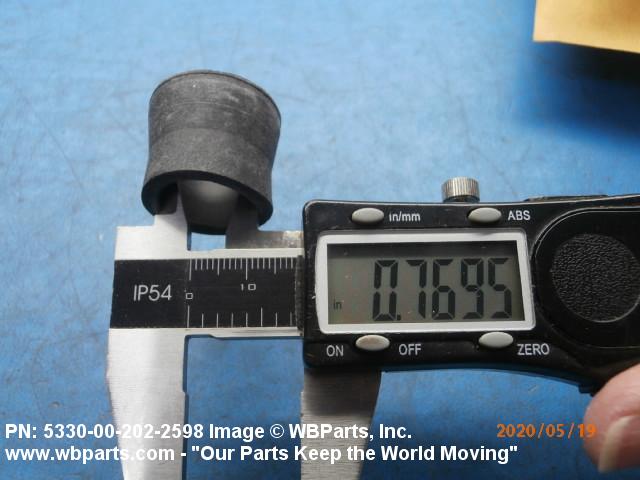

| INSIDE DIAMETER | 0.760 INCHES NOMINAL |

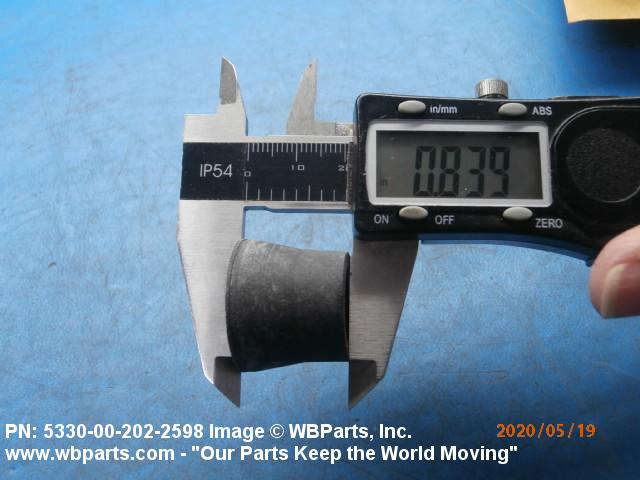

| HEIGHT | 0.9375 INCHES NOMINAL |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9000S6202-74385REVFPC41-78-115A |
Restrictions/Controls & Freight Information | NSN 5330-00-202-2598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-202-2598
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
