NSN 5330-00-202-2604 MS161895, MS16189-5, M19622/20-0006
Product Details | PACKING ASSEMBLY
5330-00-202-2604 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: MS161895, MS16189-5, M19622/20-0006, M19622/21-0006, M19622200006, M19622-20-0006, M19622210006, MILS1962220, MILS19622-20, 5330-00-202-2604, 00-202-2604, 5330002022604, 002022604
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-202-2604 | 07961 ( PACKING ASSEMBLY ) |

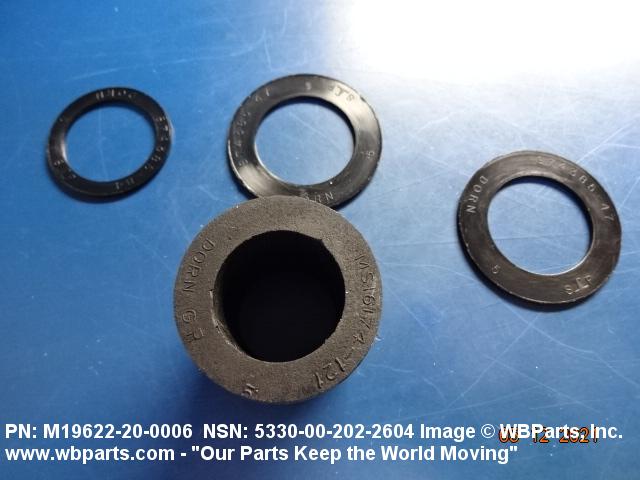

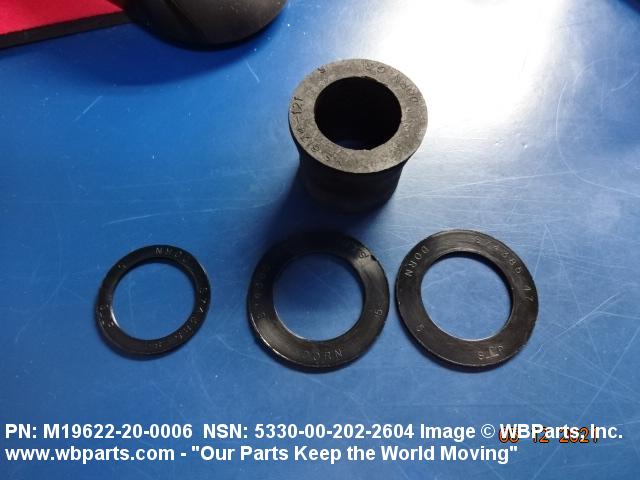

Drawings & Photos | NSN 5330-00-202-2604
Demand History | NSN 5330-00-202-2604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-202-2604 | 2022-10-293 | 397 | DIBBS |
| M19622210006 | 2021-04-118 | 8 | United States |
| 5330-00-202-2604 | 2020-08-227 | 2 | US |
| 5330-00-202-2604 | 2020-01-20 | 100 | DIBBS |
| 5330-00-202-2604 | 2019-06-168 | 150 | DIBBS |
| M19622210006 | 2019-03-78 | 25 | US |
| 5330-00-202-2604 | 2018-04-105 | 200 | DIBBS |
| 5330-00-202-2604 | 2017-02-51 | 181 | DIBBS |
| M19622200006 | 2014-10-302 | 4 | United States |
| 5330-00-202-2604 | 2014-06-153 | 25 | United Kingdom |
| M19622/20-0006 | 2012-06-158 | 50 | Mexico |
| M19622200006 | 2012-06-157 | 50 | Mexico |
| 5330-00-202-2604 | 2012-02-38 | 229 | DIBBS |
Cross Reference | NSN 5330-00-202-2604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622-20-0006 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M19622/20-0006 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M19622/21-0006 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MILS19622-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16189-5 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-202-2604
Related Products | NSN 5330-00-202-2604
Technical Data | NSN 5330-00-202-2604
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE BOTTOM RING PLASTIC POLYAMIDE AND RUBBER CHLOROPRENE CLASS CR INTERMEDIATE RING PLASTIC POLYAMIDE TOP RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6855,GR 40 MIL SPEC 2ND MATERIAL RESPONSE INTERMEDIATE RING |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR AND D53 ANGLE INTERMEDIATE RING |
| INTERMEDIATE RING QUANTITY | 2 |

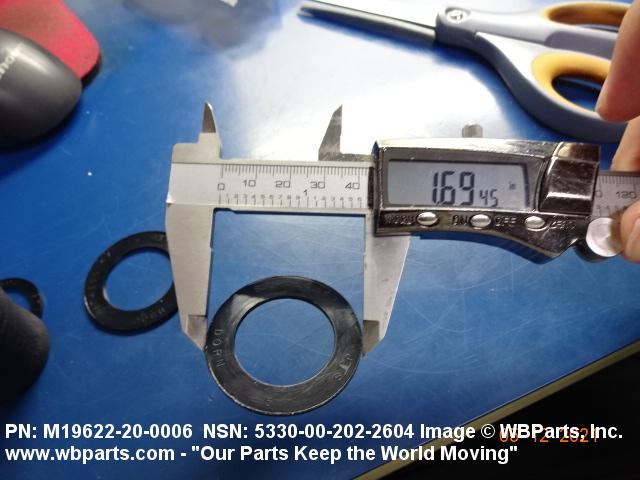

| OUTSIDE DIAMETER | 1.687 INCHES NOMINAL |

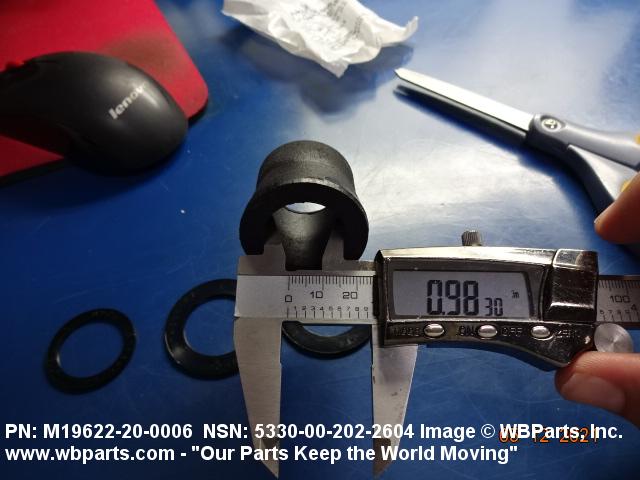

| INSIDE DIAMETER | 0.980 INCHES NOMINAL |

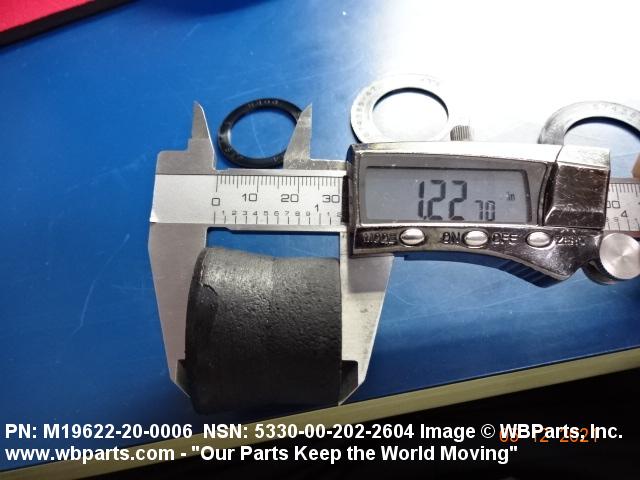

| HEIGHT | 1.375 INCHES NOMINAL |
| III FSC APPLICATION DATA | ELECTRICAL HARDWARE SUPPLIES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS19622-20 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-20-0006 |
Restrictions/Controls & Freight Information | NSN 5330-00-202-2604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-202-2604
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
