NSN 5330-00-179-0277 680623, 00-179-0277, 001790277
Product Details | PLAIN SEAL
5330-00-179-0277 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: 680623, 5330-00-179-0277, 00-179-0277, 5330001790277, 001790277
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUL 1994 | 00-179-0277 | 04250 ( SEAL, PLAIN ) |

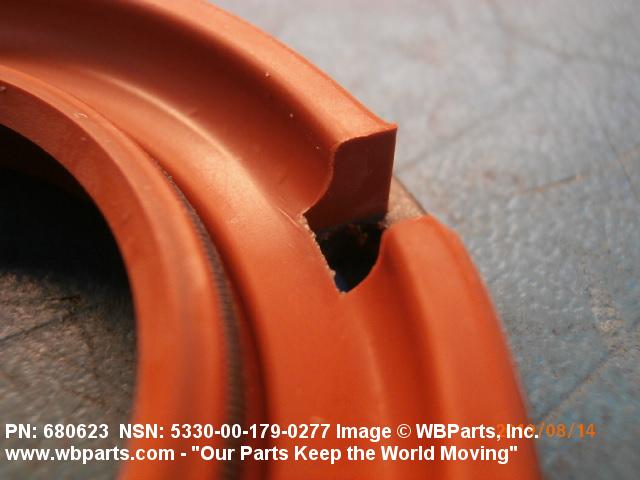

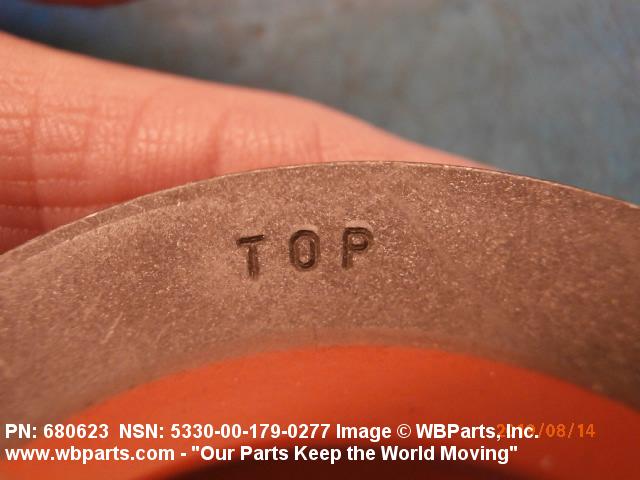

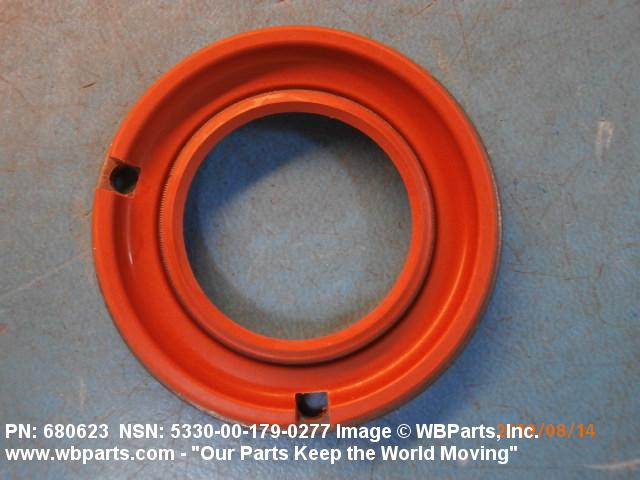

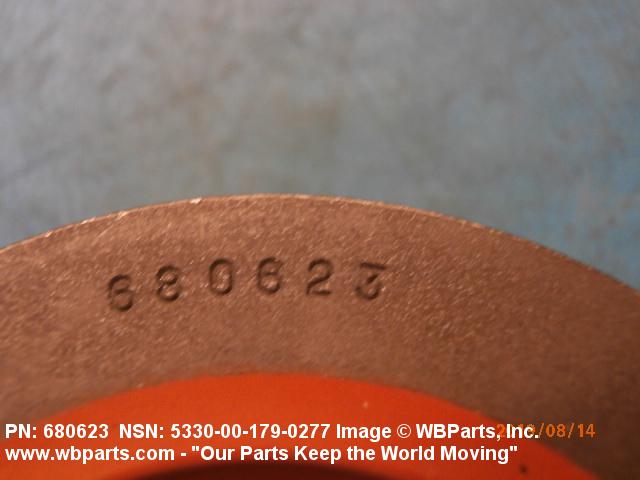

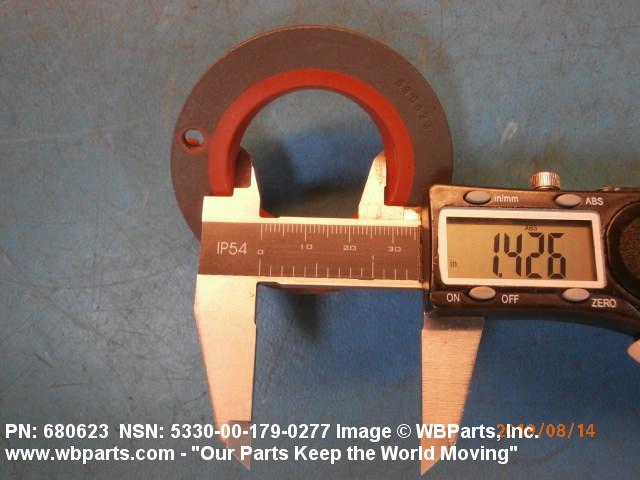

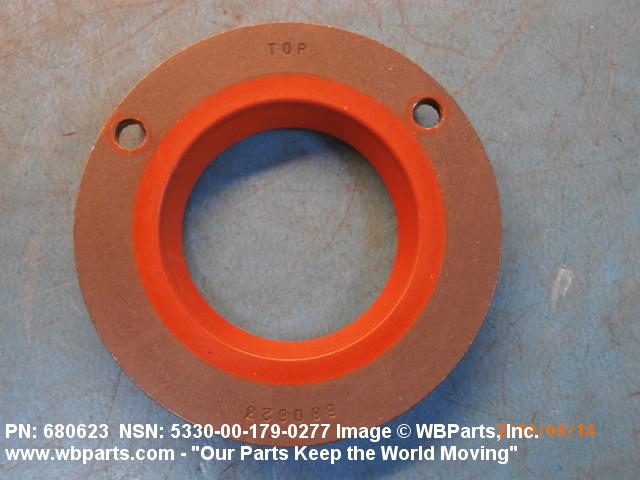

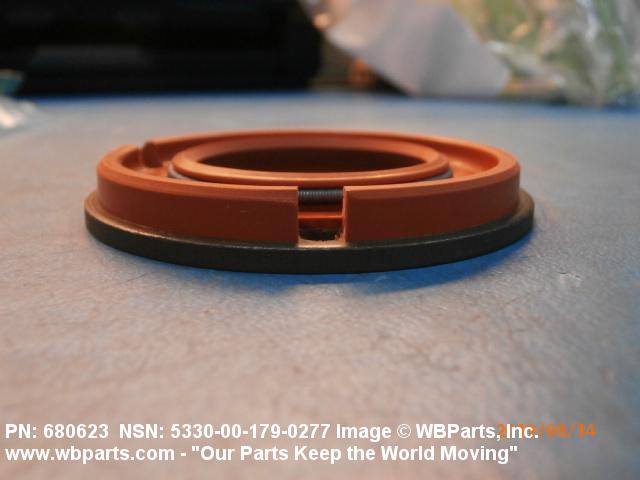

Drawings & Photos | NSN 5330-00-179-0277
Demand History | NSN 5330-00-179-0277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-179-0277 | 2019-05-136 | 10 | United States |
| 5330-00-179-0277 | 2019-05-123 | 10 | United States |
| 680623 | 2019-05-122 | 50 | DIBBS |
| 680623 | 2019-04-93 | 5 | DIBBS |
| 5330-00-179-0277 | 2012-07-185 | 55 | DIBBS |
| 5330-00-179-0277 | 2012-06-174 | 70 | DIBBS |
| 5330-00-179-0277 | 2012-03-61 | 31 | DIBBS |
Cross Reference | NSN 5330-00-179-0277
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-179-0277
Related Products | NSN 5330-00-179-0277
Technical Data | NSN 5330-00-179-0277
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | L2 SINGLE LIP |

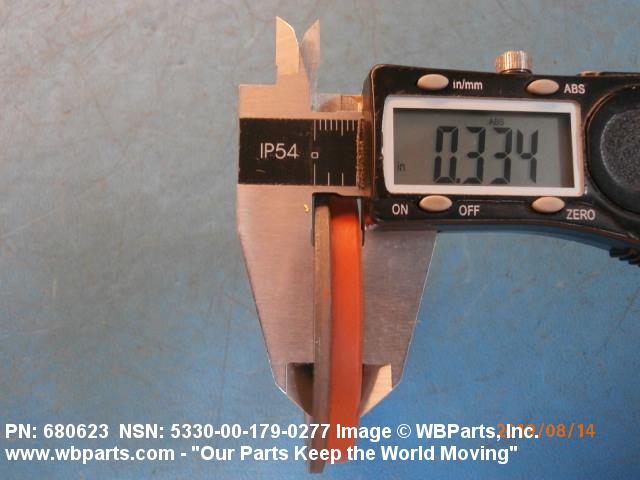

| SEAL WIDTH | 0.328 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.436 INCHES NOMINAL |

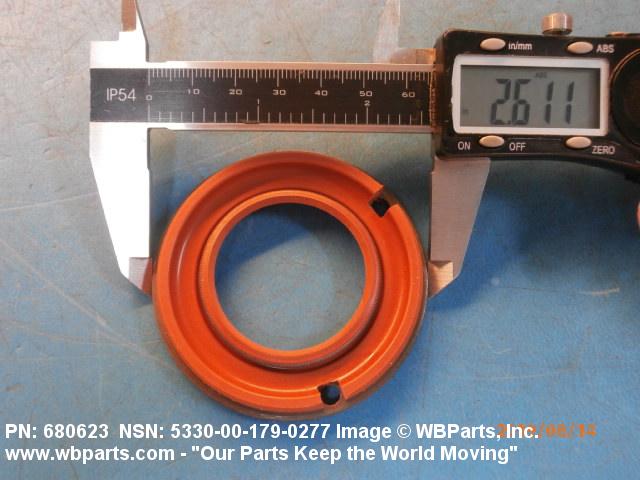

| HOUSING BORE DIAMETER | 2.600 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-179-0277
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194130 | WASHERS/GASKETS/MAINT I/C ENG |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-179-0277
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
