NSN 5330-00-162-5377 A3304PC335149, R4-6C, R46C
Product Details | GASKET
5330-00-162-5377 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: A3304PC335149, R4-6C, R46C, 5330-00-162-5377, 00-162-5377, 5330001625377, 001625377
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1973 | 00-162-5377 | 04522 ( GASKET ) |

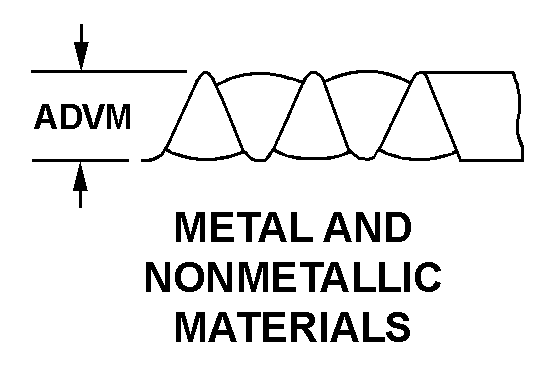

Drawings & Photos | NSN 5330-00-162-5377
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-162-5377
Technical Data | NSN 5330-00-162-5377
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS CHRYSOTILE AND STEEL COMP 304 OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F5 METAL AND ASBESTOS |
| CROSS-SECTIONAL THICKNESS | 0.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.688 INCHES NOMINAL |
| APERTURE DIAMETER | 1.312 INCHES NOMINAL |
| III TEMP RATING | 875.0 DEG FAHRENHEIT |
| III MAXIMUM PRESSURE RATING | 600.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5330-00-162-5377
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-162-5377
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
