NSN 5330-00-161-1596 3830K74P001, 00-161-1596, 001611596
Product Details | GASKET
5330-00-161-1596 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 3830K74P001, 5330-00-161-1596, 00-161-1596, 5330001611596, 001611596
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1972 | 00-161-1596 | 04522 ( GASKET ) |

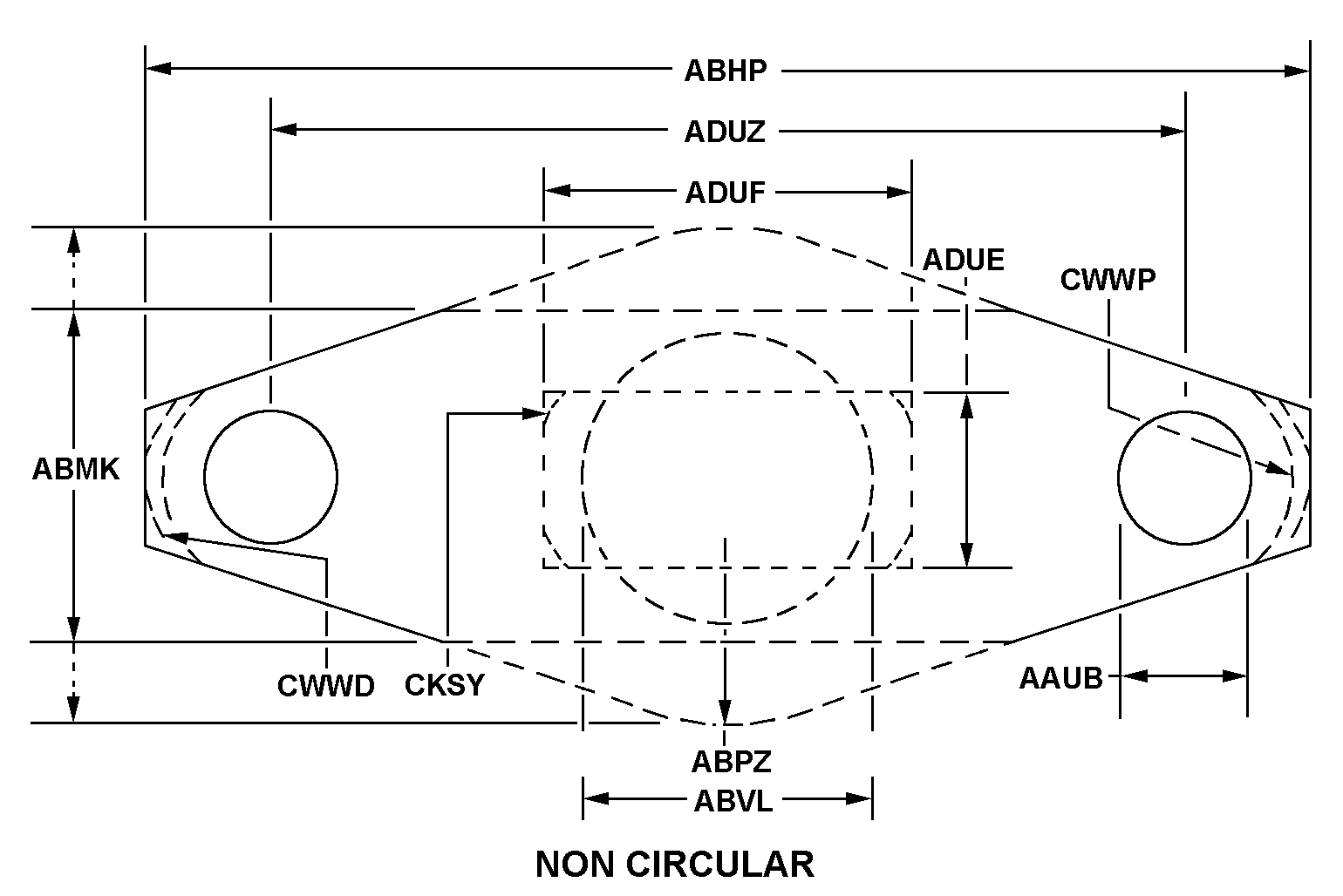

Drawings & Photos | NSN 5330-00-161-1596
Demand History | NSN 5330-00-161-1596
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-161-1596 | 2023-06-174 | 2 | US |
| 001611596 | 2015-09-253 | 1 | US |
Cross Reference | NSN 5330-00-161-1596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3830K74P001 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-161-1596
Technical Data | NSN 5330-00-161-1596
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A22A10A FSCM 97424 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.007 INCHES NOMINAL |
| STYLE DESIGNATOR | B22B NON-CIRCULAR |
| HOLE DIAMETER | 0.130 INCHES NOMINAL |
| OVERALL LENGTH | 1.320 INCHES NOMINAL |
| OVERALL WIDTH | 0.880 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.160 INCHES NOMINAL |
| APERTURE WIDTH | 0.530 INCHES NOMINAL |
| APERTURE LENGTH | 0.530 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-161-1596
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-00-161-1596
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
