NSN 5330-00-080-1492 10921234, 00-080-1492, 000801492
Product Details | GASKET
5330-00-080-1492 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 10921234, 5330-00-080-1492, 00-080-1492, 5330000801492, 000801492
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-080-1492 | 04522 ( GASKET ) |

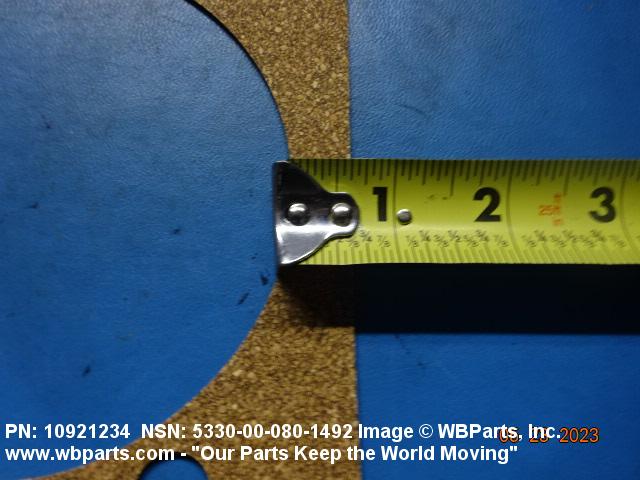

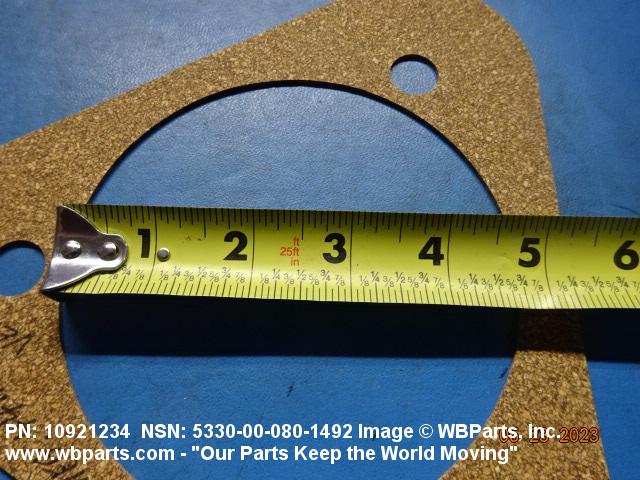

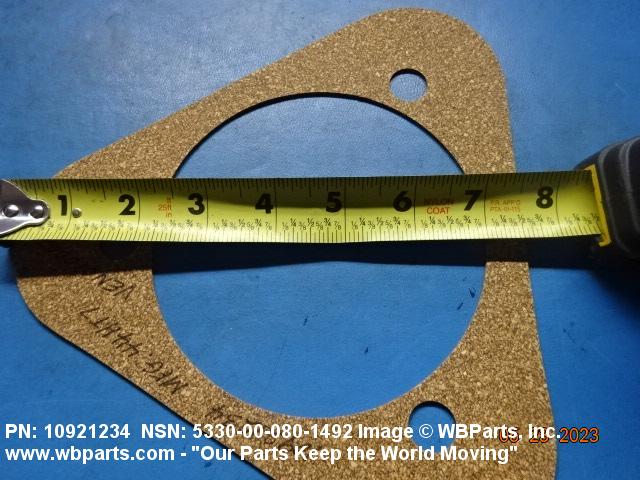

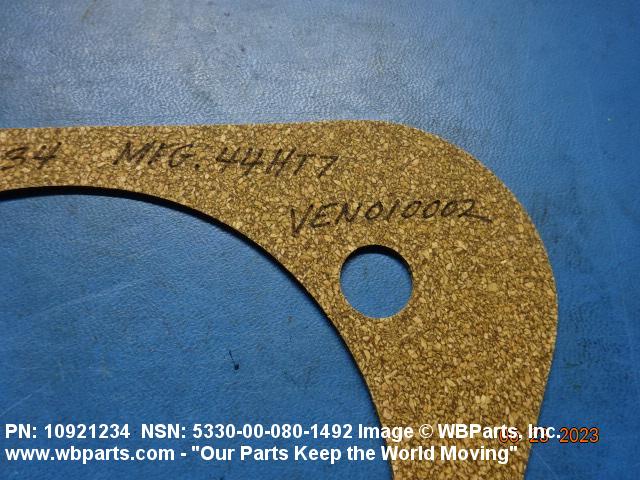

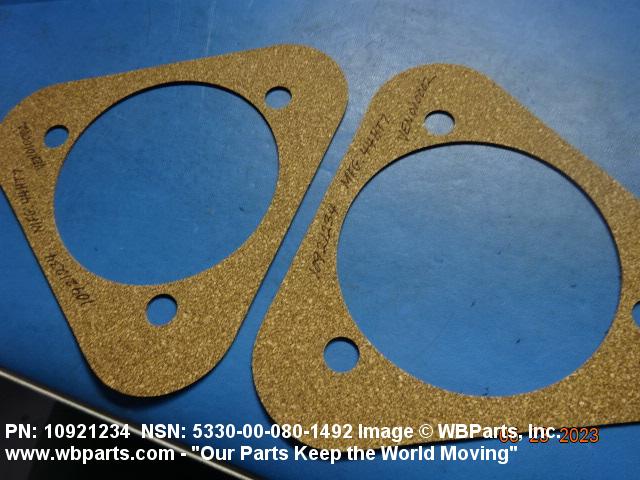

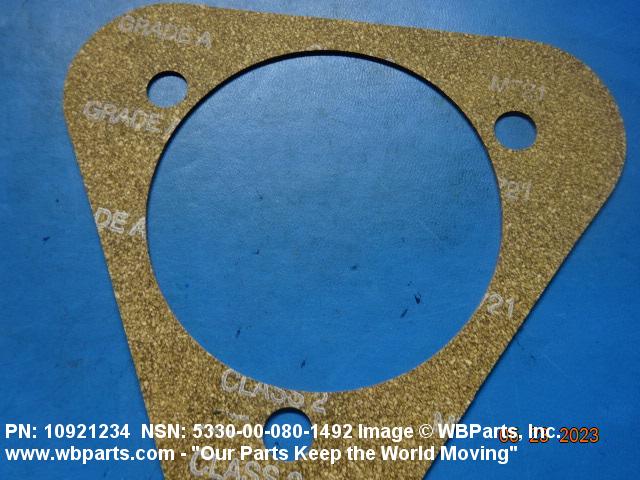

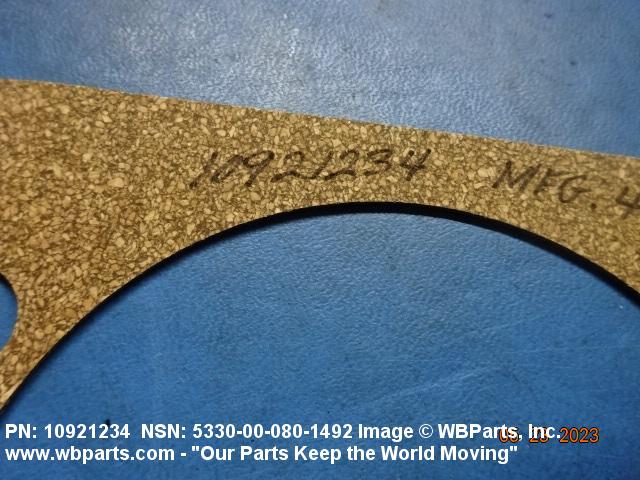

Drawings & Photos | NSN 5330-00-080-1492
Demand History | NSN 5330-00-080-1492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-080-1492 | 2024-09-252 | 1156 | DIBBS |
| 5330-00-080-1492 | 2023-09-262 | 428 | DIBBS |
| 5330-00-080-1492 | 2023-05-137 | 2 | Poland |
| 5330-00-080-1492 | 2023-05-136 | 2 | Poland |
| 5330-00-080-1492 | 2023-04-115 | 2 | Poland |
| 5330-00-080-1492 | 2020-03-65 | 1 | US |
| 5330-00-080-1492 | 2018-10-304 | 1 | DIBBS-RFPs |
| 5330-00-080-1492 | 2018-02-42 | 717 | DIBBS |
| 5330-00-080-1492 | 2017-09-264 | 484 | DIBBS |
| 5330-00-080-1492 | 2016-08-221 | 12 | Israel |
| 5330-00-080-1492 | 2012-09-265 | 30000 | US |
| 5330-00-080-1492 | 2012-08-244 | 33495 | DIBBS |
| 5330-00-080-1492 | 2012-05-138 | 935 | DIBBS |
| 5330-00-080-1492 | 2012-04-97 | 221 | DIBBS |
| 5330-00-080-1492 | 2012-03-74 | 221 | DIBBS |
| 5330-00-080-1492 | 2011-11-325 | 1000 | DIBBS |
| 5330-00-080-1492 | 2011-09-271 | 522 | DIBBS |
| 5330-00-080-1492 | 2010-06-175 | 330 | DIBBS |
| 5330-00-080-1492 | 2010-04-106 | 6 | United Arab Emirates |
| 5330-00-080-1492 | 2010-02-50 | 179 | DIBBS |
Cross Reference | NSN 5330-00-080-1492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10921234 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-080-1492
Related Products | NSN 5330-00-080-1492
Technical Data | NSN 5330-00-080-1492
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR AND CORK OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-12803,P2246A MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| HOLE DIAMETER | 0.593 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| BOLT CIRCLE DIAMETER | 6.000 INCHES NOMINAL |
| APERTURE DIAMETER | 4.968 INCHES MINIMUM AND 5.000 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 1.531 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-080-1492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-080-1492
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
