NSN 5330-00-018-0792 58A3567, 00-018-0792, 000180792
Product Details | GASKET
5330-00-018-0792 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 58A3567, 5330-00-018-0792, 00-018-0792, 5330000180792, 000180792
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1997 | 00-018-0792 | 04522 ( GASKET ) |

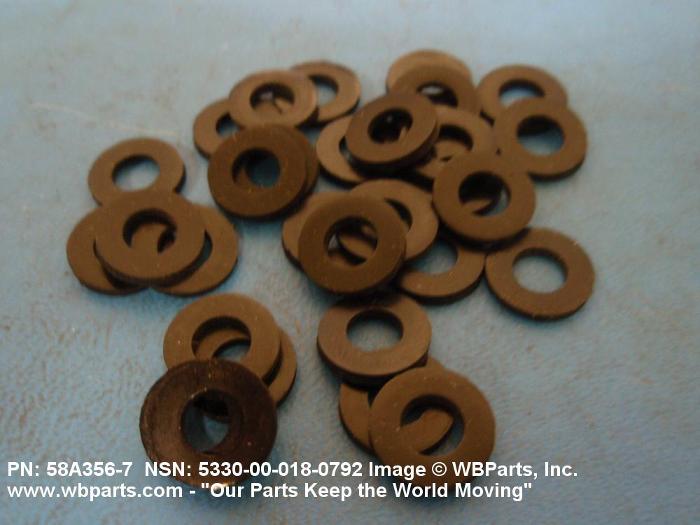

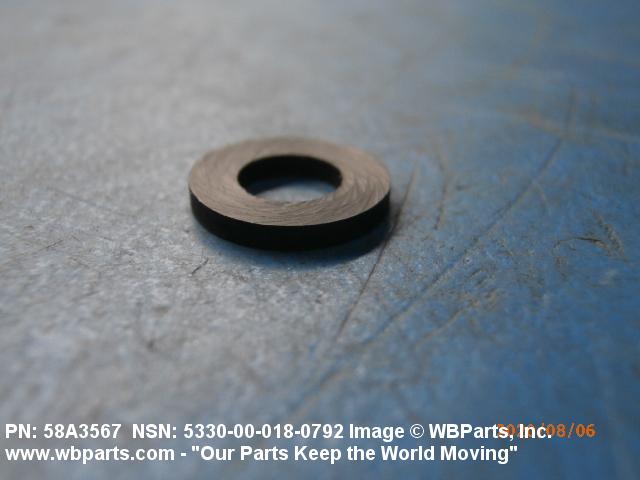

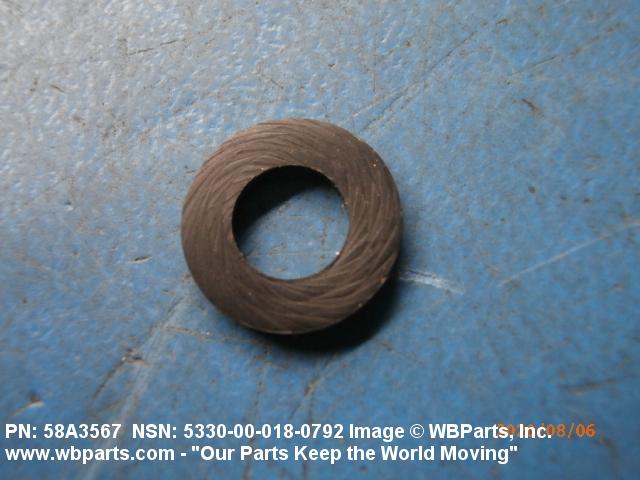

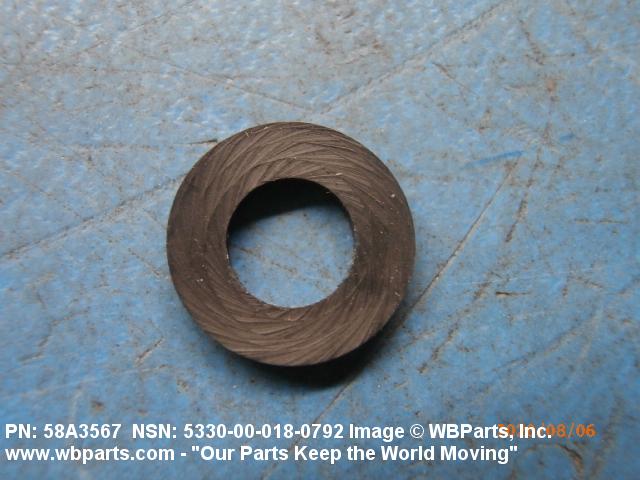

Drawings & Photos | NSN 5330-00-018-0792
Demand History | NSN 5330-00-018-0792
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 58A3567 | 2020-07-189 | 1 | United States |
| 58A3567 | 2018-04-106 | 20 | United States |
| 5330-00-018-0792 | 2018-04-100 | 20 | United States |
| 58A3567 | 2018-04-92 | 20 | United States |
| 5330-00-018-0792 | 2017-03-88 | 10 | Denmark |
| 58A3567 | 2014-08-219 | 100 | US |
| 5330-00-018-0792 | 2013-07-192 | 1221 | DIBBS |
| 5330-00-018-0792 | 2013-02-45 | 1378 | DIBBS |
| 5330-00-018-0792 | 2010-12-354 | 30 | United States |
| 5330-00-018-0792 | 2010-04-116 | 20 | Netherlands |
| 5330-00-018-0792 | 2009-01-12 | 10 | DIBBS |
| 5330-00-018-0792 | 2008-10-298 | 2421 | DIBBS |
| 5330-00-018-0792 | 2008-09-262 | 536 | DIBBS |
| 5330-00-018-0792 | 2008-08-238 | 10 | DIBBS |
| 5330-00-018-0792 | 2008-07-198 | 489 | DIBBS |
| 5330-00-018-0792 | 2008-04-98 | 1392 | DIBBS |
| 5330-00-018-0792 | 2008-02-57 | 30 | DIBBS |
| 5330-00-018-0792 | 2007-09-249 | 15000 | US |
| 58A3567 | 2006-10-283 | 1400 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-018-0792
Related Products | NSN 5330-00-018-0792
Technical Data | NSN 5330-00-018-0792
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855,CLASS II MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 85.0 SHORE DUROMETER A MINIMUM AND 90.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

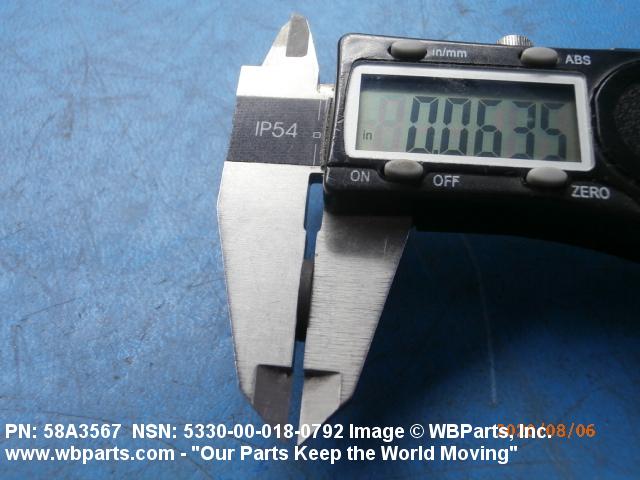

| CROSS-SECTIONAL THICKNESS | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

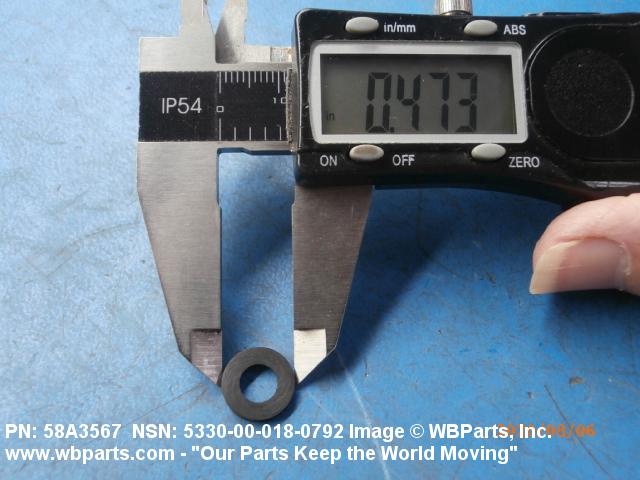

| OUTSIDE DIAMETER | 0.484 INCHES MINIMUM AND 0.489 INCHES MAXIMUM |

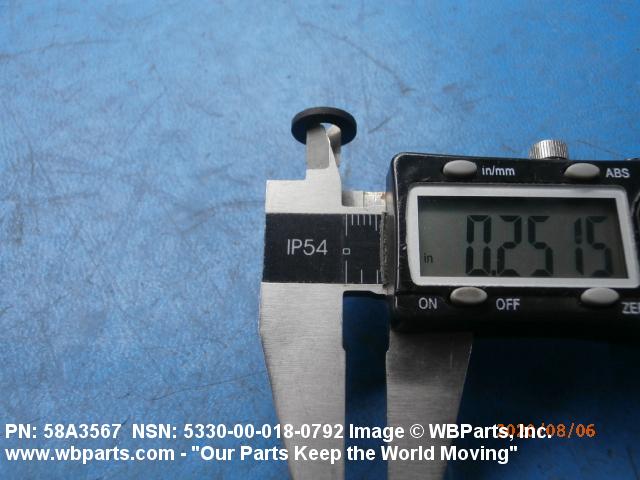

| APERTURE DIAMETER | 0.250 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | ZZZV |
| III FSC APPLICATION DATA | LIFE PRESERVER INFLATOR,INLET |
Restrictions/Controls & Freight Information | NSN 5330-00-018-0792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-018-0792
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
