NSN 5330-00-016-6320 A7196, A-7196, ARP11548
Product Details | GASKET

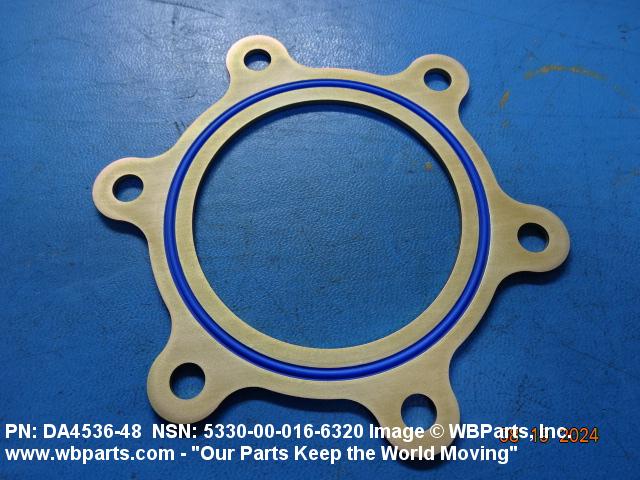

5330-00-016-6320 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: A7196, A-7196, ARP11548, ARP-115-48, C41448, C414-48, DA453648, DA4536-48, 5030248, 50302-48, 64861948, 648619-48, 5330-00-016-6320, 00-016-6320, 5330000166320, 000166320
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 APR 1967 | 00-016-6320 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-016-6320
Demand History | NSN 5330-00-016-6320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-016-6320 | 2024-09-24 | 50 | Taiwan |
| 5330-00-016-6320 | 2024-08-05 | 2 | United States |
| 5030248 | 2024-07-08 | 50 | Taiwan |
| 5330-00-016-6320 | 2024-07-05 | 50 | Taiwan |
| 50302-48 | 2023-07-06 | 565 | DIBBS |
| 648619-48 | 2023-07-06 | 565 | DIBBS |
| A-7196 | 2023-07-06 | 565 | DIBBS |
| DA4536-48 | 2023-07-06 | 565 | DIBBS |
| 50302-48 | 2022-04-13 | 212 | DIBBS |
| 648619-48 | 2022-04-13 | 212 | DIBBS |
| A-7196 | 2022-04-13 | 212 | DIBBS |
| DA4536-48 | 2022-04-13 | 212 | DIBBS |
| 50302-48 | 2022-03-29 | 212 | DIBBS |
| 648619-48 | 2022-03-29 | 212 | DIBBS |
| A-7196 | 2022-03-29 | 212 | DIBBS |
| DA4536-48 | 2022-03-29 | 212 | DIBBS |
| 50302-48 | 2022-03-17 | 587 | DIBBS |
| 648619-48 | 2022-03-17 | 587 | DIBBS |
| A-7196 | 2022-03-17 | 587 | DIBBS |
| DA4536-48 | 2022-03-17 | 587 | DIBBS |
| 50302-48 | 2020-10-08 | 796 | DIBBS |
| 648619-48 | 2020-10-08 | 796 | DIBBS |
| A-7196 | 2020-10-08 | 796 | DIBBS |
| DA4536-48 | 2020-10-08 | 796 | DIBBS |
| 50302-48 | 2020-07-19 | 761 | DIBBS |
| 648619-48 | 2020-07-19 | 761 | DIBBS |
| A-7196 | 2020-07-19 | 761 | DIBBS |
| DA4536-48 | 2020-07-19 | 761 | DIBBS |
| 5330-00-016-6320 | 2019-01-16 | 1 | DIBBS-RFPs |
| 5330-00-016-6320 | 2017-02-22 | 6 | MANUAL |
| 5330-00-016-6320 | 2015-03-09 | 767 | DIBBS |
| 5330-00-016-6320 | 2015-02-02 | 600 | DIBBS |
| 5330-00-016-6320 | 2014-12-29 | 475 | DIBBS |
| 5330-00-016-6320 | 2014-12-17 | 475 | DIBBS |
| 5330-00-016-6320 | 2013-10-26 | 600 | DIBBS |
| 5330-00-016-6320 | 2013-10-17 | 1 | DIBBS-RFPs |
| 5330-00-016-6320 | 2013-10-10 | 600 | DIBBS |
| 5330-00-016-6320 | 2013-09-30 | 1 | DIBBS-RFPs |
| 5330-00-016-6320 | 2012-11-02 | 500 | DIBBS |
| 5330-00-016-6320 | 2012-10-01 | 5 | NL |
| 5330-00-016-6320 | 2011-12-15 | 380 | DIBBS |
| 5330-00-016-6320 | 2011-01-08 | 206 | DIBBS |
| 5330-00-016-6320 | 2010-03-15 | 540 | DIBBS |
| 5330-00-016-6320 | 2009-10-19 | 540 | DIBBS |
| 5330-00-016-6320 | 2009-03-13 | 1426 | DIBBS |
Cross Reference | NSN 5330-00-016-6320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50302-48 | 77969 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| 50302-48 | 98159 | RUBBERCRAFT CORPORATION OF CALIFORNIA, LTD |
| 648619-48 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| A-7196 | 66001 | PARKER HANNIFIN CORPORATION DIV COMPOSITE SEALING SYSTEMS |
| A-7196 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| ARP-115-48 | 0HCJ7 | ACE RUBBER PRODUCTS INC |
| C414-48 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| DA4536-48 | 95272 | STILLMAN SEAL CORPORATION |
| DA4536-48 | SW461 | HUTCHINSON SEAL DE MEXICO STILLMAN SEAL DIVISION |
