NSN 5330-00-004-1390 7469611, 746961-1, 00-004-1390
Product Details | GASKET
5330-00-004-1390 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 7469611, 746961-1, 5330-00-004-1390, 00-004-1390, 5330000041390, 000041390
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1972 | 00-004-1390 | 04522 ( GASKET ) |

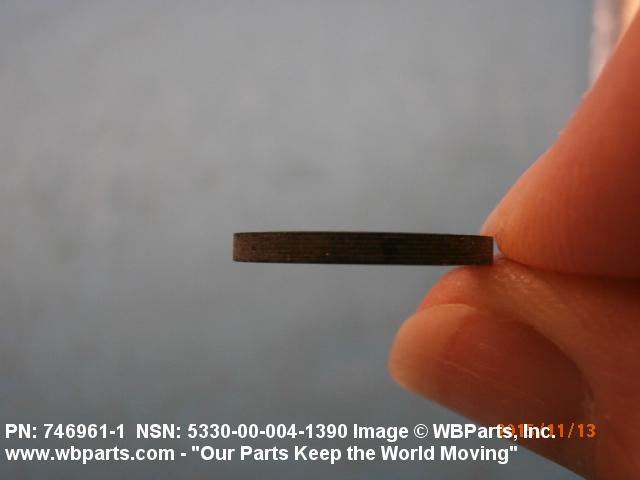

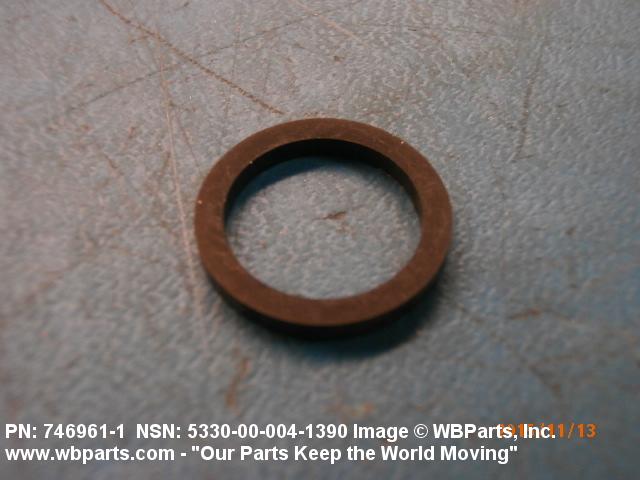

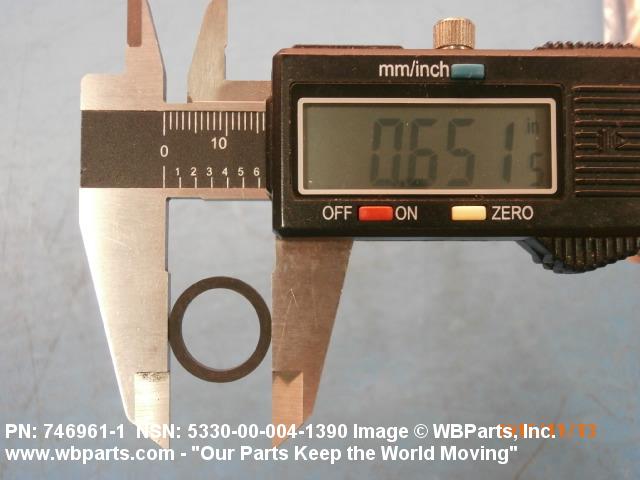

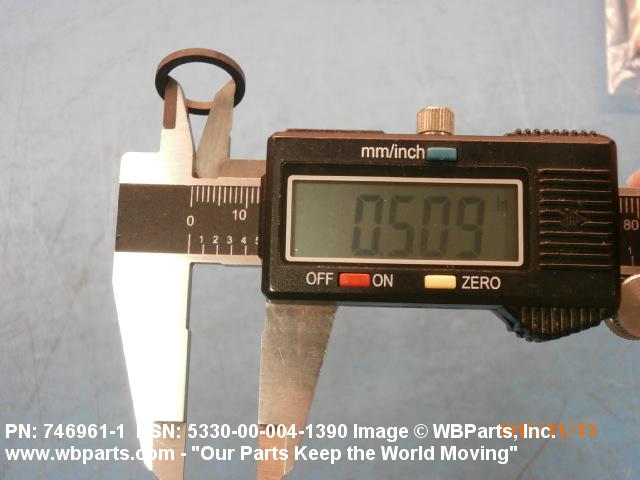

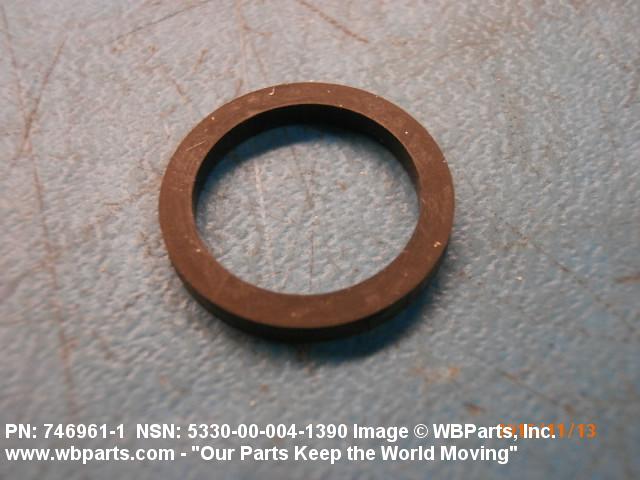

Drawings & Photos | NSN 5330-00-004-1390
Demand History | NSN 5330-00-004-1390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7469611 | 2022-01-12 | 89 | Malaysia |
| 5330-00-004-1390 | 2022-01-11 | 89 | Malaysia |
| 746961-1 | 2020-03-75 | 1038 | DIBBS |
| 746961-1 | 2020-01-23 | 1500 | DIBBS |
| 746961-1 | 2020-01-13 | 1187 | DIBBS |
| 746961-1 | 2020-01-05 | 1187 | DIBBS |
| 746961-1 | 2019-09-267 | 3 | DIBBS |
| 746961-1 | 2019-09-267 | 6 | DIBBS |
| 746961-1 | 2019-09-267 | 10 | DIBBS |
| 746961-1 | 2019-09-267 | 2 | DIBBS |
| 746961-1 | 2019-09-261 | 1 | DIBBS |
| 746961-1 | 2019-09-259 | 3 | DIBBS |
| 746961-1 | 2019-09-259 | 6 | DIBBS |
| 746961-1 | 2019-09-259 | 10 | DIBBS |
| 746961-1 | 2019-09-254 | 2 | DIBBS |
| 746961-1 | 2019-09-254 | 4 | DIBBS |
| 7469611 | 2018-09-257 | 4 | Canada |
| 5330-00-004-1390 | 2015-11-306 | 10 | United States |
| 5330-00-004-1390 | 2015-10-303 | 12 | United States |
| 5330-00-004-1390 | 2015-10-302 | 12 | United States |
| 5330-00-004-1390 | 2010-11-323 | 801 | DIBBS |
| 5330-00-004-1390 | 2010-10-291 | 513 | DIBBS |
| 5330-00-004-1390 | 2010-09-264 | 10 | Portugal |
| 5330-00-004-1390 | 2010-07-211 | 519 | DIBBS |
| 5330-00-004-1390 | 2009-10-274 | 1100 | DIBBS |
| 5330-00-004-1390 | 2009-09-266 | 1100 | US |
| 5330-00-004-1390 | 2009-09-264 | 1100 | DIBBS |
Cross Reference | NSN 5330-00-004-1390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 746961-1 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-004-1390
Related Products | NSN 5330-00-004-1390
Technical Data | NSN 5330-00-004-1390
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 163 FSCM 73030 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 0.664 INCHES MINIMUM AND 0.674 INCHES MAXIMUM |
| APERTURE DIAMETER | 0.506 INCHES MINIMUM AND 0.532 INCHES MAXIMUM |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 746961-1 |
Restrictions/Controls & Freight Information | NSN 5330-00-004-1390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-004-1390
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
