Product Details | SCREW THREAD INSERT

5325-01-619-6949 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: NAS18343K375, NAS1834-3K375 , 5325-01-619-6949, 01-619-6949, 5325016196949, 016196949

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 2013164 01-619-6949

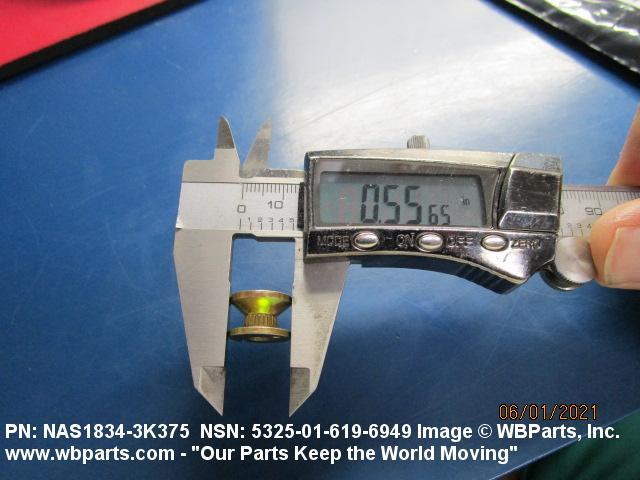

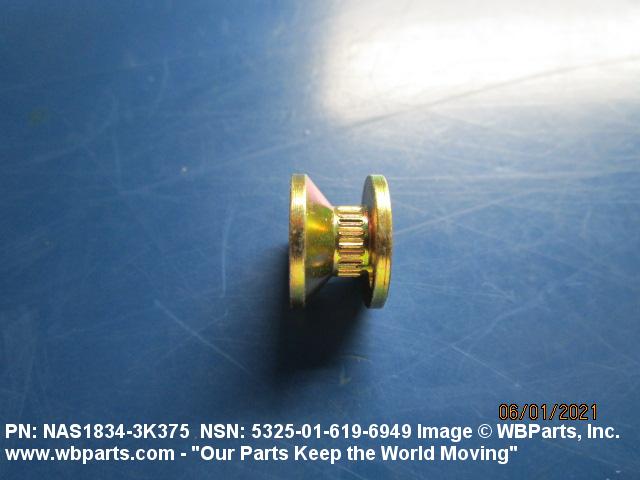

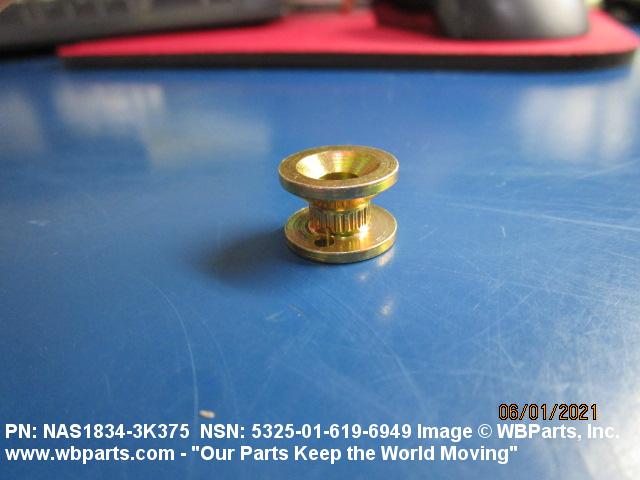

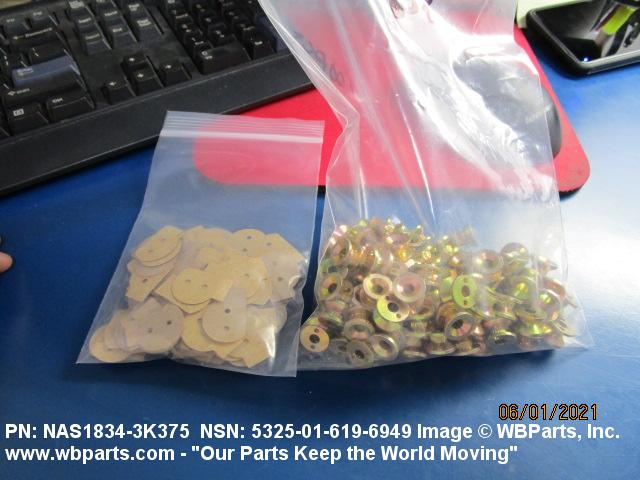

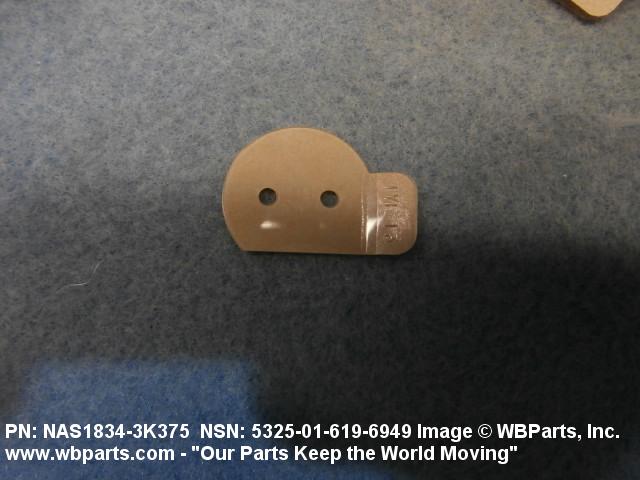

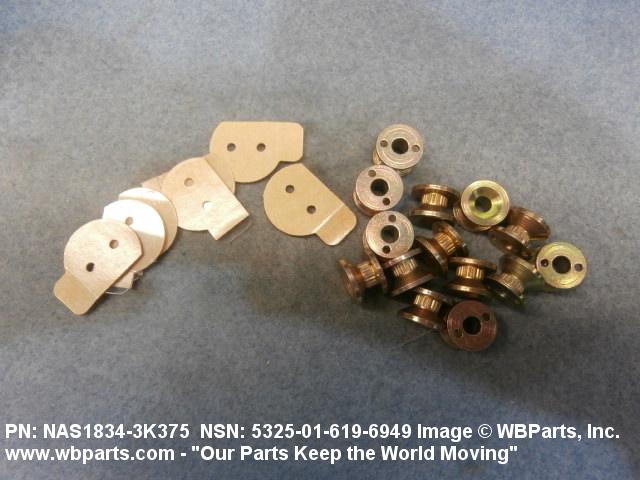

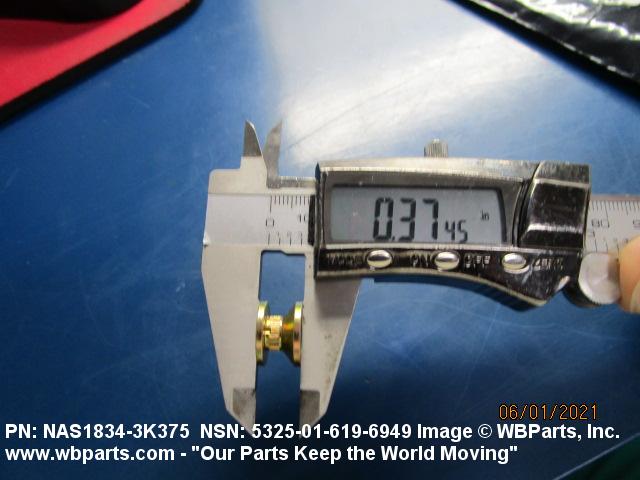

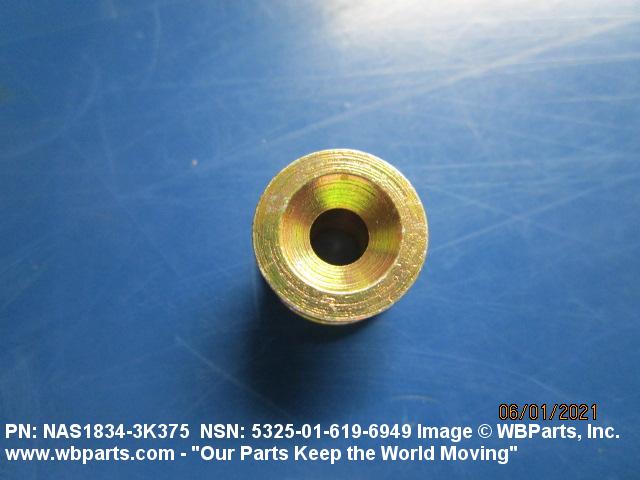

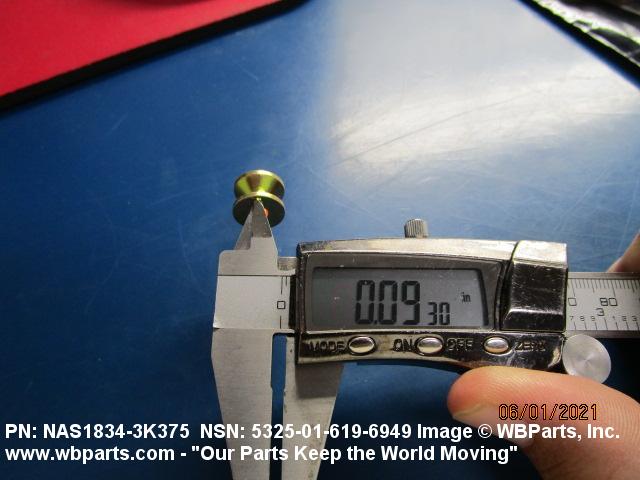

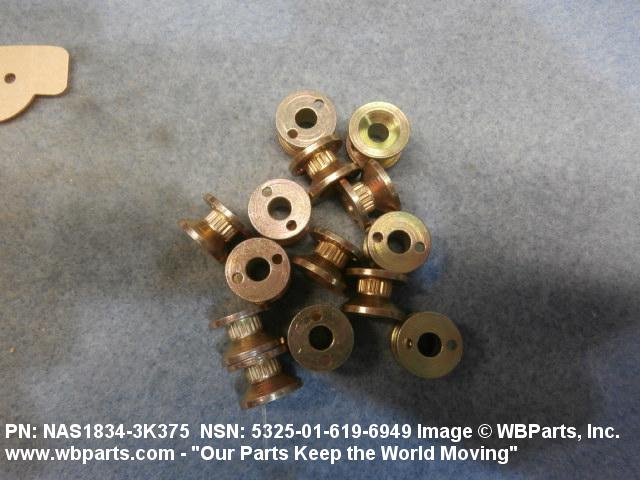

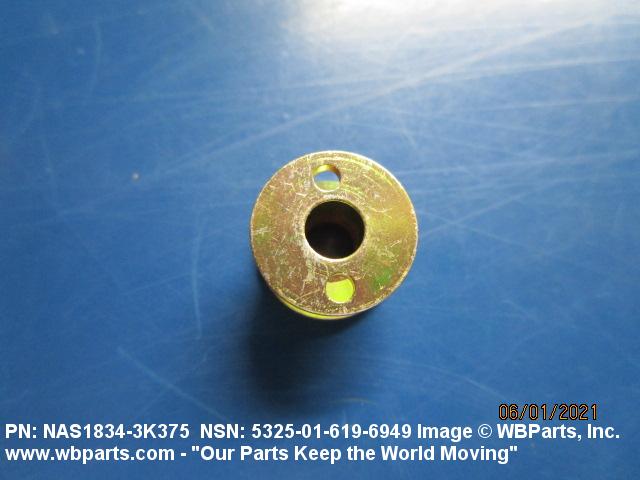

Drawings & Photos | NSN 5325-01-619-6949


Demand History | NSN 5325-01-619-6949

Part Number Request Date QTY Origin
NAS18343K375 2023-08-234 800 US
NAS18343K375 2023-08-228 500 US
NAS18343K375 2021-07-182 1 FR
NAS18343K375 2020-10-295 100 United States
NAS18343K375 2010-03-70 500 Switzerland

Cross Reference | NSN 5325-01-619-6949

Part Number Cage Code Manufacturer
NAS1834-3K375 81205 THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-619-6949

Technical Data | NSN 5325-01-619-6949

Characteristic Specifications
III PART NAME ASSIGNED BY CONTROLLING AGENCY INSERT

Restrictions/Controls & Freight Information | NSN 5325-01-619-6949

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
