Product Details | SCREW THREAD INSERT
5325-01-615-3206 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: 42R19M07F09, 42R19-M07-F09 , 5325-01-615-3206, 01-615-3206, 5325016153206, 016153206
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013009 | 01-615-3206 | 11444 ( INSERT, SCREW THREAD ) |
Drawings & Photos | NSN 5325-01-615-3206
Demand History | NSN 5325-01-615-3206
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 42R19-M07-F09 | 2021-08-220 | 166 | DIBBS |
| 42R19-M07-F09 | 2021-05-129 | 98 | DIBBS |
| 42R19-M07-F09 | 2019-09-254 | 136 | DIBBS |
| 5325-01-615-3206 | 2019-08-233 | 30 | United States |
| 42R19M07F09 | 2019-08-220 | 30 | United States |
| 5325-01-615-3206 | 2019-04-120 | 25 | United States |
| 5325-01-615-3206 | 2019-04-120 | 50 | United States |
| 42R19-M07-F09 | 2019-04-112 | 50 | DIBBS |
| 5325-01-615-3206 | 2018-09-263 | 50 | DIBBS |
| 5325-01-615-3206 | 2018-08-221 | 21 | DIBBS |
| 5325-01-615-3206 | 2018-05-122 | 20 | DIBBS |
| 5325-01-615-3206 | 2018-02-42 | 20 | DIBBS |
| 5325-01-615-3206 | 2017-02-37 | 132 | DIBBS |
| 5325-01-615-3206 | 2013-10-299 | 8 | DIBBS |
| 5325-01-615-3206 | 2013-10-283 | 8 | DIBBS |
| 42R19M07F09 | 2012-06-166 | 13 | United States |
Cross Reference | NSN 5325-01-615-3206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 42R19-M07-F09 | 04729 | UNICORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-615-3206
Technical Data | NSN 5325-01-615-3206
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

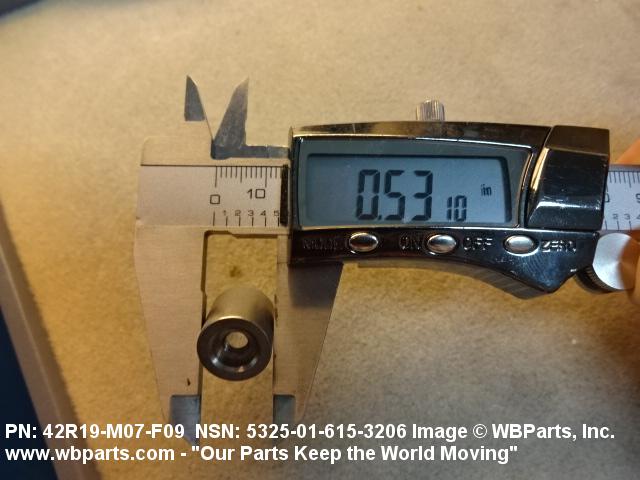

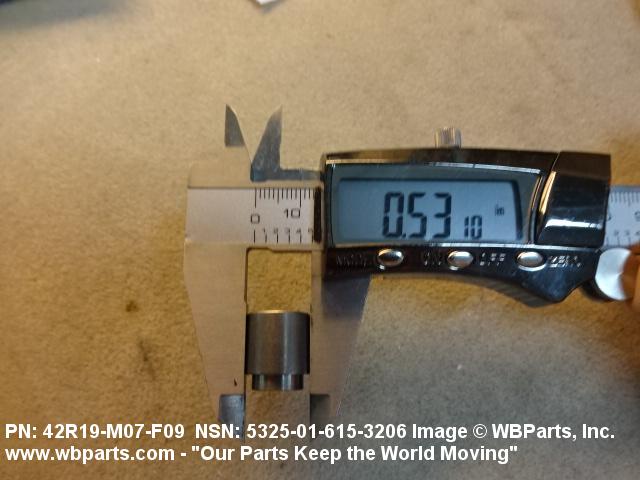

| FLANGE DIAMETER | 0.531 INCHES NOMINAL |
| FLANGE THICKNESS | 0.500 INCHES NOMINAL |

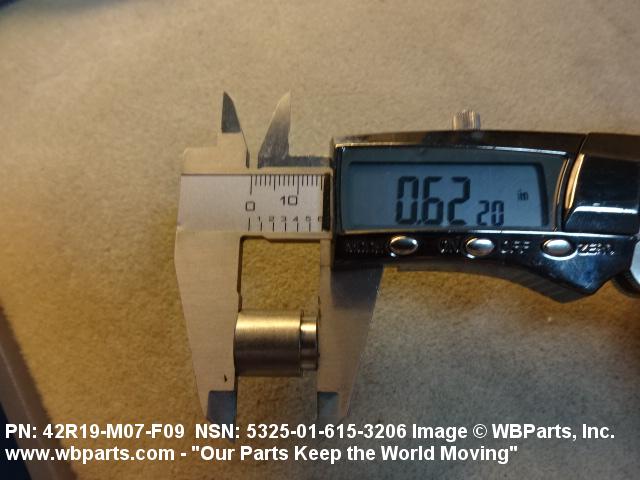

| LENGTH | 0.625 INCHES NOMINAL |
| COUNTERSINK ANGLE | 45.0 DEGREES NOMINAL |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5325-01-615-3206
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
