NSN 5325-01-587-2083 50005W14, 50-005W14, 01-587-2083
Product Details | TURNLOCK FASTENER STUD
5325-01-587-2083 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: 50005W14, 50-005W14, 5325-01-587-2083, 01-587-2083, 5325015872083, 015872083
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUL 2010 | 01-587-2083 | 18421 ( STUD, TURNLOCK FASTENER ) |

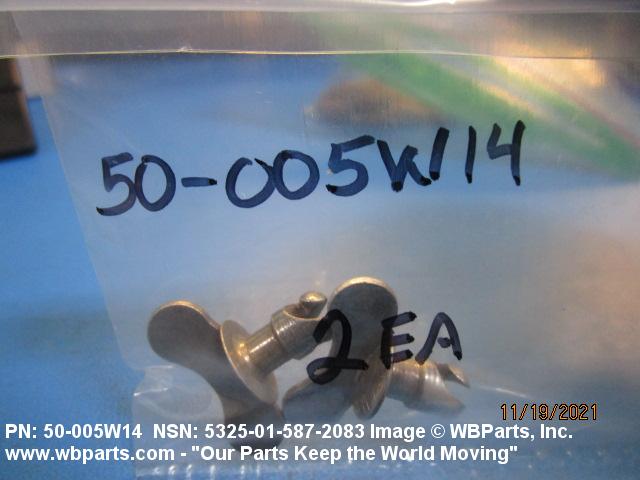

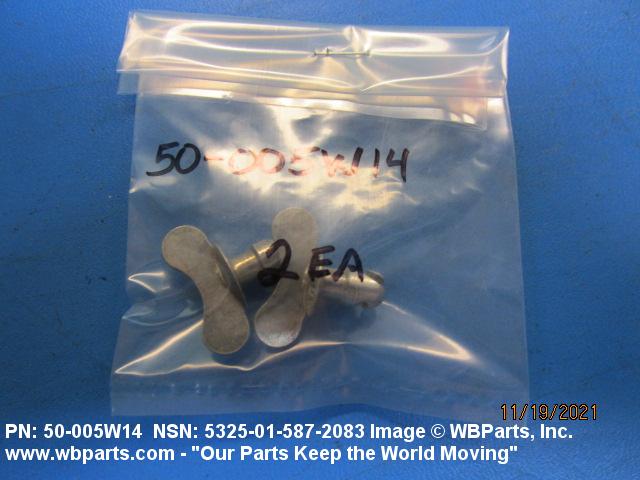

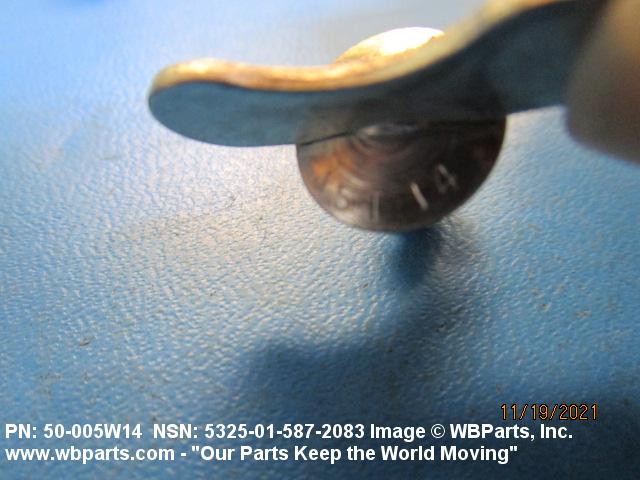

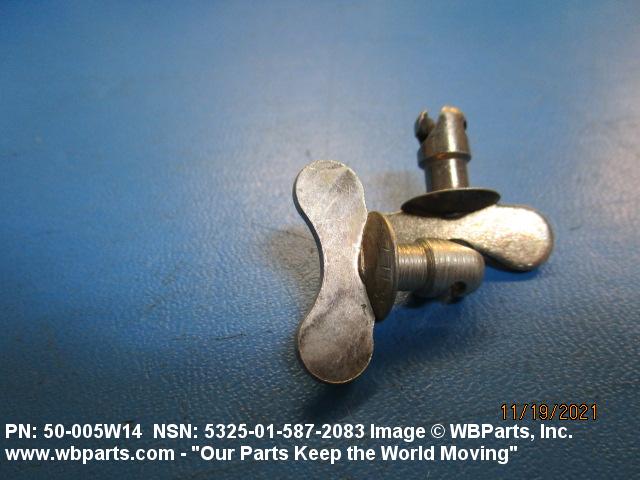

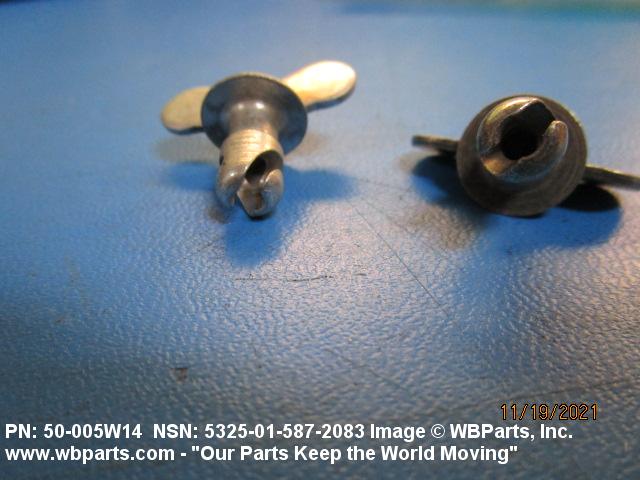

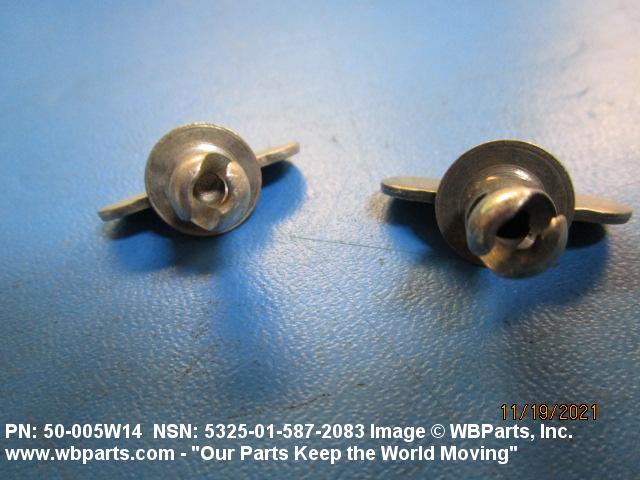

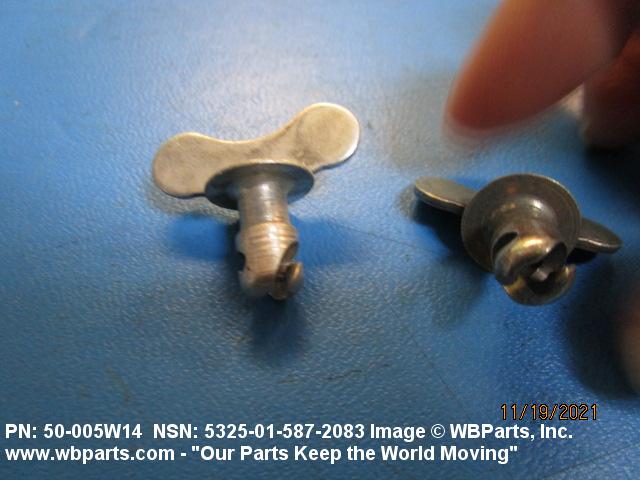

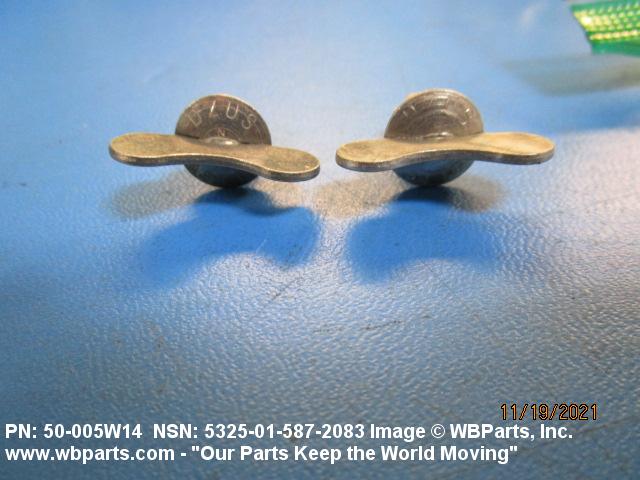

Drawings & Photos | NSN 5325-01-587-2083
Demand History | NSN 5325-01-587-2083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-587-2083 | 2023-11-324 | 12 | United States |
| 50005W14 | 2021-11-312 | 2 | Germany |
| 50005W14 | 2021-11-307 | 2 | Germany |
| 50005W14 | 2021-10-302 | 2 | Turkey |
| 50-005W14 | 2020-08-243 | 1 | DIBBS |
| 50-005W14 | 2020-06-156 | 1 | DIBBS |
| 50-005W14 | 2019-08-241 | 2 | DIBBS |
| 50-005W14 | 2019-07-192 | 5 | DIBBS |
| 5325-01-587-2083 | 2018-02-51 | 1 | DIBBS |
| 5325-01-587-2083 | 2018-02-51 | 5 | DIBBS |
| 5325-01-587-2083 | 2018-01-29 | 13 | DIBBS |
| 5325-01-587-2083 | 2018-01-01 | 5 | DIBBS |
| 5325-01-587-2083 | 2017-12-361 | 1 | DIBBS |
| 5325-01-587-2083 | 2017-10-282 | 2 | DIBBS |
| 5325-01-587-2083 | 2014-11-308 | 3 | DIBBS |
| 5325-01-587-2083 | 2014-05-128 | 1 | DIBBS |
| 5325-01-587-2083 | 2014-04-117 | 1 | DIBBS |
Cross Reference | NSN 5325-01-587-2083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50-005W14 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-587-2083
Technical Data | NSN 5325-01-587-2083
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | STUD,TURNLOCK FASTENER |
Restrictions/Controls & Freight Information | NSN 5325-01-587-2083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZE | New Zealand ZF ZG |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-587-2083
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
