NSN 5325-01-578-4120 235018FZ3CT, 2350-18F-Z3CT, 01-578-4120
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-578-4120 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 235018FZ3CT, 2350-18F-Z3CT, 5325-01-578-4120, 01-578-4120, 5325015784120, 015784120
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 2009 | 01-578-4120 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

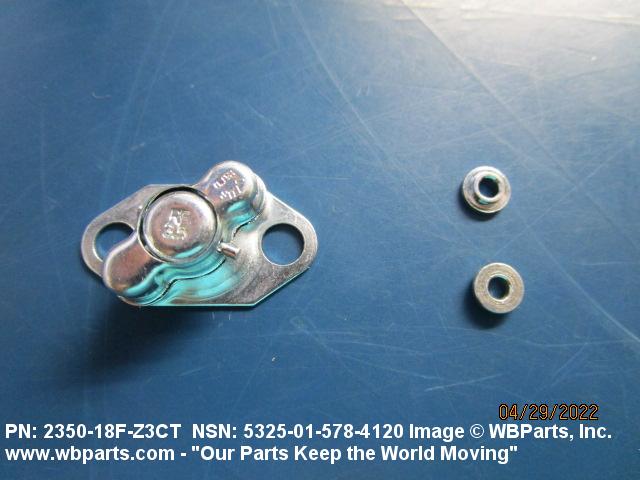

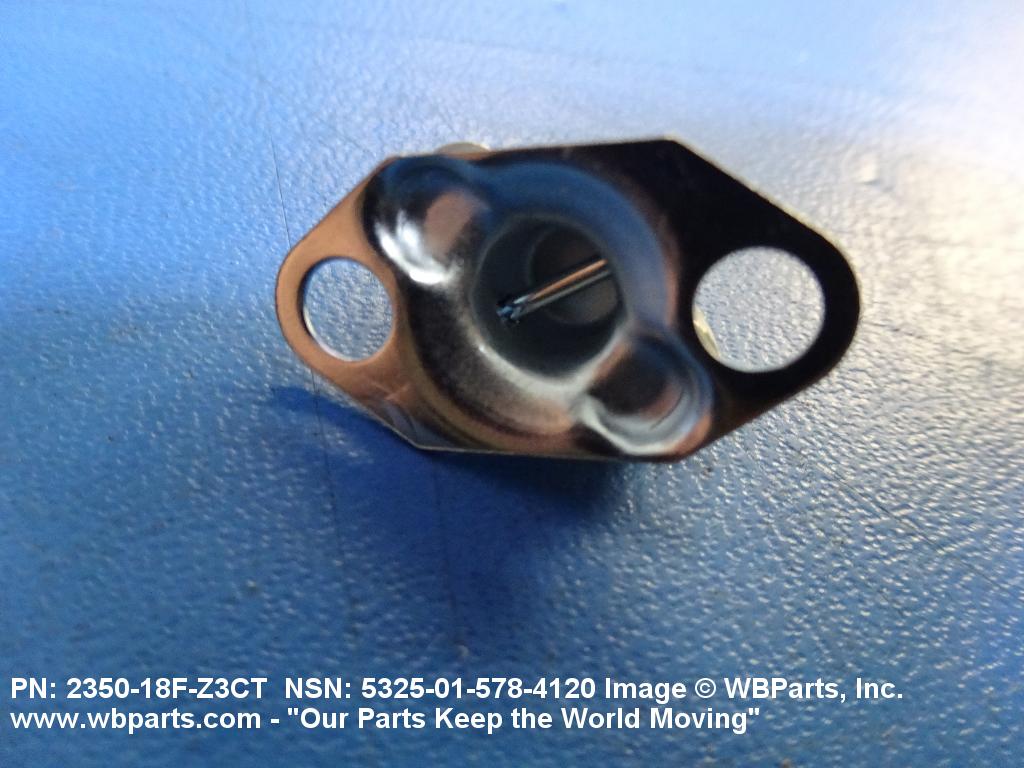

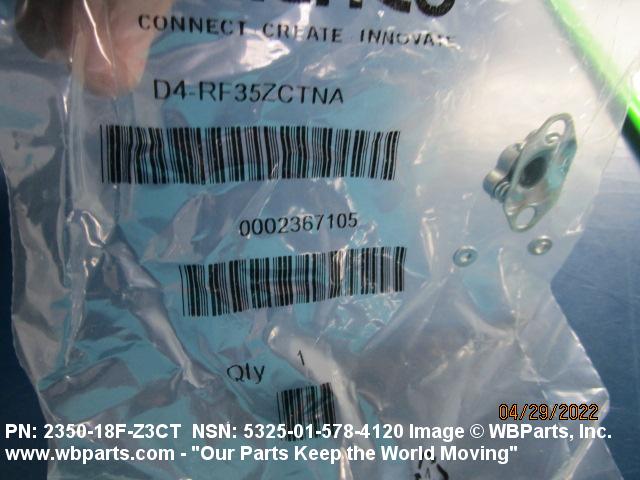

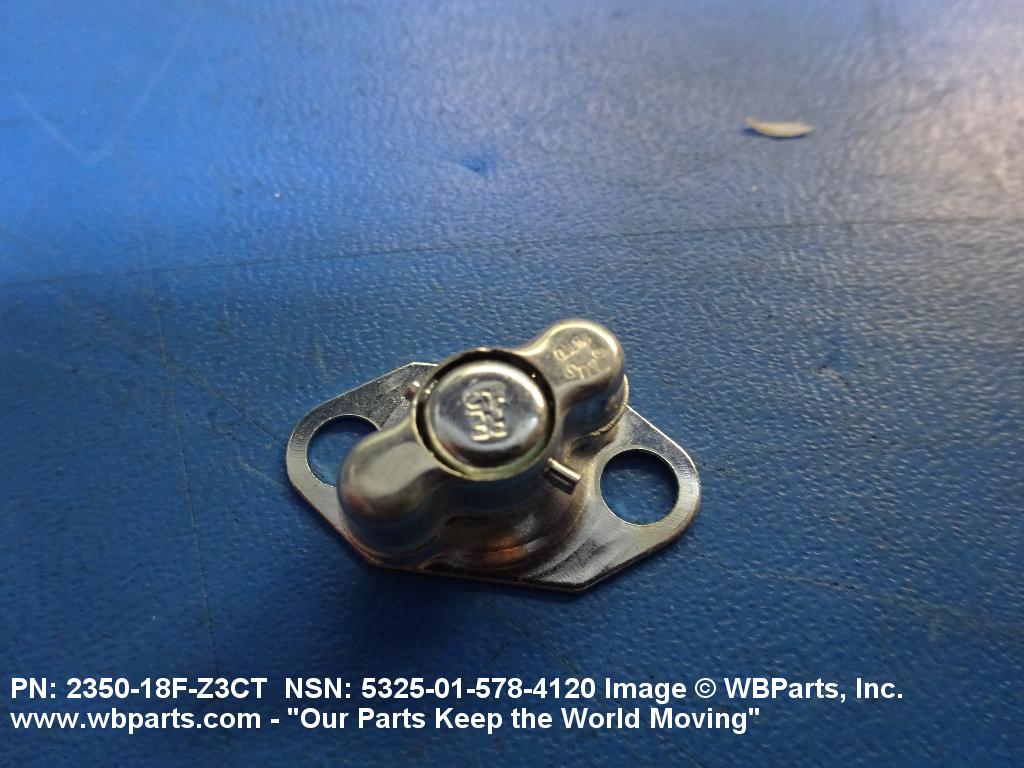

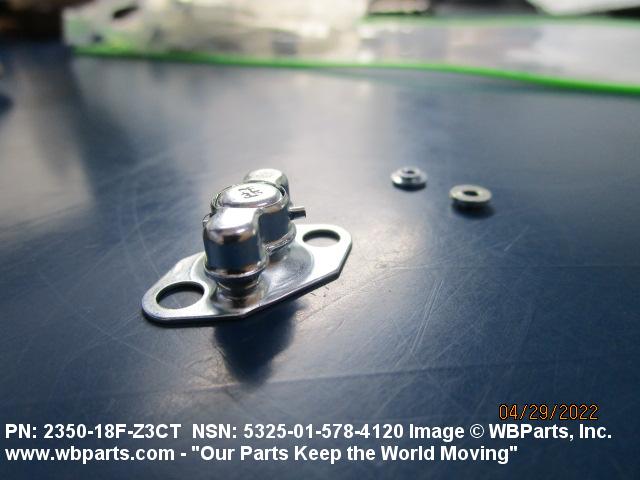

Drawings & Photos | NSN 5325-01-578-4120
Demand History | NSN 5325-01-578-4120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-578-4120 | 2023-05-144 | 5 | US |
| 235018FZ3CT | 2016-04-105 | 50 | United States |
| 2350-18F-Z3CT | 2014-06-157 | 50 | United States |
Cross Reference | NSN 5325-01-578-4120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2350-18F-Z3CT | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-578-4120
Technical Data | NSN 5325-01-578-4120
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | RECEPTACLE BASE AND SPRING CAP - STEEL, SPRING AND PIN - MUSIC WIRE |
| TURNLOCK RECEPTACLE STYLE | RECEPTACLE |

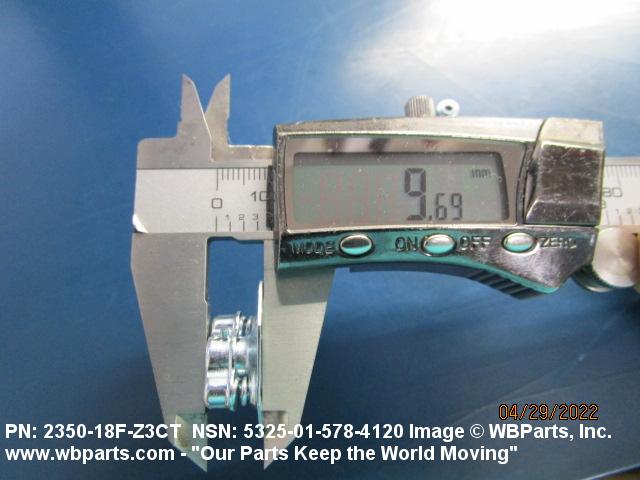

| RECEPTACLE HEIGHT | 9.8 MILLIMETERS NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SU 2300 LINE RECEPTACLES |

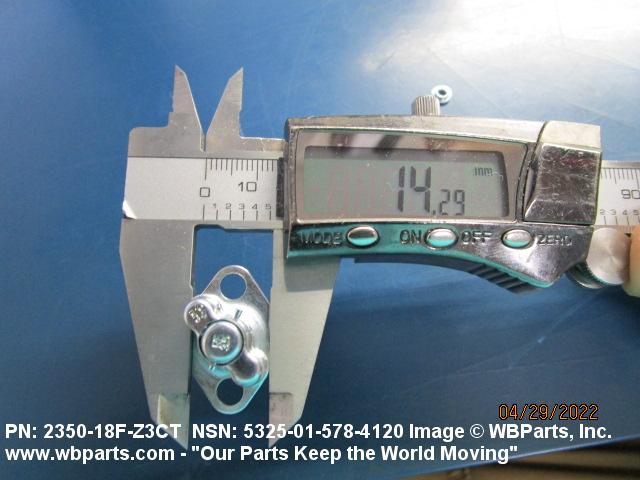

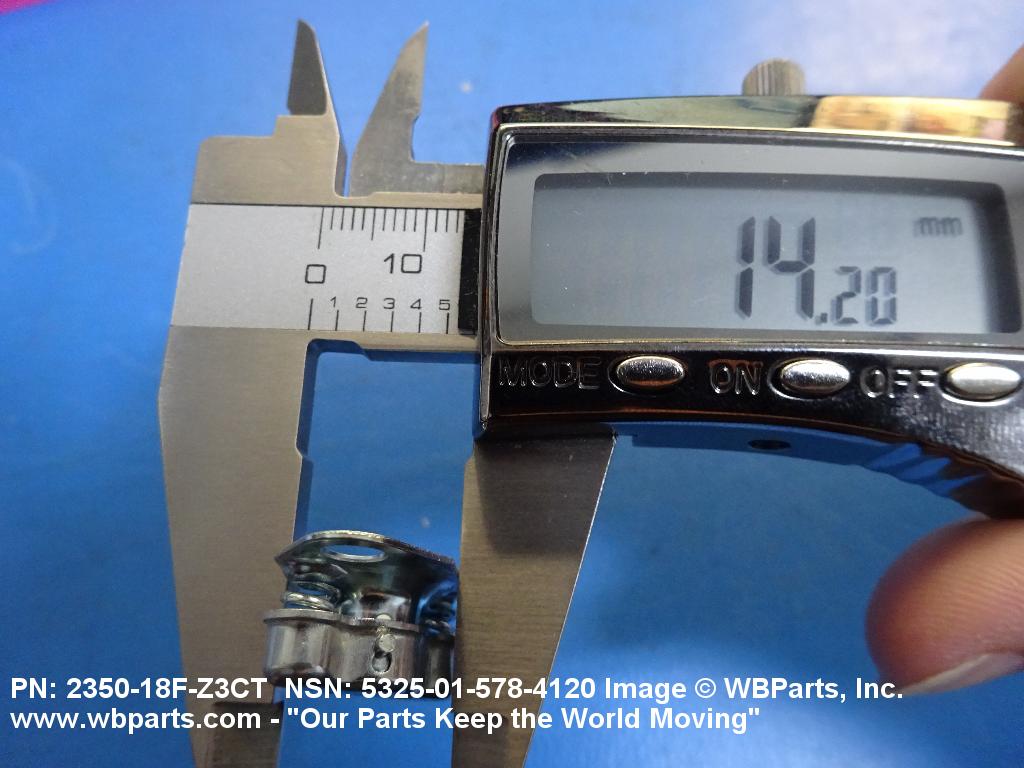

| RECEPTACLE WIDTH | 14.3 MILLIMETERS NOMINAL |

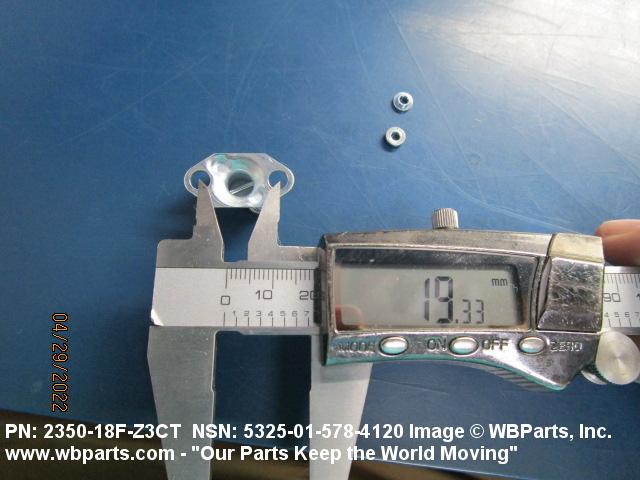

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 19.0 MILLIMETERS NOMINAL |
| SURFACE TREATMENT | ZINC OVERALL |

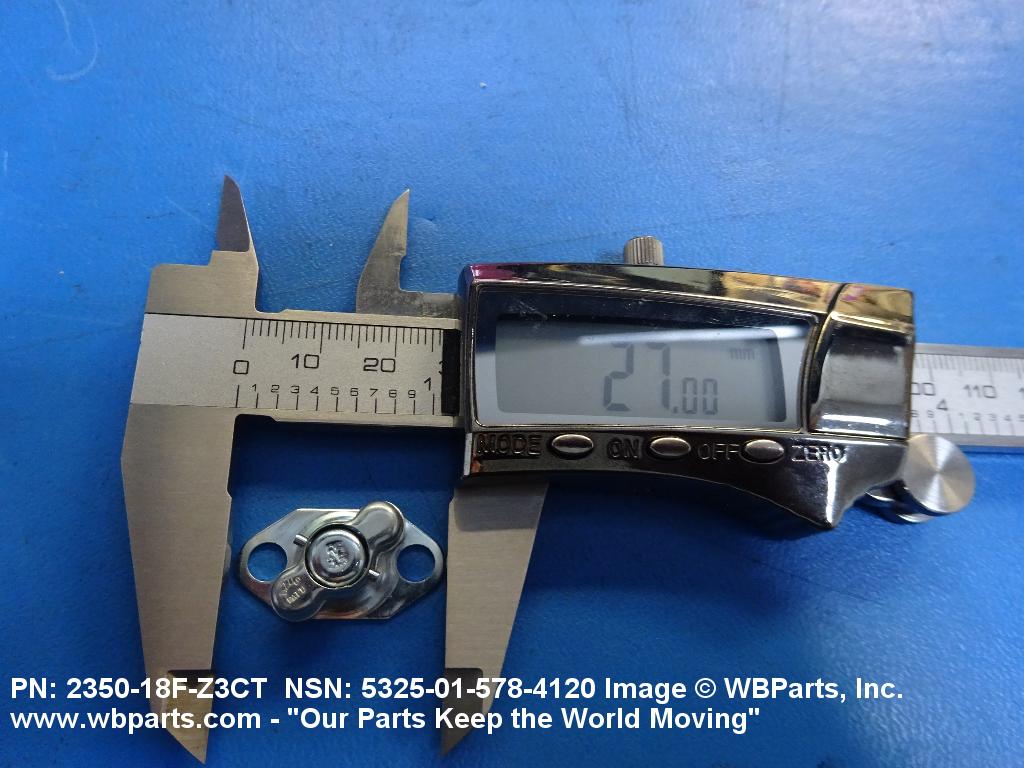

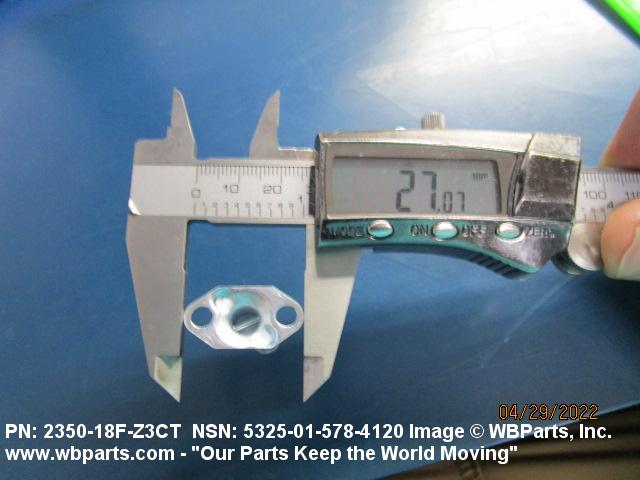

| RECEPTACLE OVERALL LENGTH | 26.9 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-578-4120
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
