NSN 5325-01-573-0453 NAS1832C3N6, 01-573-0453, 015730453
Product Details | PANEL FASTENER INSERT
5325-01-573-0453 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS1832C3N6, 5325-01-573-0453, 01-573-0453, 5325015730453, 015730453
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 2009 | 01-573-0453 | 37444 ( INSERT, PANEL FASTENER ) |

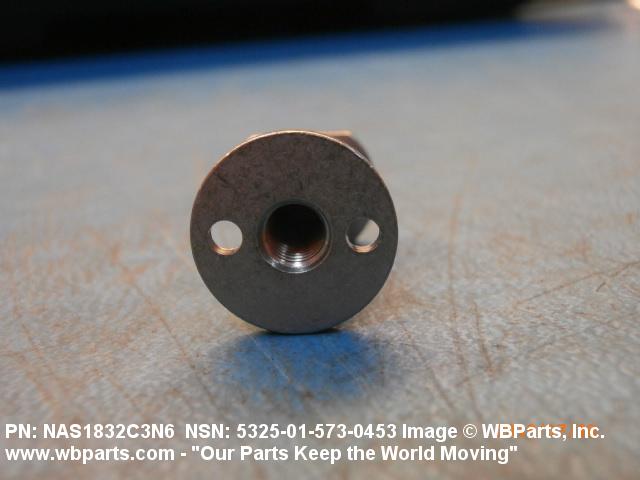

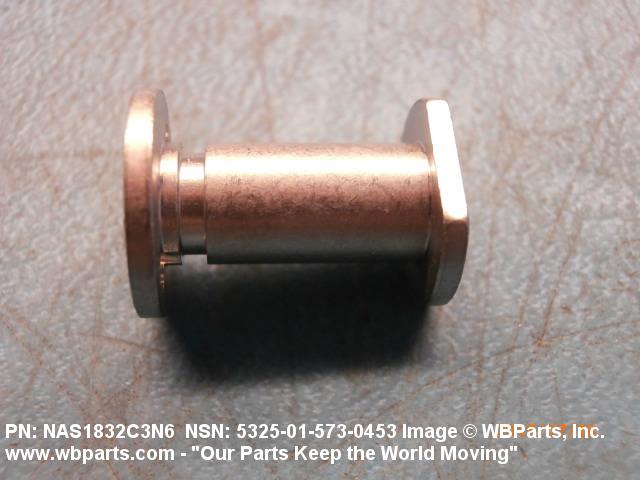

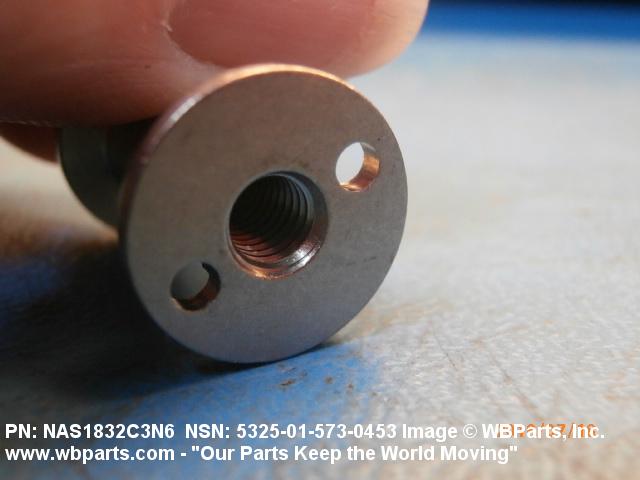

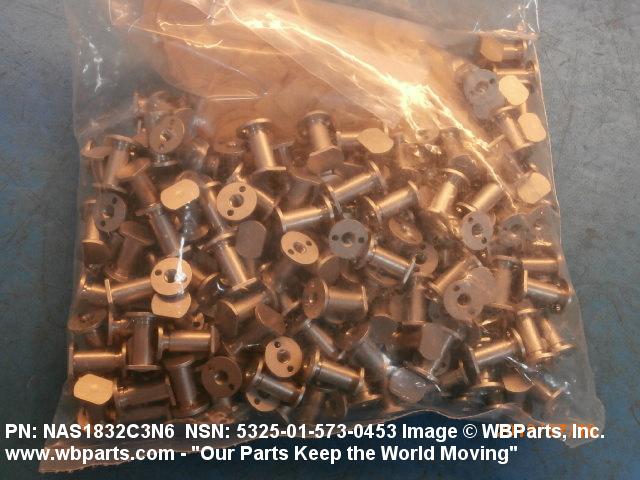

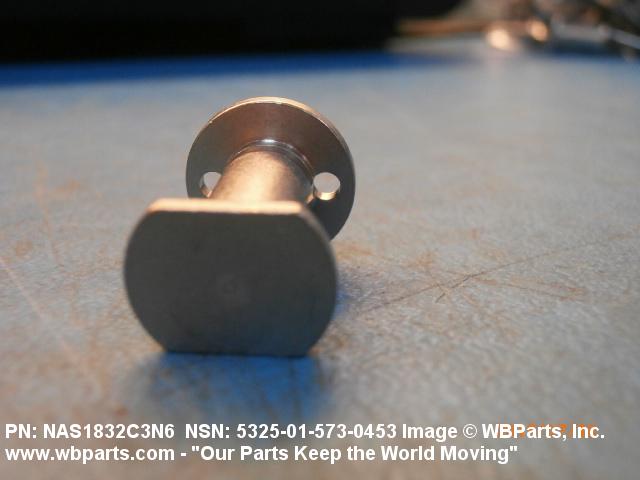

Drawings & Photos | NSN 5325-01-573-0453
Demand History | NSN 5325-01-573-0453
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1832C3N6 | 2023-08-220 | 65 | United States |
| 5325-01-573-0453 | 2018-10-289 | 973 | DIBBS |
| NAS1832C3N6 | 2018-07-198 | 300 | United States |
| 5325-01-573-0453 | 2017-04-116 | 700 | DIBBS |
| 5325-01-573-0453 | 2015-11-330 | 748 | DIBBS |
| 5325-01-573-0453 | 2011-10-298 | 700 | DIBBS |
| 5325-01-573-0453 | 2011-09-259 | 184 | DIBBS |
| 5325-01-573-0453 | 2010-03-61 | 450 | DIBBS |
| 5325-01-573-0453 | 2010-01-14 | 38 | DIBBS |
| 5325-01-573-0453 | 2010-01-07 | 32 | DIBBS |
| 5325-01-573-0453 | 2009-12-365 | 1 | DIBBS |
| 5325-01-573-0453 | 2009-12-365 | 19 | DIBBS |
Cross Reference | NSN 5325-01-573-0453
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1832C3N6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-573-0453
Related Products | NSN 5325-01-573-0453
Technical Data | NSN 5325-01-573-0453
| Characteristic | Specifications |
|---|---|

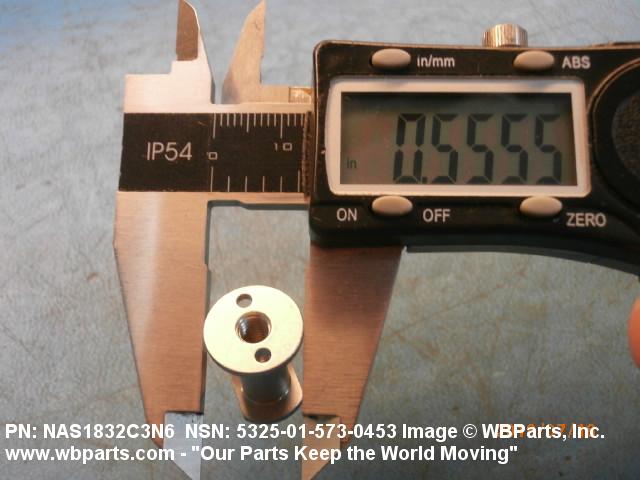

| FLANGE DIAMETER | 0.560 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| INSERT STYLE | PROTRUDING FLANGE |

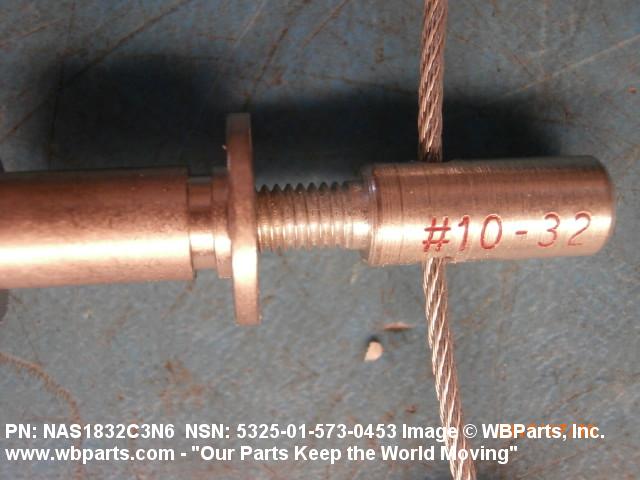

| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0 UNJF |

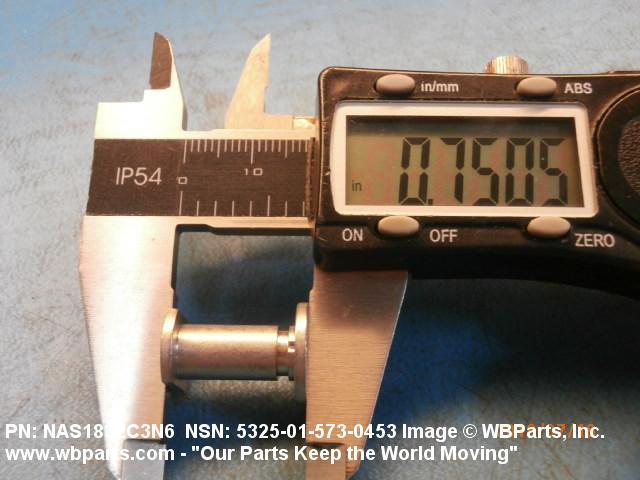

| OVERALL LENGTH | 0.370 INCHES MINIMUM |
| END ITEM IDENTIFICATION | UH-60 HELICOPTER |
| HOLE TYPE | THREADED |

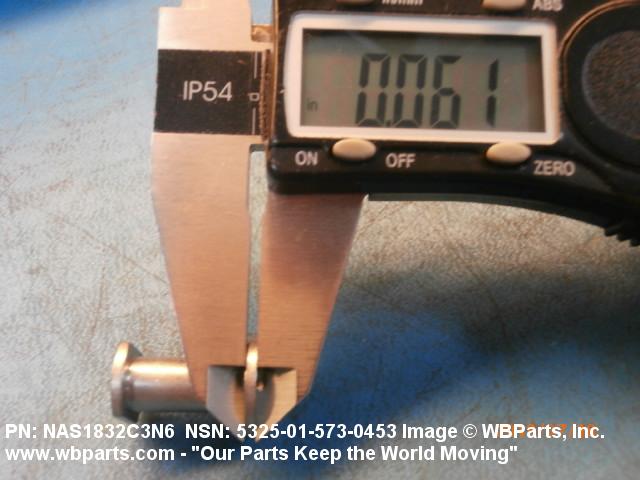

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-01-573-0453
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-573-0453
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
