Product Details | PANEL FASTENER INSERT
5325-01-541-1193 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS183308375, NAS1833-08-375, 5325-01-541-1193, 01-541-1193, 5325015411193, 015411193
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUN 2006 | 01-541-1193 | 37444 ( INSERT, PANEL FASTENER ) |

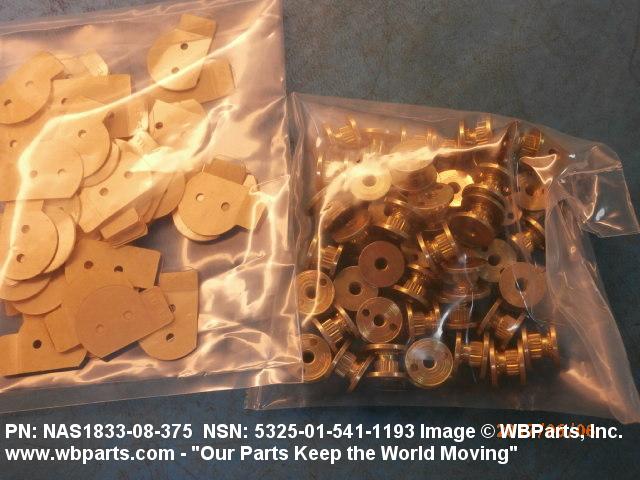

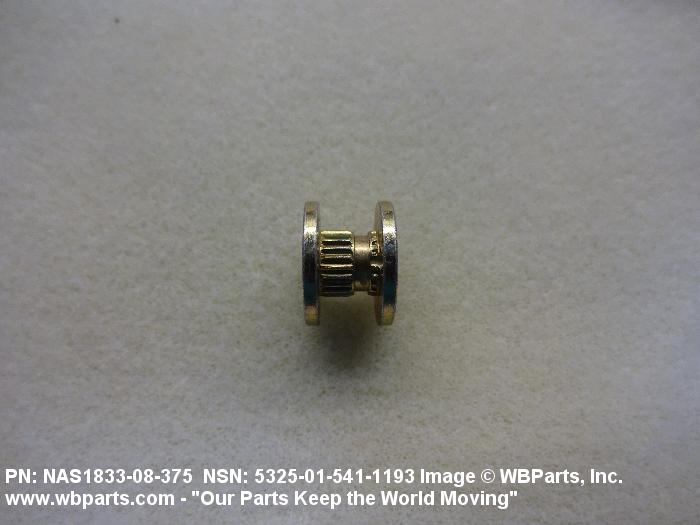

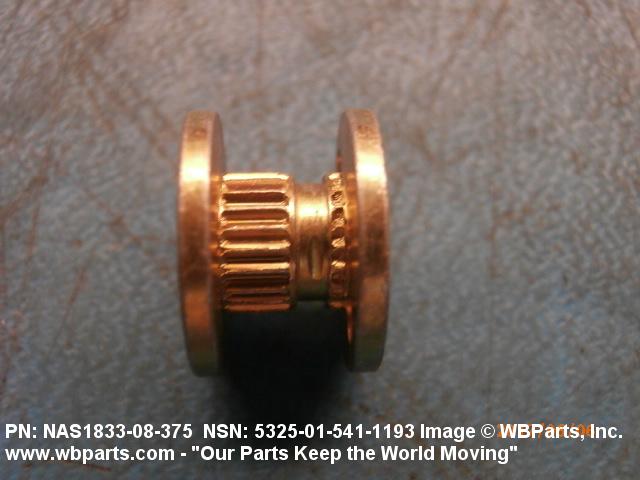

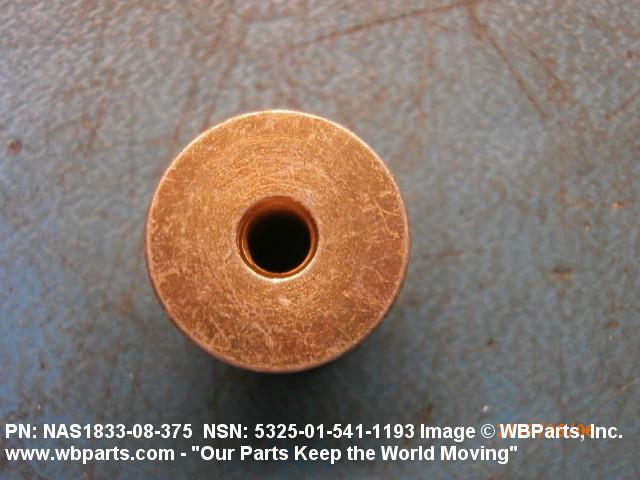

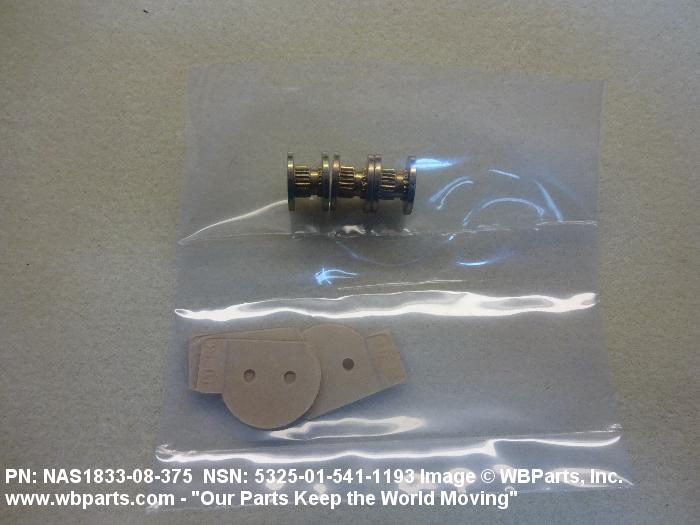

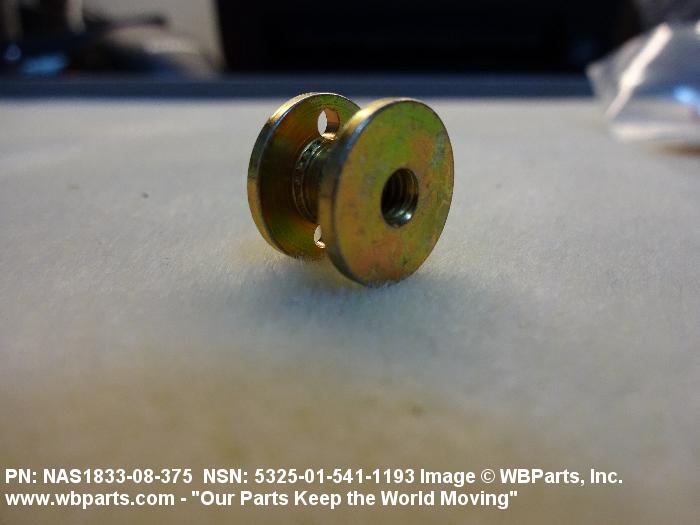

Drawings & Photos | NSN 5325-01-541-1193
Demand History | NSN 5325-01-541-1193
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS183308375 | 2023-03-65 | 100 | South Africa |
| NAS183308375 | 2023-01-16 | 20 | South Africa |
| 5325-01-541-1193 | 2021-10-278 | 100 | Canada |
| 5325-01-541-1193 | 2021-08-243 | 15 | DIBBS |
| 5325-01-541-1193 | 2017-09-261 | 10 | DIBBS |
| 5325-01-541-1193 | 2017-09-254 | 24 | DIBBS |
| 5325-01-541-1193 | 2017-07-198 | 20 | DIBBS |
| 5325-01-541-1193 | 2017-01-17 | 150 | DIBBS |
| 5325-01-541-1193 | 2016-12-355 | 76 | DIBBS |
| 5325-01-541-1193 | 2014-01-16 | 100 | DIBBS |
| 5325-01-541-1193 | 2011-05-146 | 30 | DIBBS |
| NAS183308375 | 2010-08-223 | 500 | US |
Cross Reference | NSN 5325-01-541-1193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1833-08-375 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-541-1193
Related Products | NSN 5325-01-541-1193
Technical Data | NSN 5325-01-541-1193
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A108 ASSN STD SINGLE MATERIAL RESPONSE OR A576 ASSN STD SINGLE MATERIAL RESPONSE OR FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CLASS 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| INSERT STYLE | 19 PROTRUDING FLANGE |

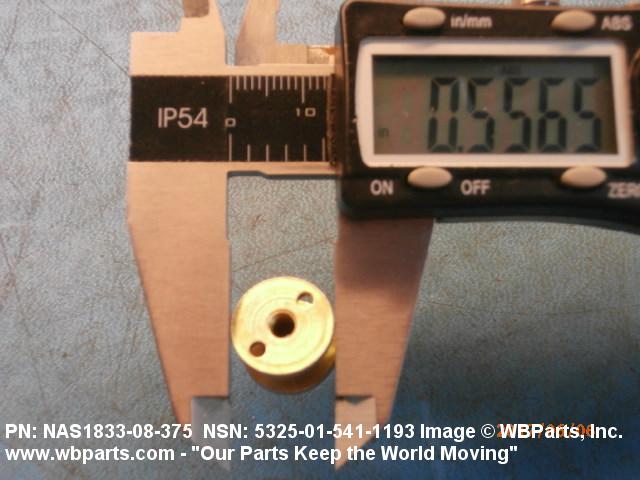

| FLANGE DIAMETER | 0.550 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |

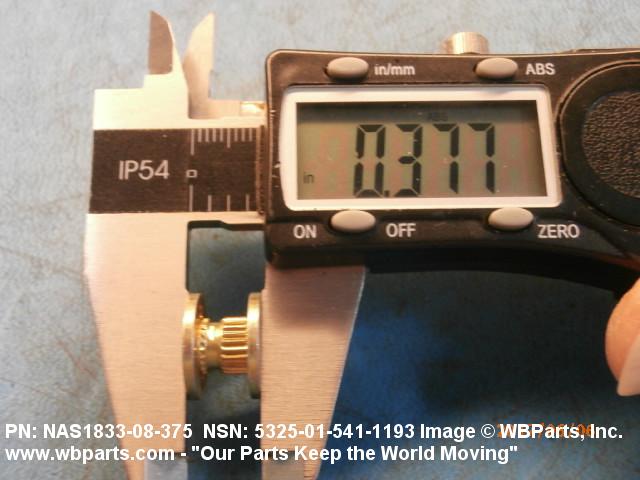

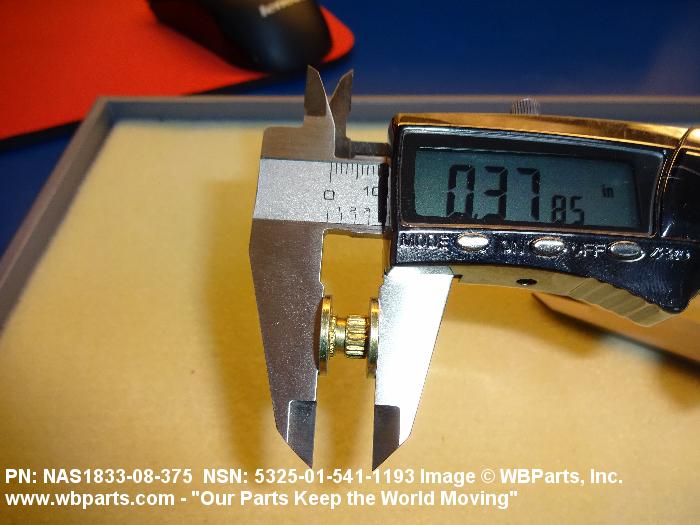

| OVERALL LENGTH | 0.375 INCHES NOMINAL |

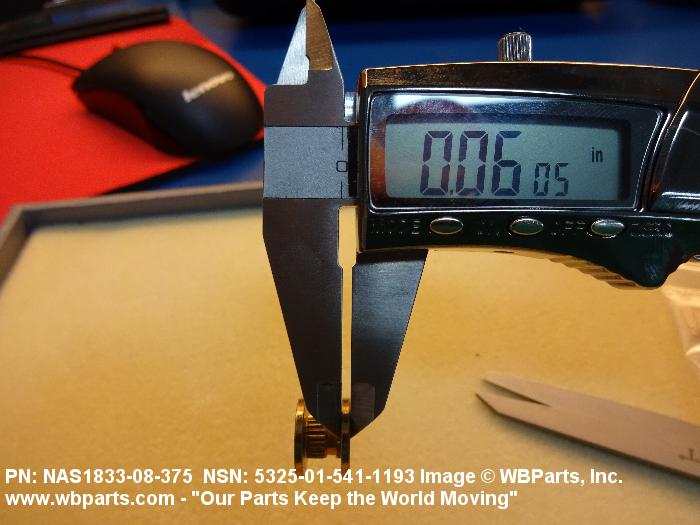

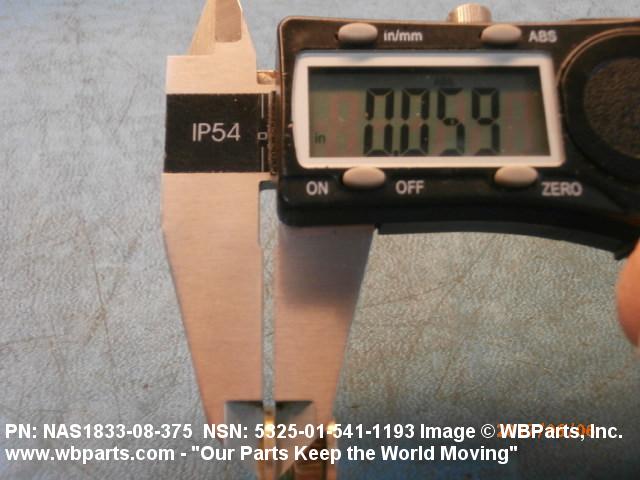

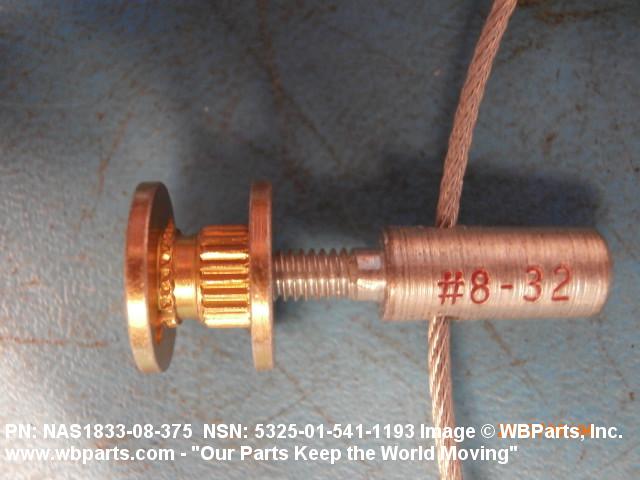

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.-32 UNJC |

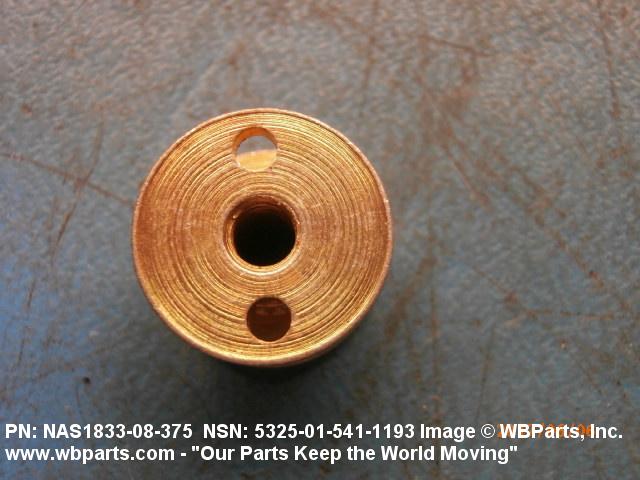

| FEATURES PROVIDED | POTTING HOLE OR POTTING SLOT |
