NSN 5325-01-540-8174 80013P4D29, 80-013-P4D2-9, 01-540-8174
Product Details | PANEL FASTENER INSERT
5325-01-540-8174 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: 80013P4D29, 80-013-P4D2-9, 5325-01-540-8174, 01-540-8174, 5325015408174, 015408174
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JUN 2006 | 01-540-8174 | 37444 ( INSERT, PANEL FASTENER ) |

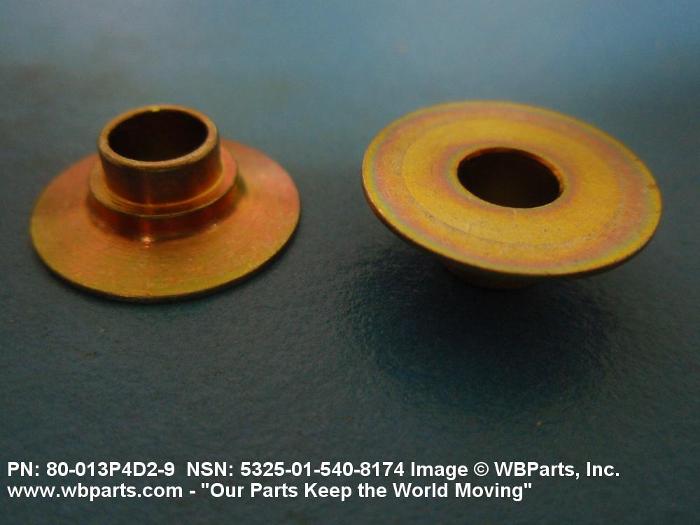

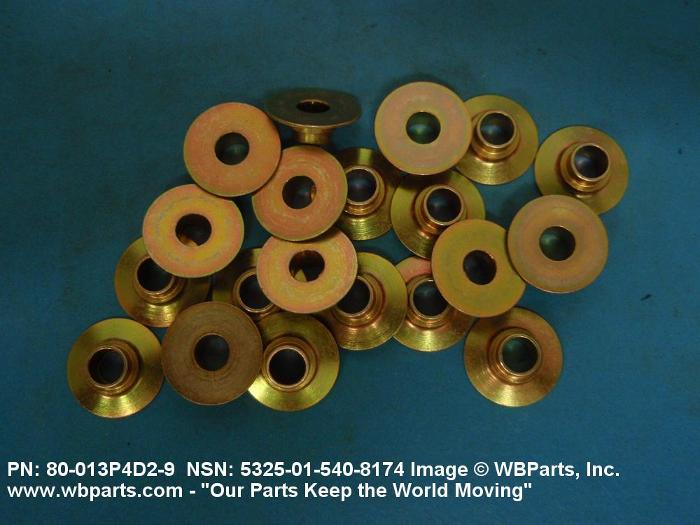

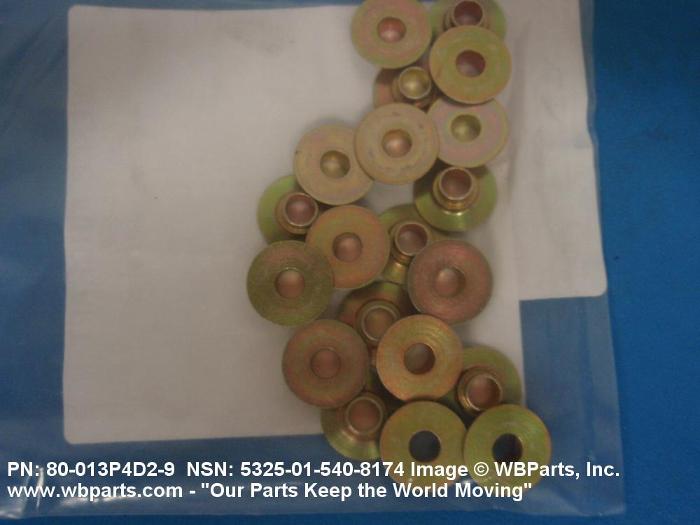

Drawings & Photos | NSN 5325-01-540-8174
Demand History | NSN 5325-01-540-8174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 80013P4D29 | 2011-02-36 | 20 | Saudi Arabia |
Cross Reference | NSN 5325-01-540-8174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80-013-P4D2-9 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-540-8174
Related Products | NSN 5325-01-540-8174
Technical Data | NSN 5325-01-540-8174
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL STEEL INSERT |
| SURFACE TREATMENT | CADMIUM OVERALL CADMIUM INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| III END ITEM IDENTIFICATION PURPO | OH-58D KIOWA WARRIOR HELICOPTER SE,ELECTRICAL |
Restrictions/Controls & Freight Information | NSN 5325-01-540-8174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-540-8174
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 3 | INSURANCE ITEMS. This code will identify items for which there may be occasional intermittent demands not sufficiently repetitive to warrant classification as regular stock items, but for which prudence requires that nominalquan tity be stocked for the reason that the essentiality of the item and the long lead time required to obtain such items by purchase would create an unacceptable situation if no stock were carried. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | M | RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
