NSN 5325-01-521-5793 NAS1836307, NAS1836-3-07, 01-521-5793
Product Details | SCREW THREAD INSERT
5325-01-521-5793 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: NAS1836307, NAS1836-3-07, 5325-01-521-5793, 01-521-5793, 5325015215793, 015215793
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 2004 | 01-521-5793 | 11444 ( INSERT, SCREW THREAD ) |

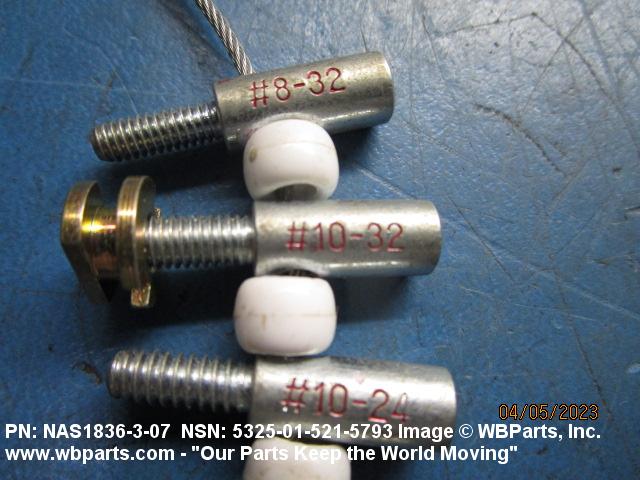

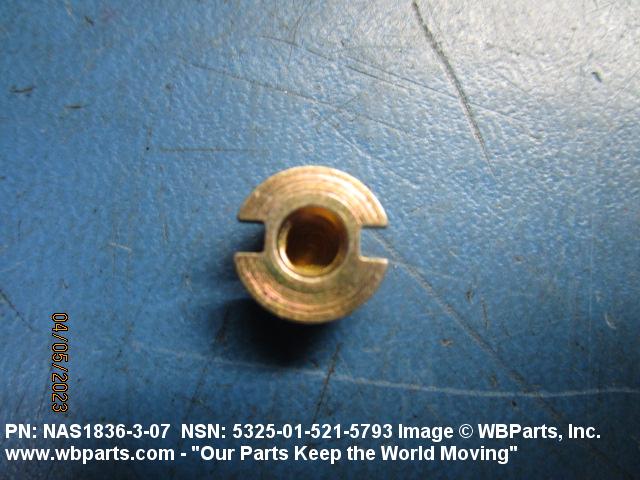

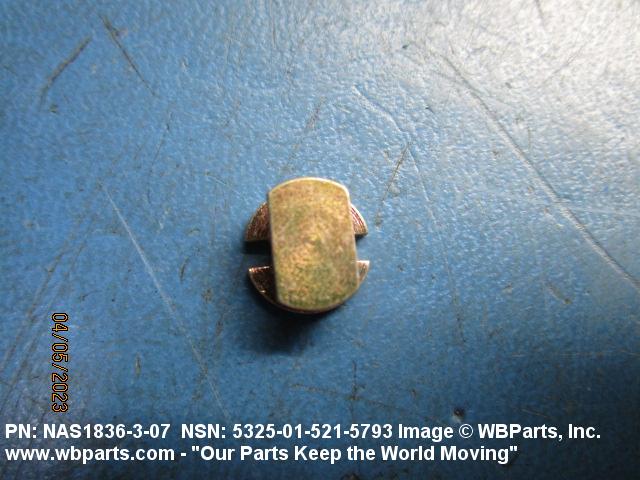

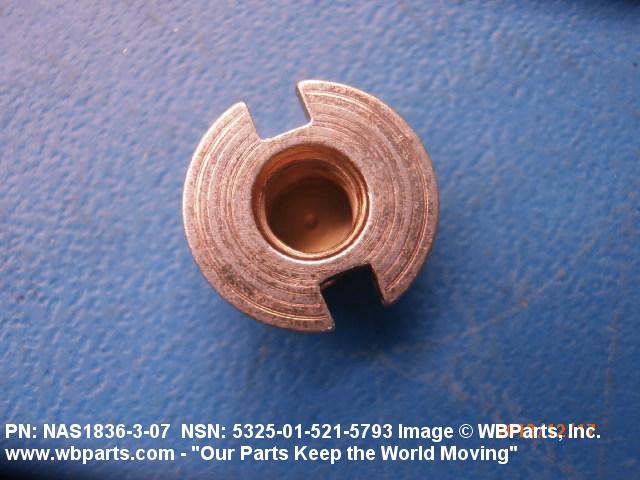

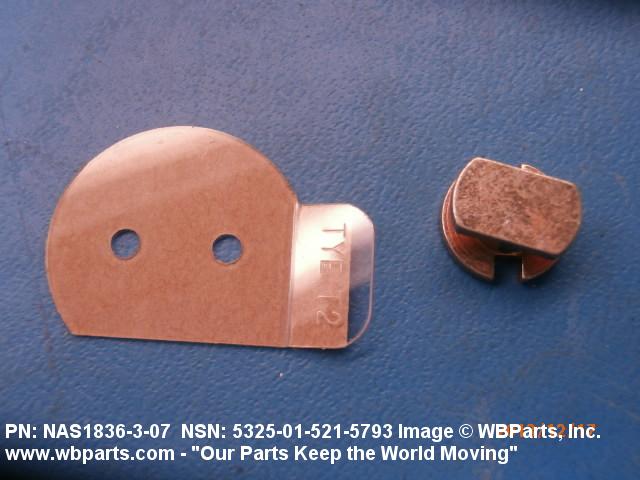

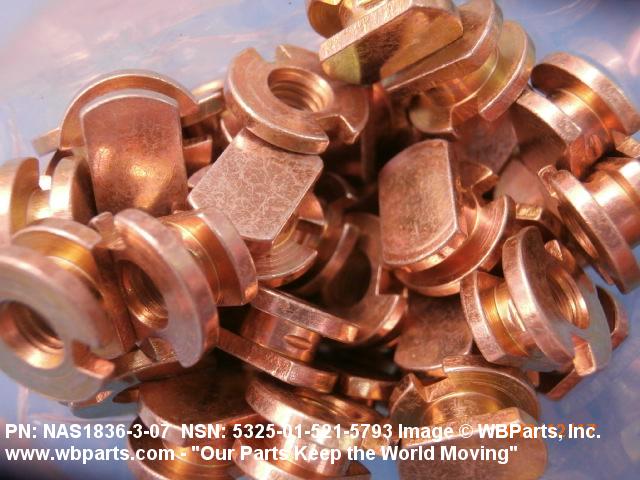

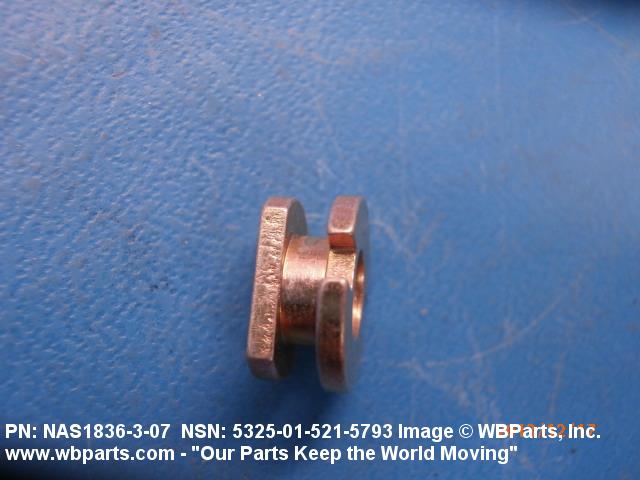

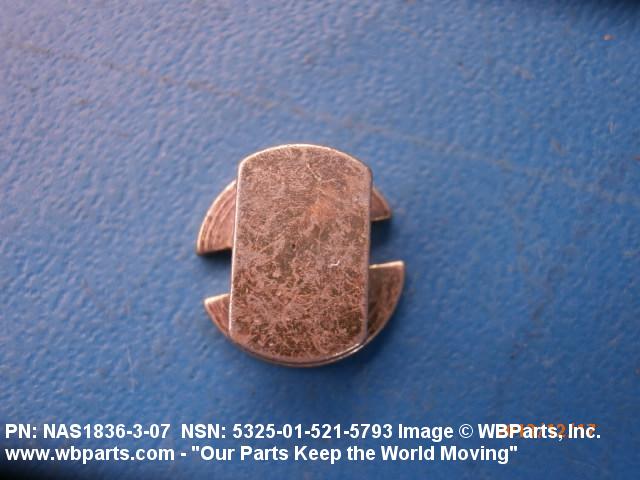

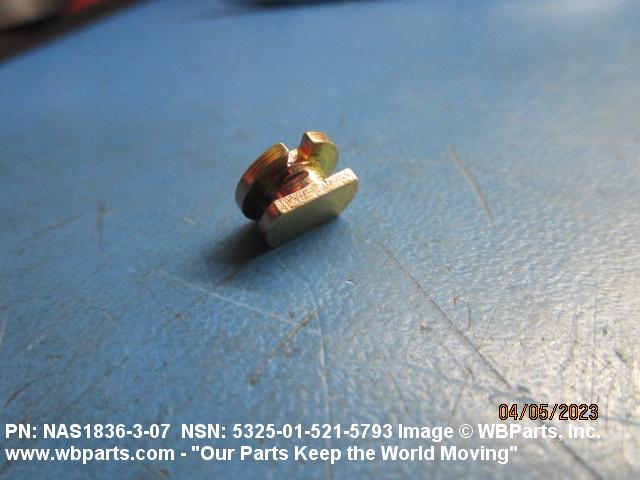

Drawings & Photos | NSN 5325-01-521-5793
Demand History | NSN 5325-01-521-5793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1836307 | 2017-04-107 | 100 | US |
| NAS1836307 | 2016-02-40 | 4 | US |
| NAS1836-3-07 | 2015-06-176 | 200 | Turkey |
| NAS1836-3-07 | 2014-11-324 | 100 | Turkey |
| 5325-01-521-5793 | 2011-08-233 | 500 | IR |
| NAS1836307 | 2010-04-96 | 500 | Switzerland |
Cross Reference | NSN 5325-01-521-5793
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1836-3-07 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-521-5793
Technical Data | NSN 5325-01-521-5793
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | H14 FLANGE |

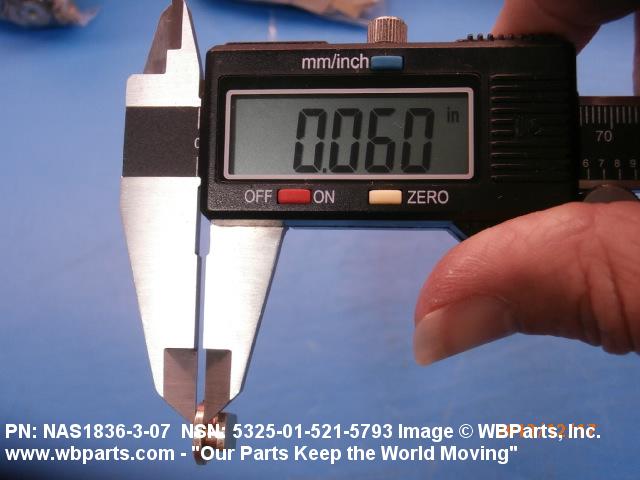

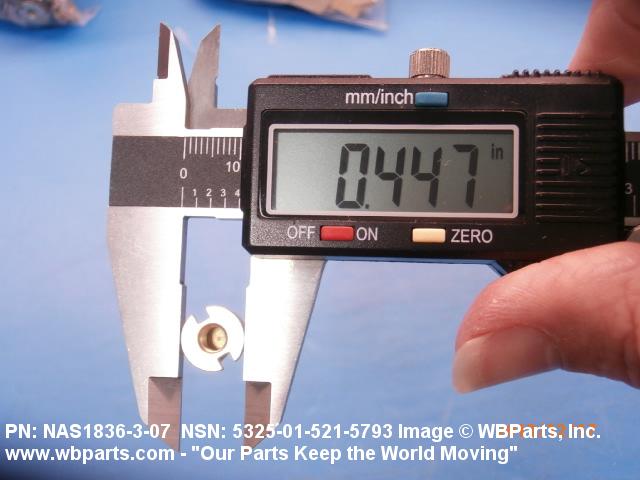

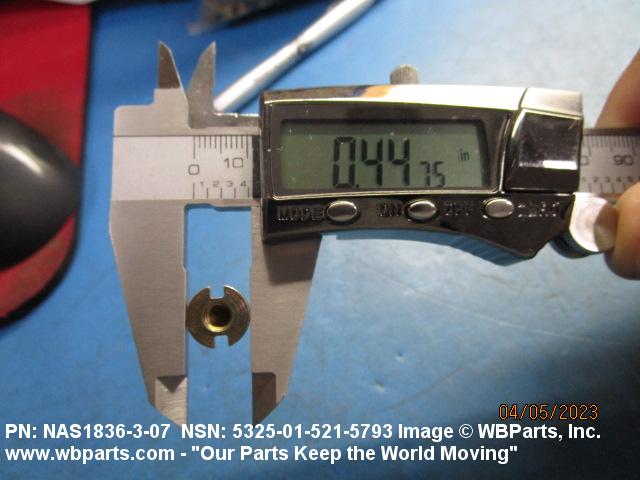

| FLANGE DIAMETER | 0.441 INCHES MINIMUM AND 0.451 INCHES MAXIMUM |

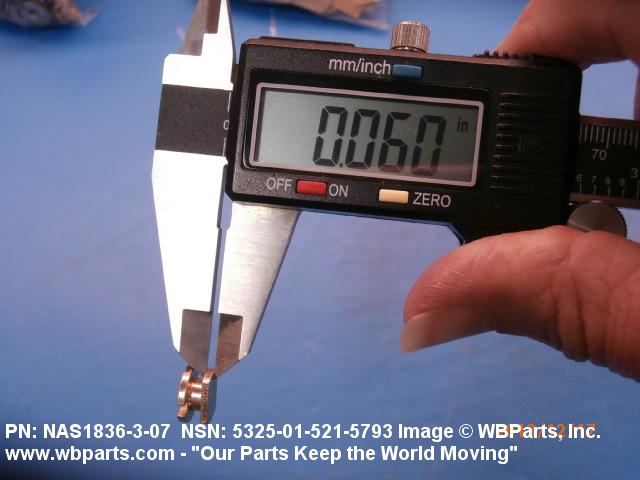

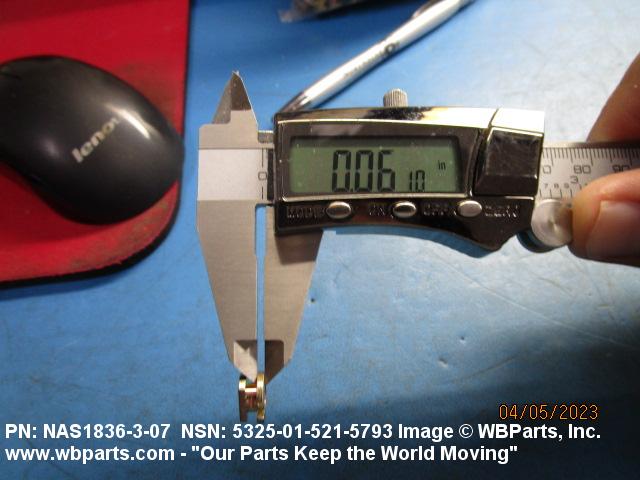

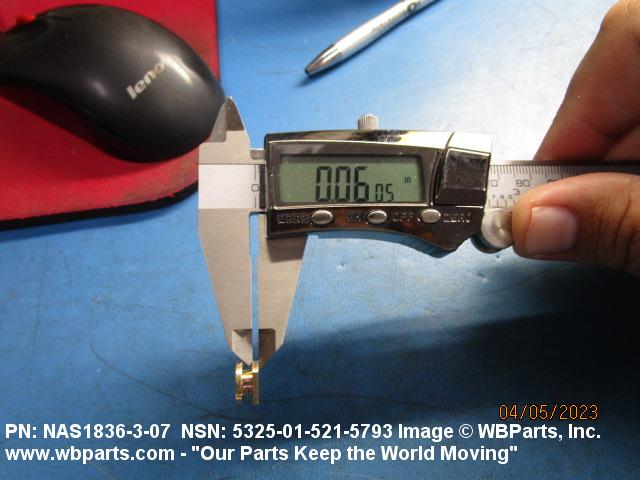

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |

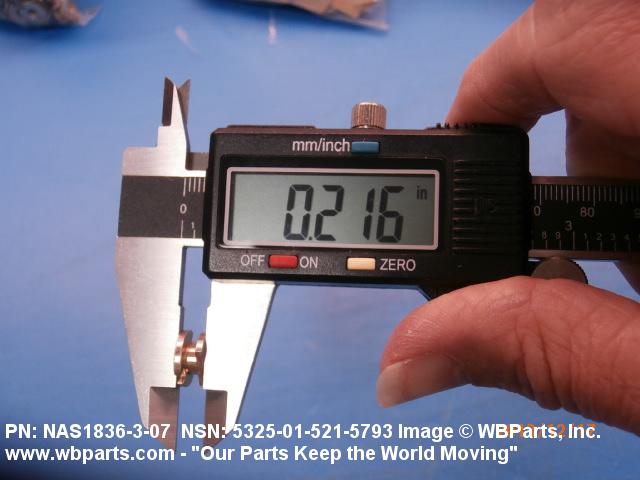

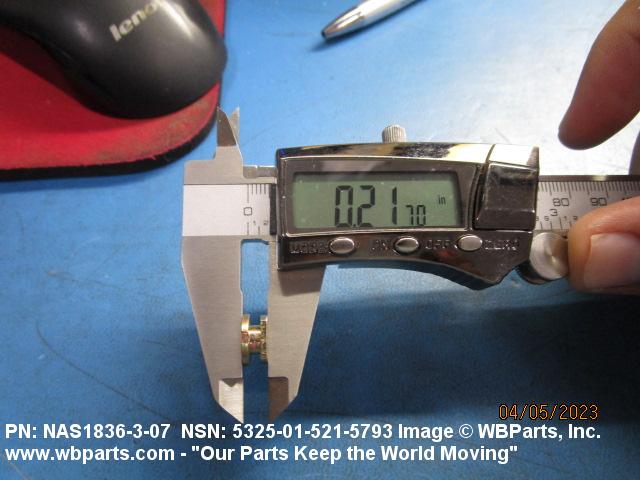

| LENGTH | 0.217 INCHES NOMINAL |
| SECOND FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| INSERT SIZE | 0.250 IN. OD |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.187 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NEW MAN MH-60 |
Restrictions/Controls & Freight Information | NSN 5325-01-521-5793
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
