NSN 5325-01-520-7832 NAS183306500, NAS1833-06-500, 01-520-7832

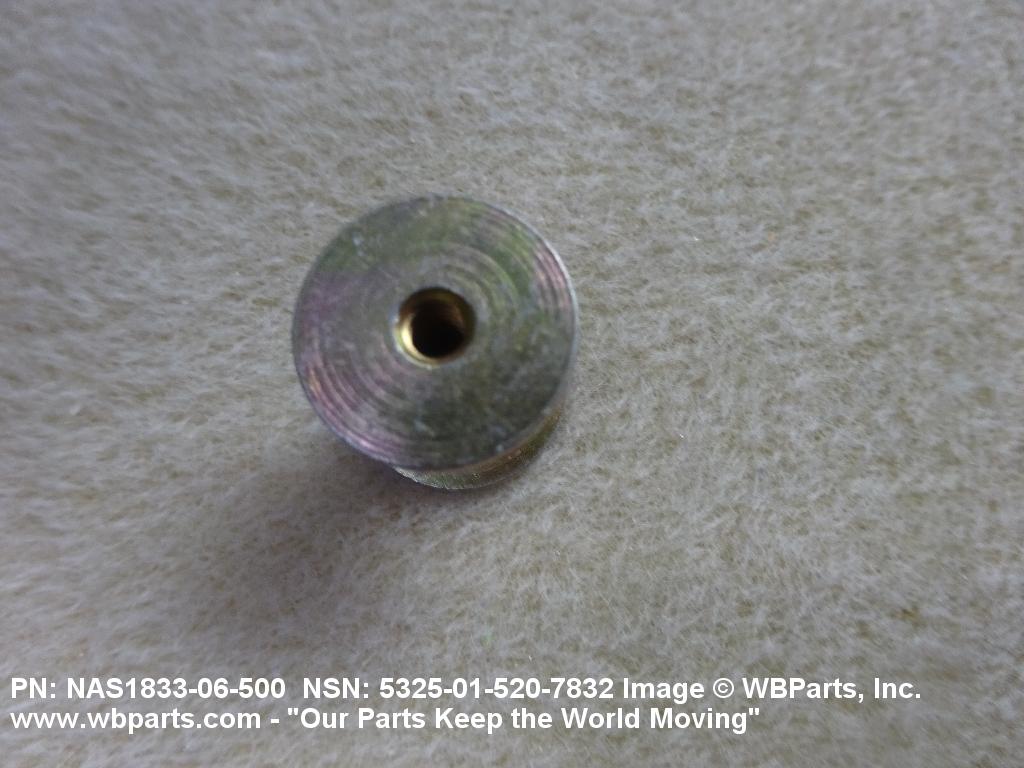

Product Details | SCREW THREAD INSERT
5325-01-520-7832 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: NAS183306500, NAS1833-06-500, 5325-01-520-7832, 01-520-7832, 5325015207832, 015207832
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAY 2004 | 01-520-7832 | 11444 ( INSERT, SCREW THREAD ) |

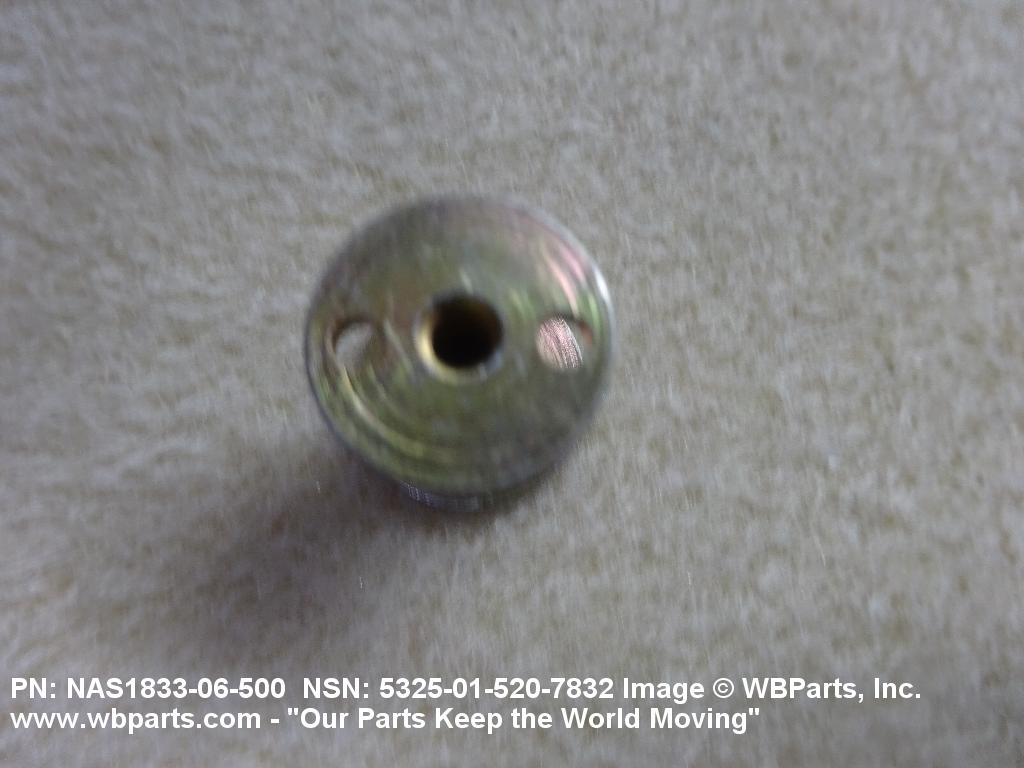

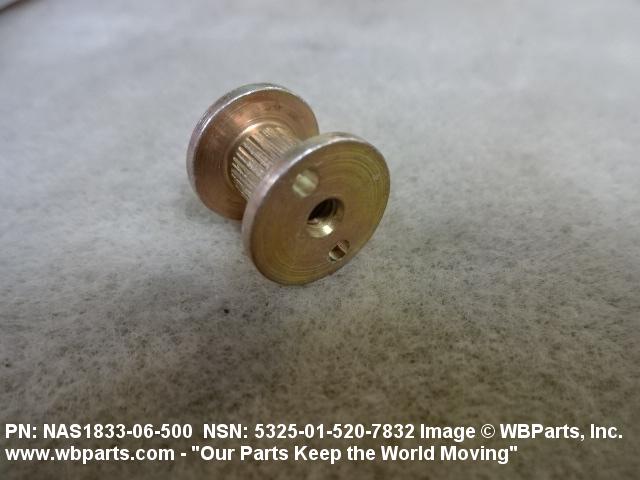

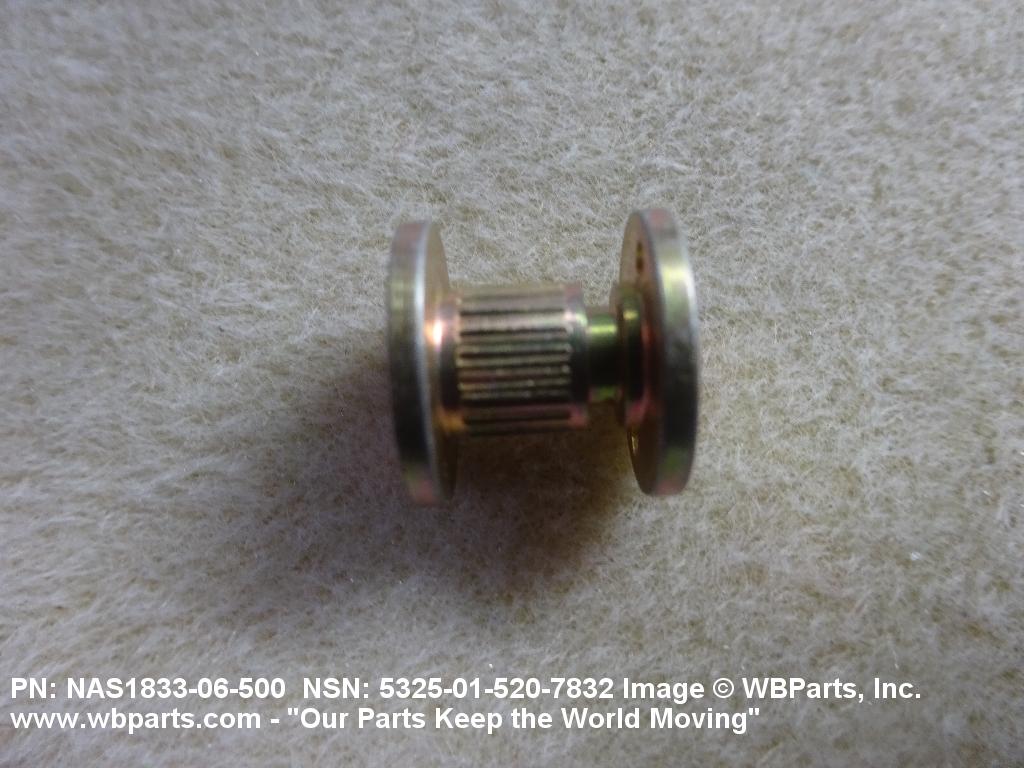

Drawings & Photos | NSN 5325-01-520-7832
Demand History | NSN 5325-01-520-7832
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-520-7832 | 2024-05-135 | 168 | DIBBS |
| NAS183306500 | 2023-09-268 | 100 | United States |
| 5325-01-520-7832 | 2019-08-219 | 53 | DIBBS |
| NAS1833-06-500 | 2014-06-157 | 50 | United States |
| 5325-01-520-7832 | 2011-08-235 | 24 | DIBBS |
| 5325-01-520-7832 | 2010-08-239 | 17 | DIBBS |
| 5325-01-520-7832 | 2008-11-313 | 10 | DIBBS |
Cross Reference | NSN 5325-01-520-7832
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1833-06-500 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-520-7832
Technical Data | NSN 5325-01-520-7832
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A108-2003 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416C FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | H14 FLANGE |

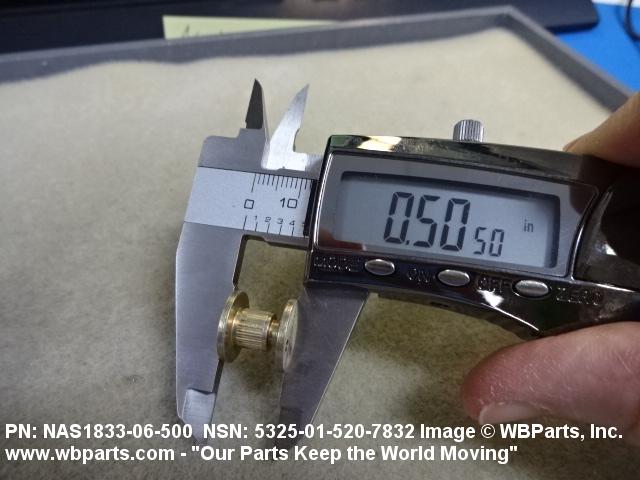

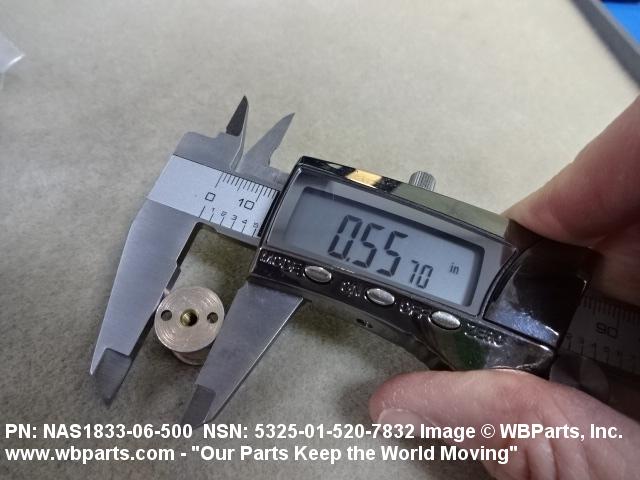

| FLANGE DIAMETER | 0.550 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |

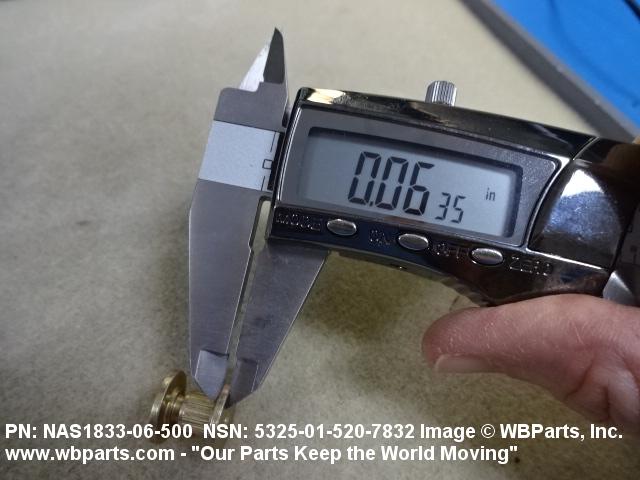

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |

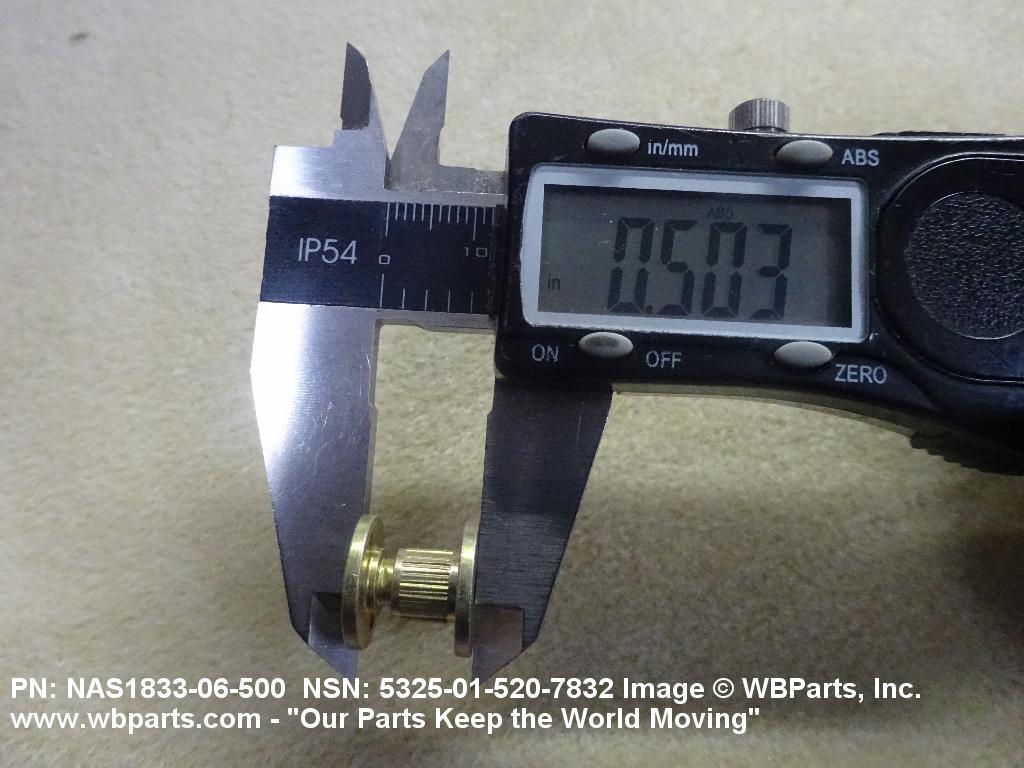

| LENGTH | 0.500 INCHES NOMINAL |
| SECOND FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| INSERT SIZE | 0.300 IN OD |
| MOUNTING FACILITY QUANTITY | 2 |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NEW MAN MH-60 |
