Product Details | PANEL FASTENER INSERT
5325-01-518-0149 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: 5793294 FIND 24, 5793294FIND24, 63938361, 6393836-1, 5325-01-518-0149, 01-518-0149, 5325015180149, 015180149
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 FEB 2004 | 01-518-0149 | 37444 ( INSERT, PANEL FASTENER ) |
Drawings & Photos | NSN 5325-01-518-0149
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-518-0149
Technical Data | NSN 5325-01-518-0149
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM UNS R50400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-9046 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-9047, COMP TI-6AL-4V, CONDITION A MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | SAE-AMS-2488, TYPE II ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

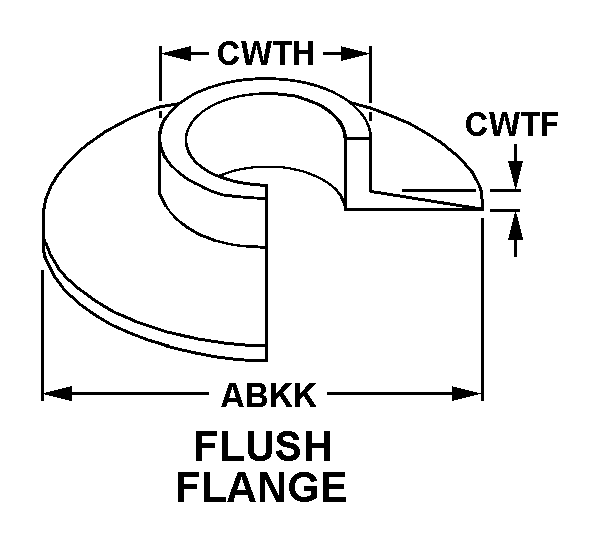

| INSERT STYLE | 5 FLUSH FLANGE |
| FLANGE DIAMETER | 2.000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.153 INCHES NOMINAL |
| BODY DIAMETER | 1.678 INCHES MINIMUM AND 1.680 INCHES MAXIMUM |
| HOLE TYPE | PLAIN |
| HOLE DIAMETER | 1.678 INCHES MINIMUM AND 1.680 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | TC CONSOLE AS; W/S: SEAL DELIVERY SYSTEM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | INSERT, CLEVIS |
