NSN 5325-01-416-5250 26S9861DA, 26S98-6-1DA, 01-416-5250
Product Details | TURNLOCK FASTENER STUD
5325-01-416-5250 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: 26S9861DA, 26S98-6-1DA, 5325-01-416-5250, 01-416-5250, 5325014165250, 014165250
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUL 1995 | 01-416-5250 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-416-5250
Demand History | NSN 5325-01-416-5250
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-416-5250 | 2017-09-255 | 113 | DIBBS |
| 5325-01-416-5250 | 2016-03-68 | 93 | DIBBS |
| 5325-01-416-5250 | 2015-03-61 | 236 | DIBBS |
| 5325-01-416-5250 | 2015-02-50 | 236 | DIBBS |
| 5325-01-416-5250 | 2008-07-183 | 337 | DIBBS |
Cross Reference | NSN 5325-01-416-5250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26S98-6-1DA | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-416-5250
Related Products | NSN 5325-01-416-5250
Technical Data | NSN 5325-01-416-5250
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BARREL |
| SURFACE TREATMENT | ZINC BARREL |

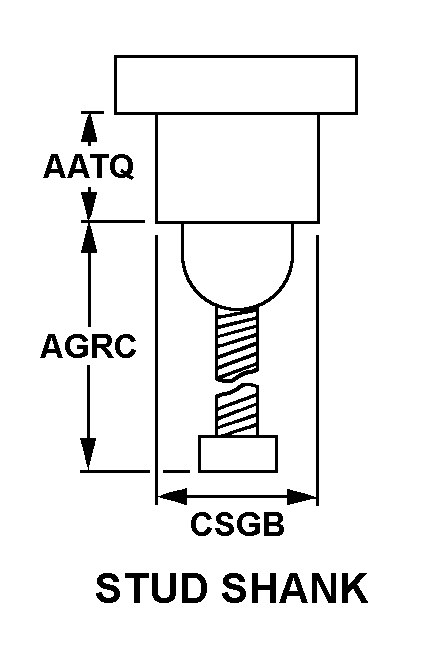

| TURNLOCK STUD SHANK STYLE | 12 STUD SHANK |
| GRIP LENGTH | 0.490 INCHES NOMINAL |
| EXTENSION LENGTH | 0.820 INCHES MINIMUM AND 0.860 INCHES MAXIMUM |
| STUD SHANK MAJOR DIAMETER | 0.305 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |

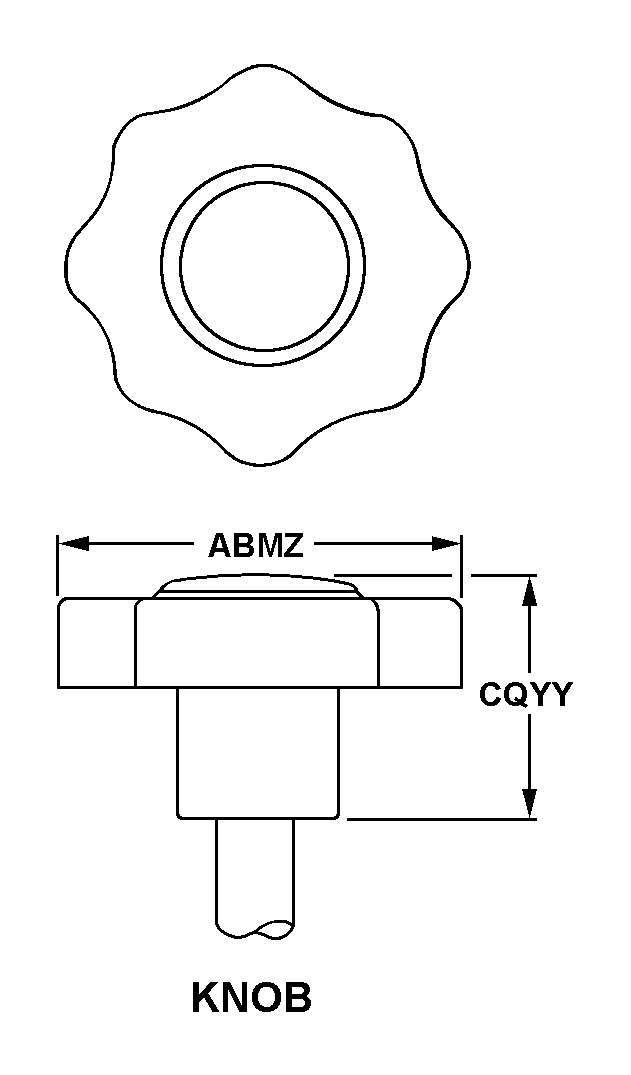

| TURNLOCK STUD HEAD STYLE | 31 KNOB |
