Product Details | TURNLOCK FASTENER RECEPTACLE

5325-01-380-8000 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: SL5330, SL5-330, 1219L5330Z3CT, 1219-L5330-Z3CT , 1219L5330Z3Y, 1219-L5330-Z3Y, 5325-01-380-8000, 01-380-8000, 5325013808000, 013808000

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 28 SEP 1993 01-380-8000

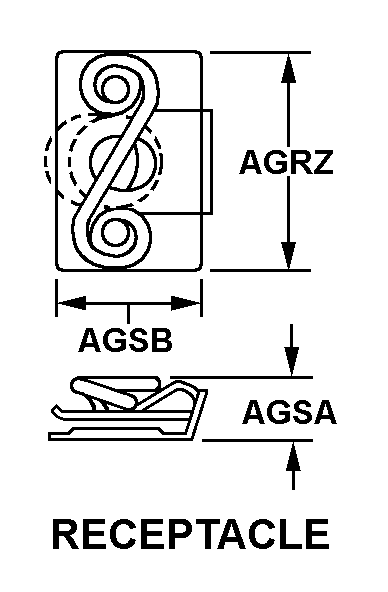

Drawings & Photos | NSN 5325-01-380-8000


Demand History | NSN 5325-01-380-8000

Part Number Request Date QTY Origin
1219-L5330-Z3CT 2021-08-230 1282 DIBBS
1219-L5330-Z3CT 2020-10-281 770 DIBBS
1219-L5330-Z3CT 2020-04-107 320 DIBBS
1219-L5330-Z3CT 2020-04-99 320 DIBBS
5325-01-380-8000 2012-11-333 4207 DIBBS
5325-01-380-8000 2012-09-263 5410 DIBBS
5325-01-380-8000 2012-07-206 1971 DIBBS
5325-01-380-8000 2012-06-181 1964 DIBBS
5325-01-380-8000 2012-03-90 1685 DIBBS
1219L5330Z3Y 2012-03-81 500 US
5325-01-380-8000 2012-01-12 1000 US
5325-01-380-8000 2011-07-211 1254 DIBBS
1219L5330Z3Y 2010-04-91 86 US
SL5330 2008-03-69 25 US

Cross Reference | NSN 5325-01-380-8000

Part Number Cage Code Manufacturer
1219-L5330-Z3CT 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
1219-L5330-Z3Y 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
SL5-330 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-380-8000

Technical Data | NSN 5325-01-380-8000

Characteristic Specifications
MATERIAL STEEL EJECTOR SPRING STEEL RECEPTACLE PLATE
SURFACE TREATMENT ZINC AND CHROMATE OVERALL
TURNLOCK RECEPTACLE STYLE 44 RECEPTACLE
RECEPTACLE OVERALL LENGTH 1.500 INCHES NOMINAL
RECEPTACLE HEIGHT 0.780 INCHES NOMINAL
RECEPTACLE WIDTH 1.040 INCHES NOMINAL
MOUNTING STYLE 2 PLAIN W/MOUNTING HOLE
TURNLOCK MOUNTING HOLE DIAMETER 0.703 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5325-01-380-8000

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-01-380-8000

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code6Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
