NSN 5325-01-365-1305 03A282454P, 03A282-4-5-4P, 198012454P
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-365-1305 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 03A282454P, 03A282-4-5-4P, 198012454P, 198012-4-5-4P, 5325-01-365-1305, 01-365-1305, 5325013651305, 013651305
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 OCT 1992 | 01-365-1305 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-365-1305
Demand History | NSN 5325-01-365-1305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-365-1305 | 2014-06-177 | 14 | DIBBS |
| 5325-01-365-1305 | 2013-07-184 | 50 | DIBBS |
| 5325-01-365-1305 | 2012-11-310 | 105 | DIBBS |
| 5325-01-365-1305 | 2012-09-261 | 40 | DIBBS |
| 5325-01-365-1305 | 2012-04-103 | 10 | DIBBS |
| 5325-01-365-1305 | 2012-03-70 | 10 | DIBBS |
Cross Reference | NSN 5325-01-365-1305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A282-4-5-4P | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A282-4-5-4P | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 198012-4-5-4P | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 198012-4-5-4P | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-365-1305
Related Products | NSN 5325-01-365-1305
Technical Data | NSN 5325-01-365-1305
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 BARREL IRON ALLOY 660 RETAINER IRON ALLOY 660 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5532 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE BARREL AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE RETAINER AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5532 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE STUD |

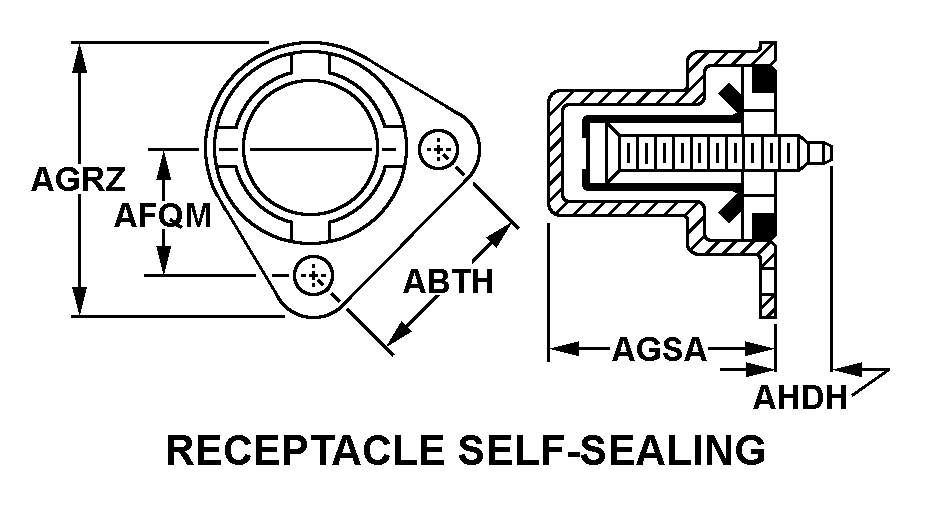

| TURNLOCK RECEPTACLE STYLE | 53 RECEPTACLE SELF SEALING |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | ANY ACCEPTABLE |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 0.825 INCHES MAXIMUM |
| RECEPTACLE HEIGHT | 0.712 INCHES MAXIMUM |
| STUD PROTRUSION LENGTH | 0.250 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | STUD SILVER |
Restrictions/Controls & Freight Information | NSN 5325-01-365-1305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094560 | FASTENERS BOX/PAIL/TUB NOI STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
