NSN 5325-01-357-6273 NAS1836C306, NAS1836C3-06, 01-357-6273
Product Details | PANEL FASTENER INSERT

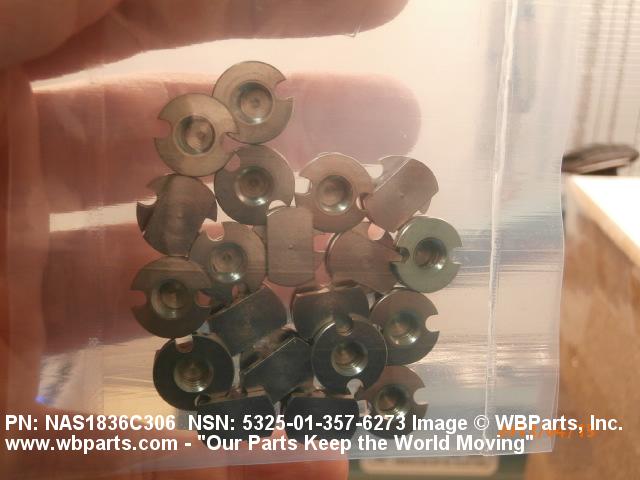

5325-01-357-6273 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS1836C306, NAS1836C3-06, 5325-01-357-6273, 01-357-6273, 5325013576273, 013576273
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1992 | 01-357-6273 | 37444 ( INSERT, PANEL FASTENER ) |

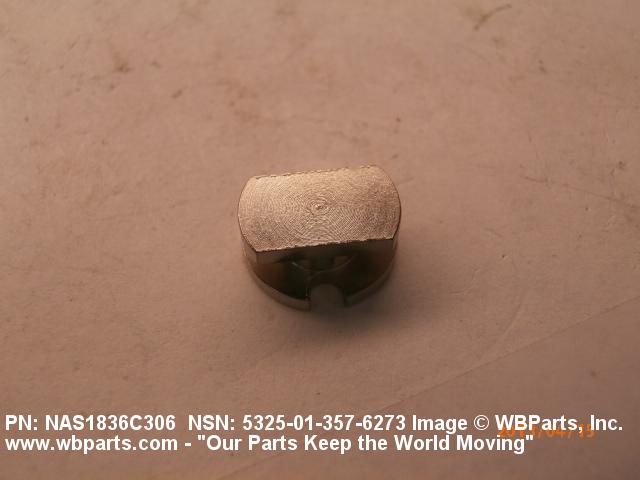

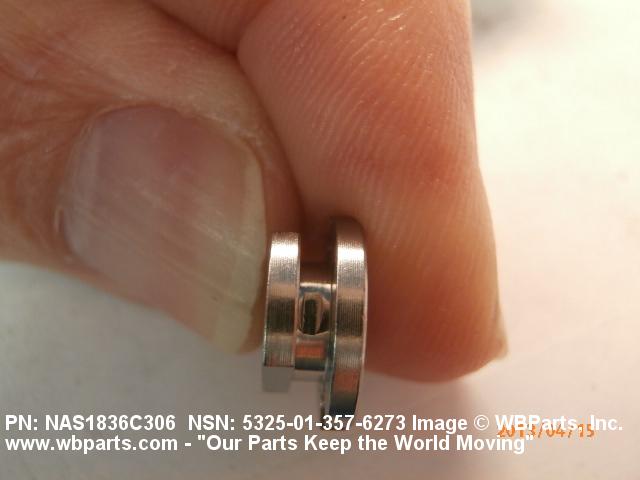

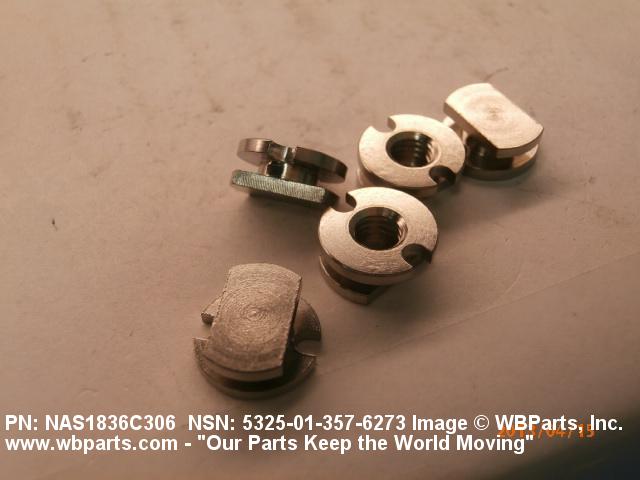

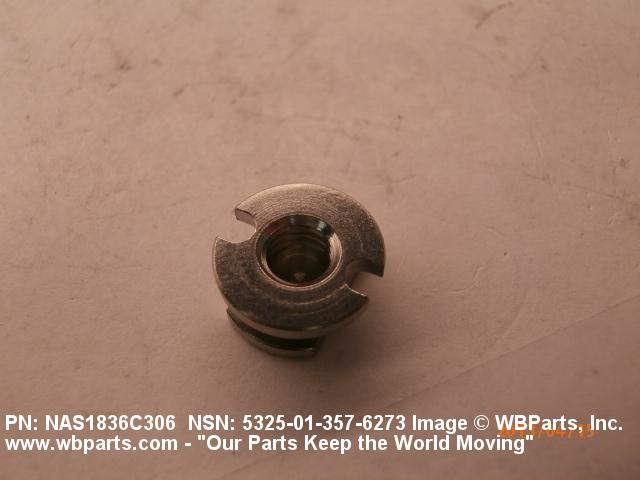

Drawings & Photos | NSN 5325-01-357-6273
Demand History | NSN 5325-01-357-6273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1836C306 | 2013-04-94 | 20 | United States |
| NAS1836C306 | 2013-04-94 | 100 | United States |
Cross Reference | NSN 5325-01-357-6273
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1836C3-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-357-6273
Related Products | NSN 5325-01-357-6273
Technical Data | NSN 5325-01-357-6273
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| INSERT STYLE | 15 PROTRUDING FLANGE |

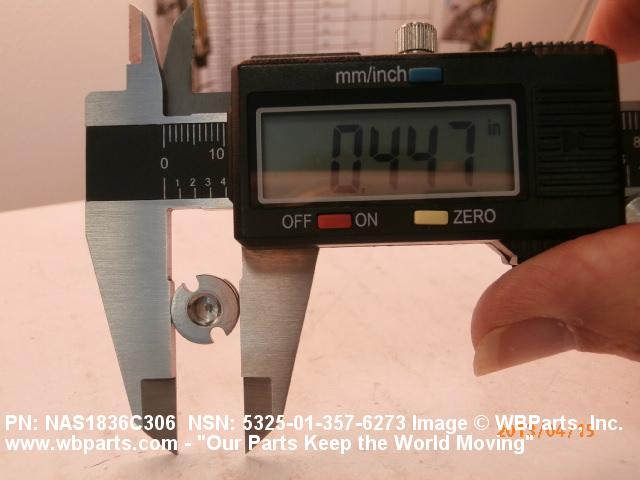

| FLANGE DIAMETER | 0.441 INCHES MINIMUM AND 0.451 INCHES MAXIMUM |

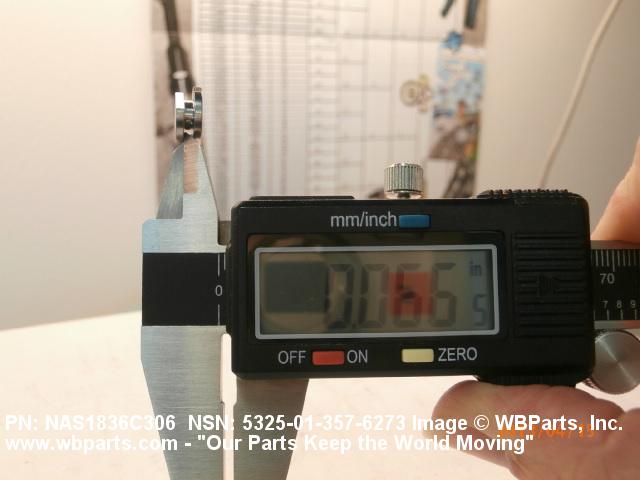

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |

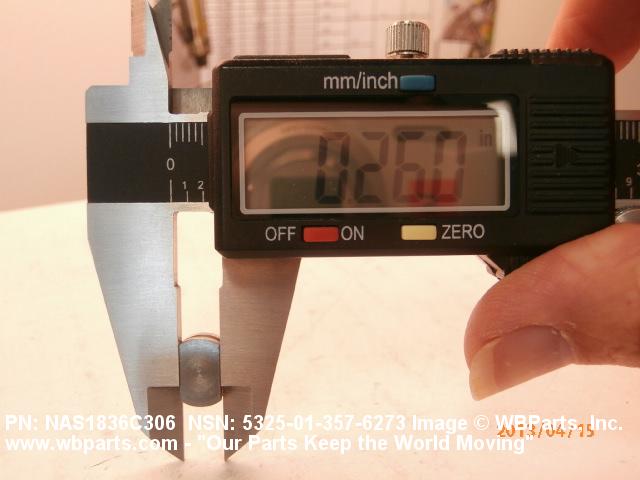

| SLEEVE DIAMETER | 0.260 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNJF |
| SPECIAL FEATURES | PIN OVERALL LENGTH IS 0.187 INCH NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1836 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
