NSN 5325-01-306-1638 NAS1836312, NAS1836-3-12, 01-306-1638
Product Details | PANEL FASTENER INSERT
5325-01-306-1638 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS1836312, NAS1836-3-12, 5325-01-306-1638, 01-306-1638, 5325013061638, 013061638
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 AUG 1989 | 01-306-1638 | 37444 ( INSERT, PANEL FASTENER ) |

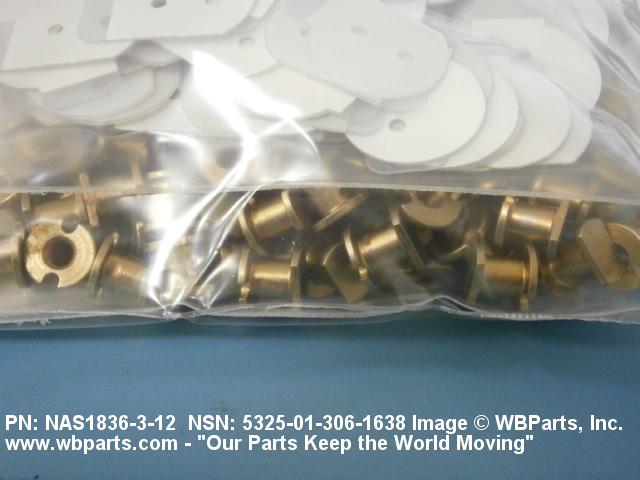

Drawings & Photos | NSN 5325-01-306-1638
Demand History | NSN 5325-01-306-1638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-306-1638 | 2025-04-98 | 1050 | DIBBS |
| NAS1836312 | 2016-02-43 | 8 | United States |
| 5325-01-306-1638 | 2015-12-350 | 758 | DIBBS |
| 5325-01-306-1638 | 2014-02-48 | 232 | DIBBS |
| 5325-01-306-1638 | 2012-06-153 | 420 | DIBBS |
| NAS1836312 | 2012-01-24 | 50 | us |
| 5325-01-306-1638 | 2011-11-320 | 60 | DIBBS |
| 5325-01-306-1638 | 2011-09-251 | 60 | DIBBS |
| 5325-01-306-1638 | 2011-01-20 | 10 | UK |
| 5325-01-306-1638 | 2010-02-47 | 600 | Canada |
| NAS1836312 | 2009-04-118 | 10000 | US |
| 5325-01-306-1638 | 2008-12-352 | 60 | DIBBS |
| 5325-01-306-1638 | 2008-05-127 | 60 | DIBBS |
| NAS1836312 | 2008-02-37 | 1000 | United States |
| 5325-01-306-1638 | 2007-11-322 | 200 | France |
Cross Reference | NSN 5325-01-306-1638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1836-3-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-306-1638
Related Products | NSN 5325-01-306-1638
Technical Data | NSN 5325-01-306-1638
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

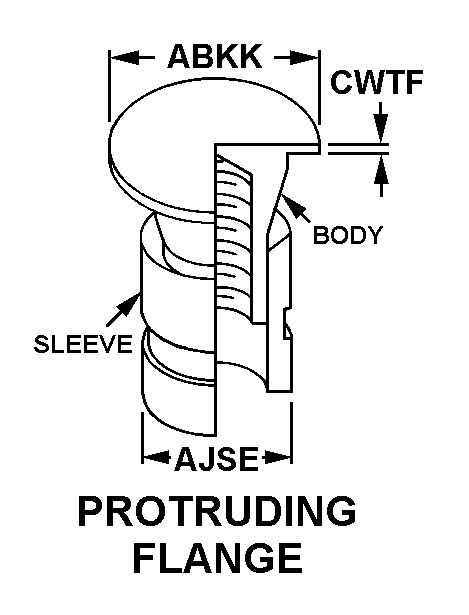

| INSERT STYLE | 15 PROTRUDING FLANGE |
| FLANGE DIAMETER | 0.441 INCHES MINIMUM AND 0.451 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| SLEEVE DIAMETER | 0.260 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNJF |
| FEATURES PROVIDED | POTTING HOLE OR POTTING SLOT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1836 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5325-01-306-1638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
